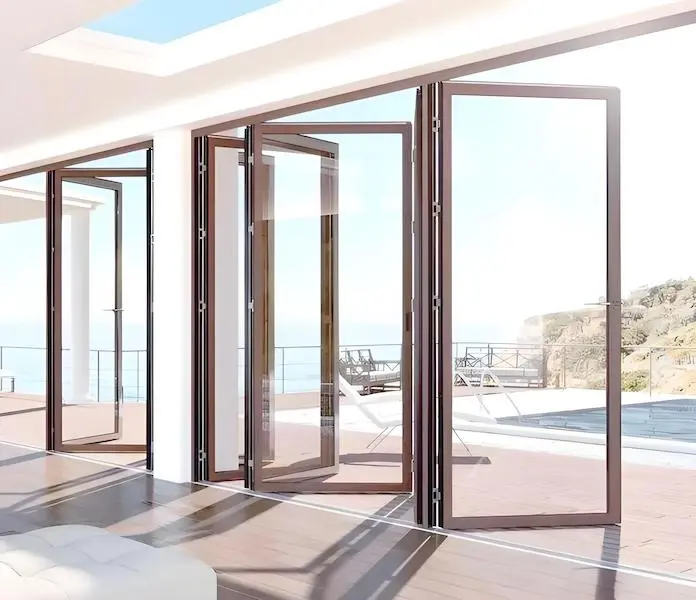

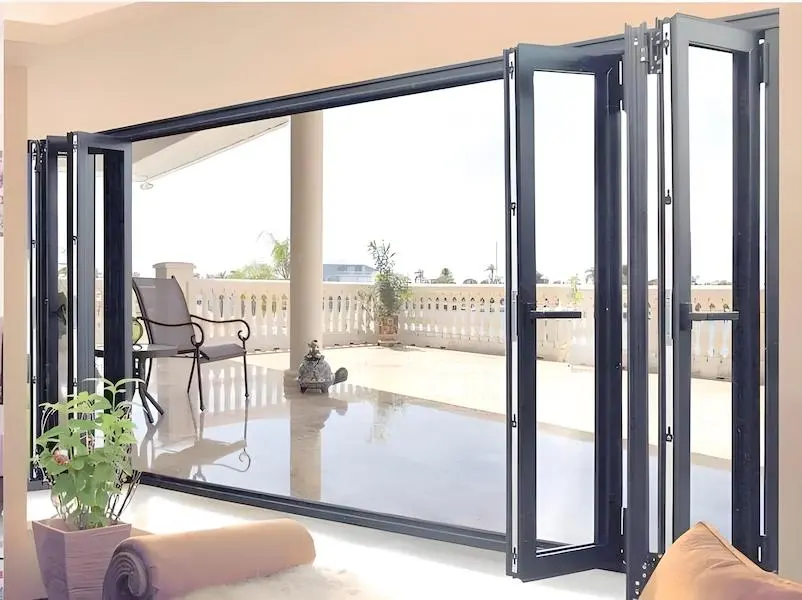

Aluminum Folding Sliding Door

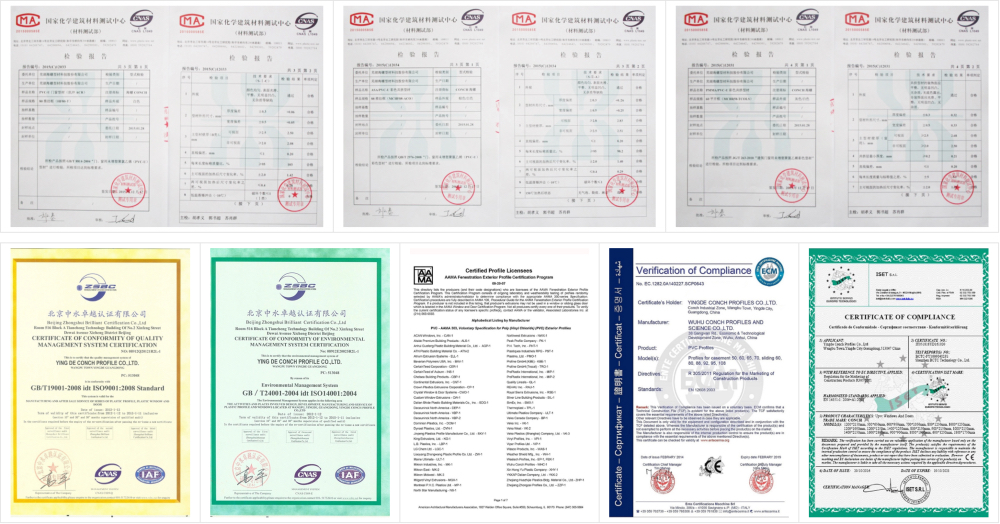

Hunan Haolv Building Materials Co., Ltd. 19 years experience in manufacture, high quality Aluminum Folding Sliding Door system Factory direct solutions with multi-chamber reinforced frame of 6063-T5 aluminium alloy to accommodate panel weights of up to 150kg per sash. Each system has a U-value of less than 1.8 W/m²K, polyamide PA66 thermal breaks, and is ISO, CE and AAMA certified. We have the potential to produce in 25-30 day cycles and our relationship with CONCH provides constant quality of raw materials for projects requiring architectural beauty and structural stability.

The concertina folding design gives you up to 90% clear opening width, which is far better than conventional sliding systems. This setup allows for adaptable transitions rather than hard wall borders, which is especially beneficial for small shopfronts or patios with restricted space.

Depending on the structural circumstances, you may choose either top hanging or bottom rolling hardware. Top-hung systems provide whisper-quiet operation by hanging weight from reinforced lintels while bottom-rolling versions are ideal for installations where overhead support is restricted. Both setups use precise stainless steel or heavy-duty nylon rollers for extended life and smooth operation.

Surface treatments available in 60-80 micron powder coating or AAMA 2605 certified fluorocarbon finishes, offering excellent corrosion protection in coastal conditions. Marine-grade hardware alternatives handle heavy salt-spray exposure, when normal systems quickly deteriorate.

Weather seals Multi-layer EPDM gaskets for rain, wind and dust penetration protection. The Aluminum Folding Sliding Door is designed to achieve Class 8A water tightness, even with prolonged pressure, providing protection for interior areas during severe weather events.

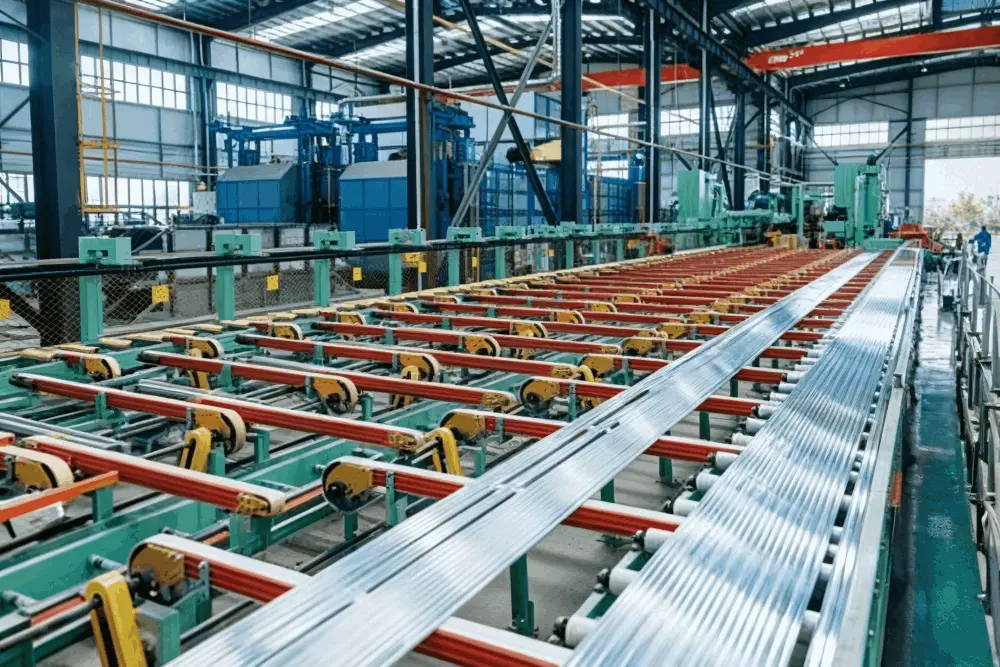

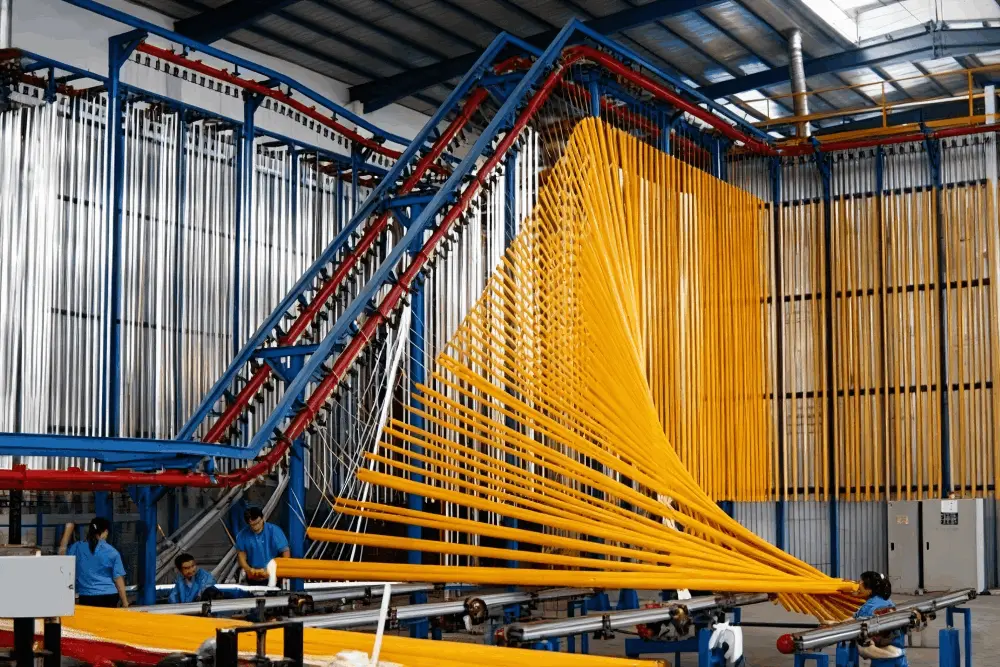

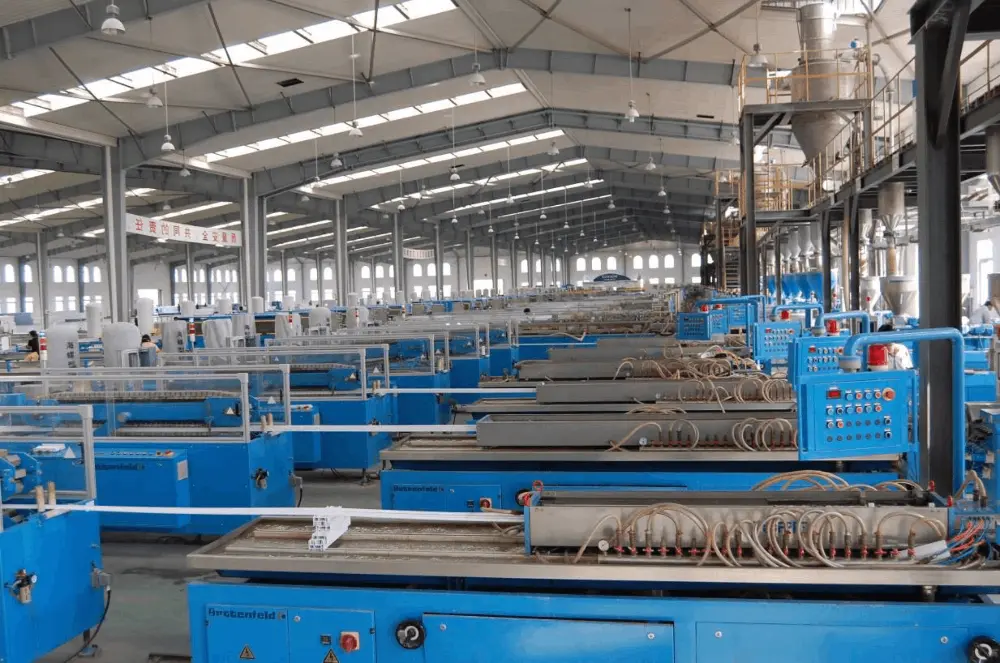

Our Factory



Our OEM/ODM services tailor each system component to your requirements. Opening orientations include inward/outward swing with single or double-side stacking configurations. Threshold choices are available for accessibility compliance, including conventional profiles, low-barrier or flush designs.

Glass options include 5mm tempered single glazed or 28mm triple glazed units with argon fills. Custom RAL colour matching for smooth incorporation into your architectural palette. The engineering teams submit their technical drawings and load calculations for approval prior to manufacturing.

The smooth movement from inside to outside of balconies and patios helps to extend living rooms without sacrificing thermal management. Quiet conditions are created even in the cities thanks to the system sound insulation of 30-40 dB.

The Aluminium Folding Sliding Door is the best friend of a commercial hospitality venue for optimising shopfront visibility and flow of foot traffic. Retail showrooms provide clear views of products, and restaurants may change from climate-controlled eating to open-air dining in seconds.

Heavy duty hinges are rated for 100,000+ operation cycles and work well for high traffic areas like shopping malls and office atriums for years of maintenance-free operation.

Q:How do I choose between top-hung and bottom-rolling systems?

A:Top-hung systems require structural lintels capable of supporting full door weight but eliminate floor tracks that collect debris. Bottom-rolling systems suit lighter overhead structures and simplify installation in existing openings.

Q:What maintenance does the system require?

A:Clean bottom tracks monthly to remove debris. Apply silicone-based lubricant to rollers and hinges every six months. Inspect weather seals annually for compression damage.

Q:Can the system withstand extreme cold?

A:Yes. Thermal breaks and triple glazing prevent condensation formation while meeting regional Energy Star standards. The product performs reliably in temperatures down to -30°C.

Q:Is forced entry protection available?

A:Multi-point locking mechanisms engage 3-5 contact points per panel. Hidden hinge designs and anti-lift blocks provide security matching commercial-grade standards.

Q:What's the typical project timeline?

A:Our established supply chain delivers complete systems within 25-30 days from order confirmation. Rush production available for qualifying projects.

Contact our Aluminum Folding Sliding Door's team at kristin@haolvwindows.com to discuss your project requirements and receive customized solutions backed by 19 years of industry expertise.
