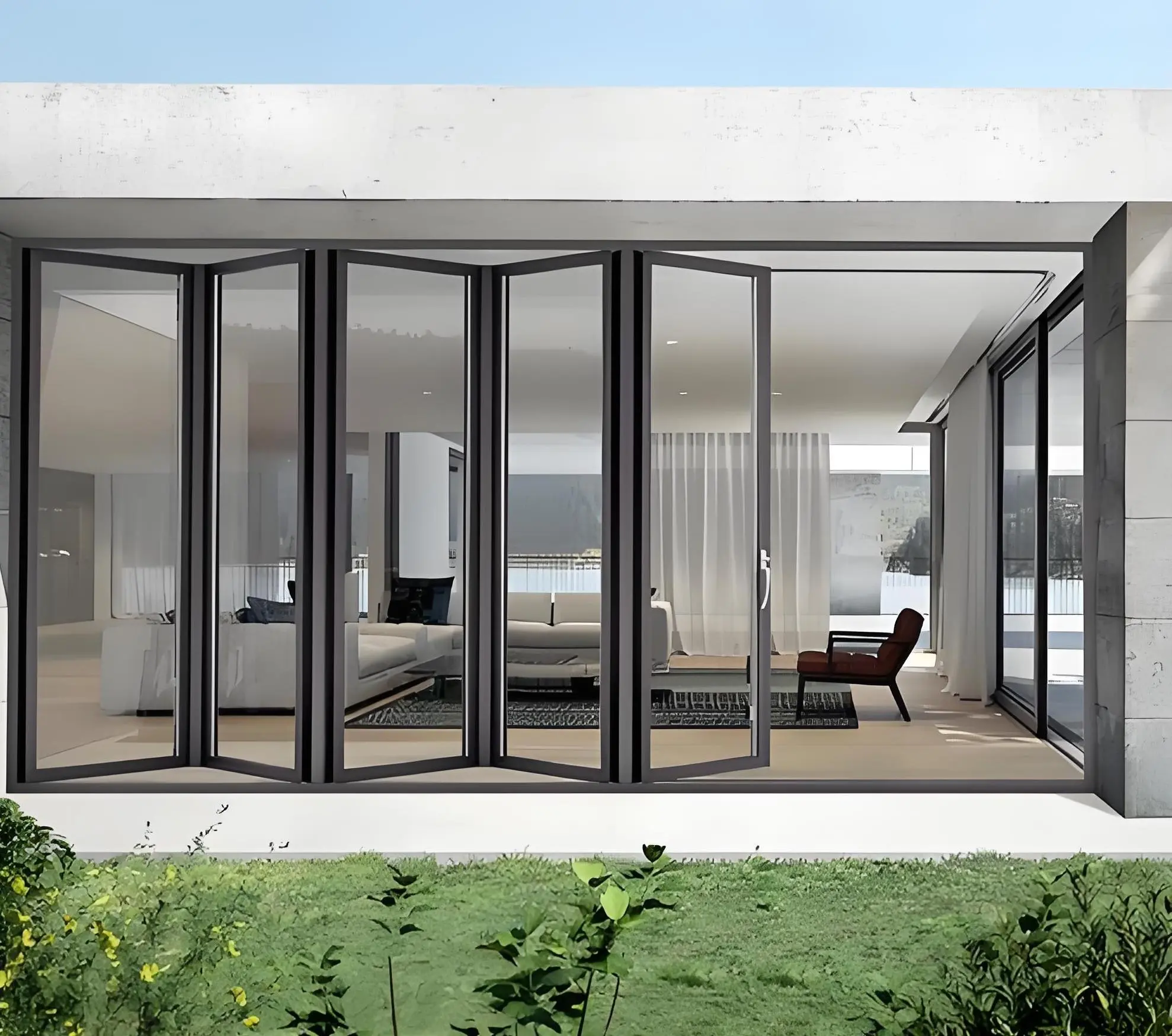

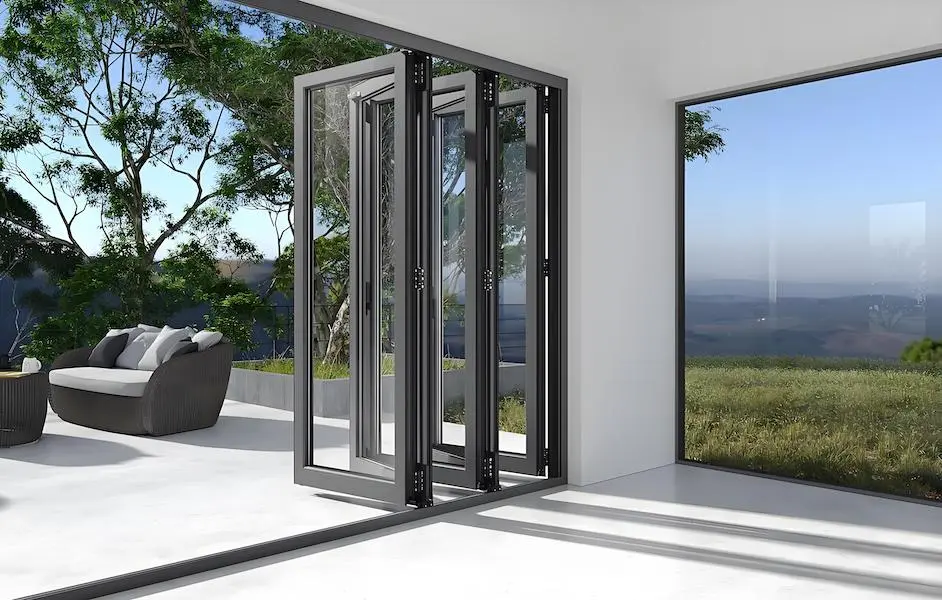

Aluminum Thermal Break Folding Door

With 19 years of manufacturing expertise, Hunan Haolv Building Materials Co., Ltd. offers high-performance Aluminum Thermal Break Folding Door systems that provide superb energy efficiency and durability. Our folding doors are made with profiles in 6063-T5 aluminium alloy and thermal strips in PA66, reaching U-values below 1.8 W/m2K and panel weights up to 150 kg. All systems use industrial-grade hardware with over 20,000 cycles durability, multi-point locking systems, and integrated sealing with EPDM. Our doors are approved to ISO, CE and AAMA standards and provide sound insulation of 35-50 dB and wind resistance up to 4500Pa. Our configurations are customisable from 4 to 10 panels and we deliver in 25 – 30 days We provide turn-key solutions for commercial and luxury residential projects globally.

Our product incorporates modern polyamide thermal break technology to reduce thermal bridging. This provides a barrier between the inside and the outside of the aluminium profiles and considerably reduces heat transmission.

The reinforced profile construction allows for huge spans of glass while retaining structural integrity. Heavy-duty top-hung or bottom-rolling track systems evenly disperse the weight across several panels.

You have 90% clear opening width when completely retracted. It will also allow maximum light penetration and smooth transition from inside to out.

Luxury Residential Applications Turn your living area into an open air pavilion. Our thermal break technology keeps you comfortable inside while giving you a great view of your garden or patio.

Commercial Hospitality Venues: Restaurants and hotels benefit from flexibility in space management. Configure eating spaces to adjust to weather while preserving temperature control efficiency.

Retail Environments with High Traffic Create attractive shopfronts to maximise foot traffic flow. Our low barrier design makes it accessible and easy to enter for customers.

Coastal Properties: Options include marine-grade hardware with specific anti-corrosion coatings for salt-spray exposure. These solutions provide attractive aesthetics and structural performance in harsh seashore situations.

The ability to reconfigure conference rooms and exhibition areas quickly makes them more flexible. Develop or partition open areas to fit with your event needs.

Every Aluminum Thermal Break Folding Door is thoroughly inspected for quality prior to shipping. Using our hydraulic crimping method we make sure corner joints are spot on to a tolerance of 0.2mm.

Cycle Testing Ensures Hardware Durability for 20,000+ Opening/Closing Operations. This is to imitate years of everyday usage for long-term dependability.

Water penetration testing is conducted per ASTM E1105. The bottom track drainage system can withstand heavy rain without leaking into the inside.

All glazing is AS/NZS 2208 safety rated glazing. We utilise tempered or laminated glass that is approved for occupant safety and thermal efficiency.

Surface finish thickness inspection guarantees 60-80 micron coating depth. Provides better corrosion resistance than that specified by AAMA 2605 fluorocarbon specifications.

Your project needs unique solutions. We provide OEM/ODM full customisation according to architectural designs or requirements.

Custom colours available in powder coated, anodised and PVDF surface treatments. Perfectly match the aesthetic needs of your building.

Set panel counts from 4 to 10 depending on opening width requirements. Choose single-side or double-side folding mechanisms according to space limitation.

Double or triple insulated units with laminated safety glass are available. Specify the thermal or acoustic performances relevant to your climatic zone.

Hardware updates are meant to meet particular security or operational demands. Our engineers provide technical consulting to help you optimise your system design.

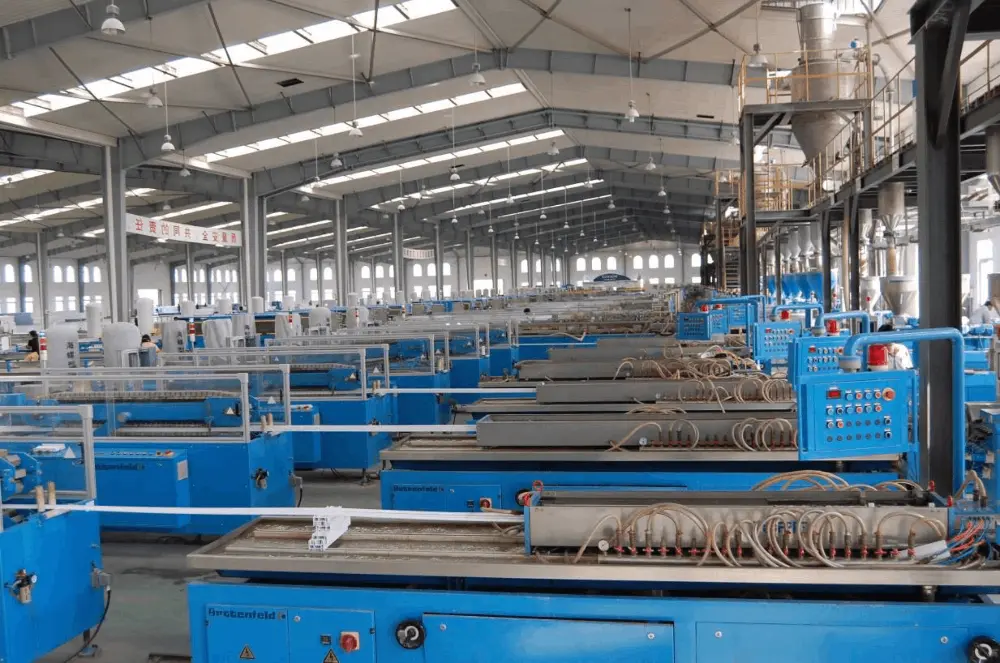

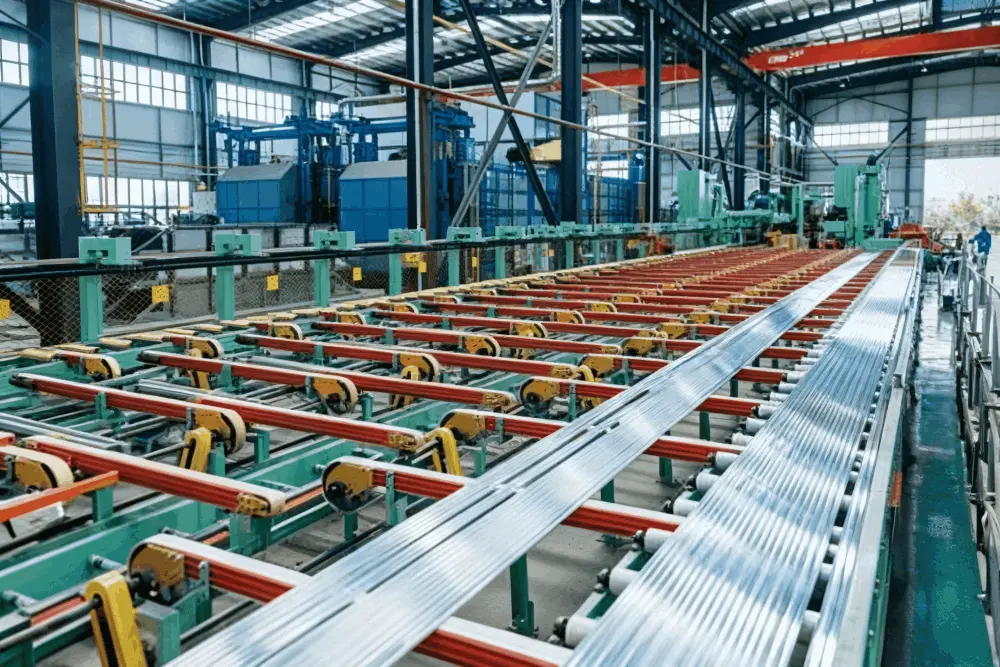

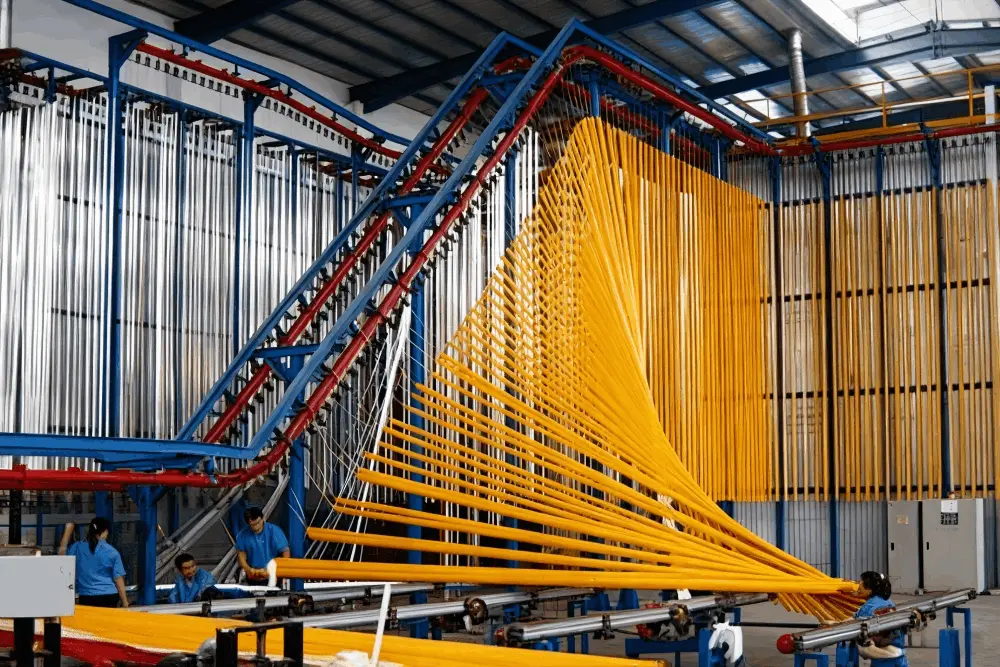

Our Factory



Proper installation ensures optimal performance of your thermal break folding door system. Our technical team provides detailed installation guides and project support throughout execution.

The top-hung system requires structural lintel capable of supporting distributed panel weight. Bottom-rolling configurations work when overhead support is limited.

Regular maintenance extends system lifespan significantly. Clean bottom tracks monthly to prevent debris accumulation that affects roller operation.

Apply silicone-based lubricant to stainless steel rollers and hinges biannually. This maintains smooth operation and prevents premature wear.

Inspect sealing strips annually for compression damage. Replace worn EPDM gaskets to maintain thermal and acoustic performance standards.

Q: How does thermal break technology improve energy efficiency?

A: The PA66 polyamide strip creates a thermal barrier between interior and exterior aluminum profiles. This prevents heat conduction, reducing energy costs by up to 40% compared to non-thermal break systems.

Q: What's the maximum panel size you can manufacture?

A: Individual panels reach up to 1.2 meters width and 3.5 meters height. Actual dimensions depend on profile structural calculations and hardware load ratings for your specific configuration.

Q: Can these doors withstand extreme weather conditions?

A: Yes. Our systems achieve wind resistance up to 4500 Pa and Class 8A water tightness. Marine-grade hardware options handle coastal salt-spray environments effectively.

Q: What security features are included?

A: Each system includes multi-point locking mechanisms with 3-5 engagement points per panel. Hidden hinge designs prevent external tampering and forced entry attempts.

Q: How long does manufacturing and delivery take?

A: Our established supply chain and sufficient inventory enable 25-30 day delivery from order confirmation to shipment, ensuring your project stays on schedule.

Ready to discuss your project requirements? Contact our Aluminum Thermal Break Folding Door's team at kristin@haolvwindows.com for customized solutions and free consultation today.
