Thermal Break Aluminum Sliding Door

With 19 years of manufacturing experience, Hunan Haolv Building Materials Co., Ltd. produces high-end Thermal Break Aluminum Sliding Door designed for exceptional structural performance and energy efficiency. Our 3-track sliding mechanism maximises opening area while supporting many panels. After more than a million cycles of testing, heavy-duty rollers guarantee smooth functioning. Our collaboration with CONCH ensures constant material quality, and the thermal break technology may minimise heat transmission by up to 40% when compared to normal profiles. With optional double glazing that achieves U-values as low as 1.8 W/m²K, each door accommodates glass thicknesses ranging from 5mm to 28mm. ISO, CE, and AAMA certifications attest to our dedication to international quality standards, and delivery is finished in 25–30 days.

Polyamide strips are inserted between the outside and interior aluminium profiles in the thermal break design. As a result, a barrier is created that significantly lowers heat conductivity. As heat loss diminishes over the winter, your energy expenses also fall.

Even in conditions with high humidity, cold condensation becomes negligible. Interior surface temperatures are kept closer to ambient temperature by the insulated frame. This prevents moisture accumulation, which usually damages interior finishes and window surrounds.

Our Thermal Break Aluminum Sliding Door systems easily work with contemporary HVAC setups. The burden on heating and cooling systems is lessened by the enhanced insulation. Reduced utility costs provide building owners with quantifiable benefits all year round.

The aluminum frame provides exceptional strength while remaining lightweight. Corrosion resistance makes these doors suitable for coastal installations when specified with marine-grade finishes. Large glass panels become structurally viable without additional reinforcement due to the rigid profile design.

Your property gains protection through our integrated sliding lock mechanism. The anti-lift design prevents unauthorized panel removal from exterior access points. Reinforced strike plates distribute force across multiple anchor points.

Brush sealing forms the primary weather barrier along vertical edges. Optional EPDM gasket upgrades provide enhanced water resistance for exposed locations. The multi-point seal configuration achieves air infiltration rates below 0.3 m³/h·m² at 50 Pa pressure.

Soundproofing reaches STC ratings of 30-35dB when paired with 6mm+9A+6mm double glazing. The thermal break cavity itself contributes to acoustic dampening. Urban residential projects benefit from reduced street noise penetration.

Our OEM/ODM capabilities support project-specific requirements. You provide drawings or performance targets, and our engineering team develops tailored solutions. Profile depths adjust from 85mm to 120mm based on glass weight and span requirements.

Color options include standard RAL powder coating or custom color matching. Anodized finishes offer metallic aesthetics with superior scratch resistance. Surface treatments adapt to match existing building materials or architectural themes.

Large balconies, patios, and commercial storefronts all utilize Thermal Break Aluminum Sliding Door installations effectively. The system scales from residential single openings to multi-panel commercial applications. Maximum panel widths reach 3000mm depending on glass specification and hardware configuration.

Track alignment remains critical for smooth operation. Our technical team provides installation guidance and system optimization recommendations. Proper initial setup extends hardware lifespan and maintains seal integrity.

Maintenance requirements stay minimal with quality components. Annual inspection of roller assemblies and lubrication points ensures continued performance. The durable aluminum and thermal break materials resist degradation from UV exposure and temperature cycling.

Coastal environments demand specific attention to corrosion protection. Marine-grade finishes meeting ISO 9227 standards prevent salt-spray damage. Regular cleaning maintains both function and appearance in harsh conditions.

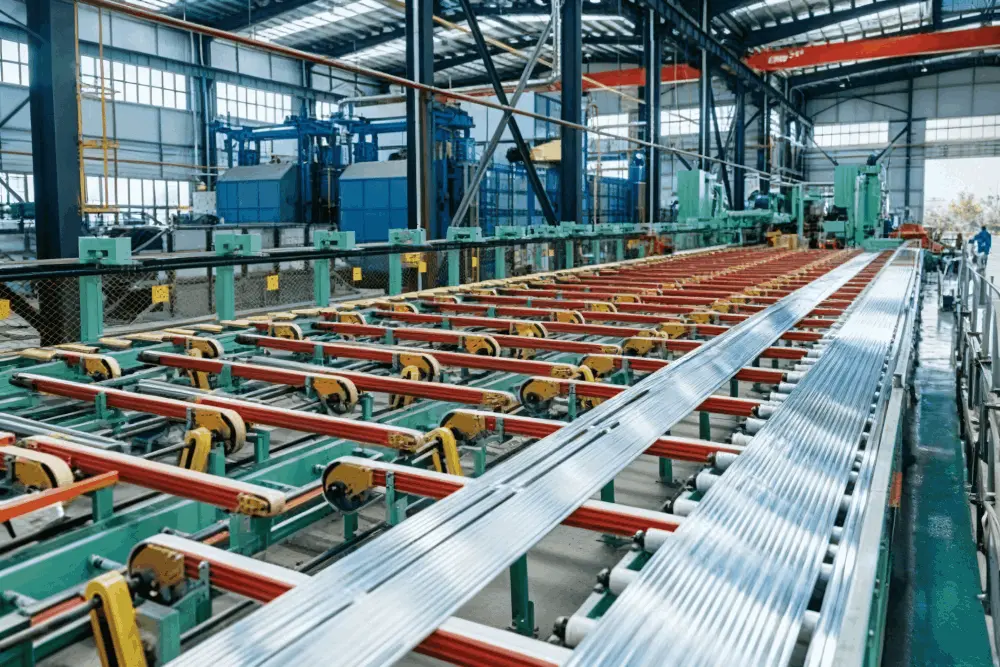

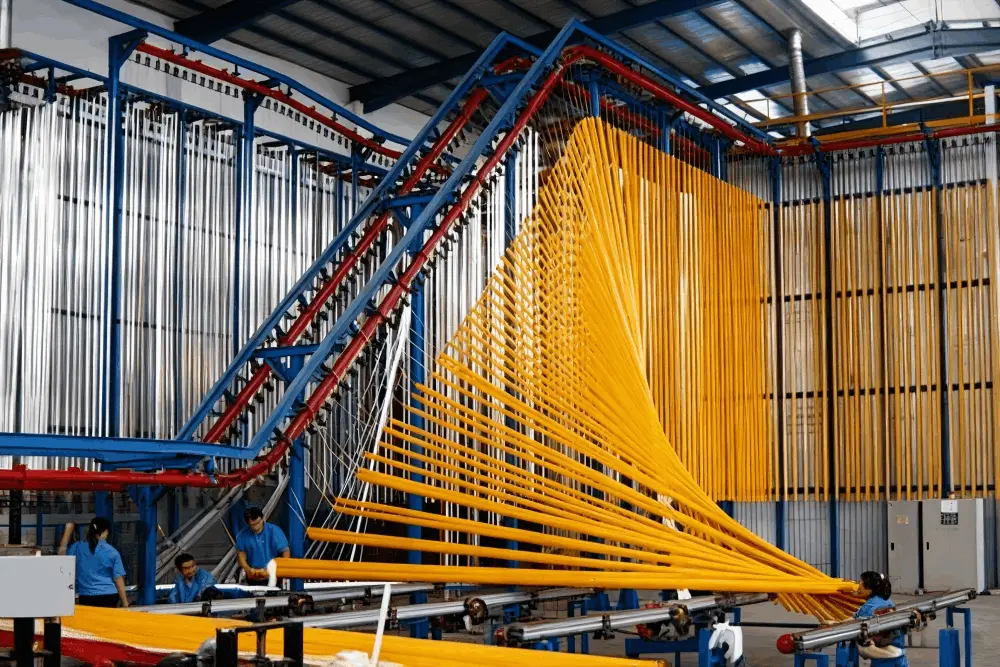

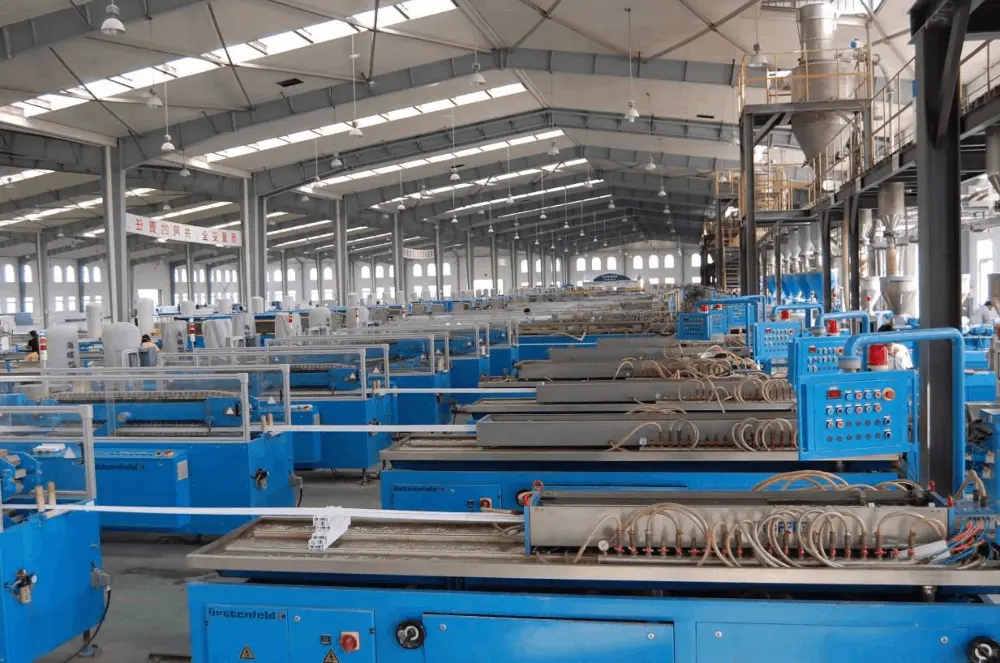

Our Factory



We simplify your procurement process by supplying complete system components. Frame profiles, glass panels, hardware, and accessories all ship from a single source. This coordination reduces project delays and compatibility concerns.

Our mature engineering team remains available throughout project execution. From initial specification review to post-installation follow-up, you receive consistent technical assistance. Free consultation helps optimize product selection for your specific performance requirements.

Sufficient inventory and established supply chains enable our 25-30 day delivery commitment. You gain predictable schedules for project planning. Quality control at every production stage maintains the standards your projects demand.

Q: How does thermal break technology reduce energy consumption?

A: The polyamide strip blocks thermal bridging between interior and exterior aluminum, reducing heat transfer by up to 40% and lowering HVAC loads.

Q: What glass configurations work best for noise reduction?

A: Laminated glass or asymmetric double glazing (6mm+12A+8mm) provides superior sound dampening compared to standard symmetric units.

Q: Are these doors suitable for high-wind coastal regions?

A: Yes, when specified with marine-grade anodizing and structural reinforcement for your wind load requirements per local building codes.

Q: Can I get samples before placing a bulk order?

A: Free samples are available with shipping costs covered by the customer to evaluate quality and fit.

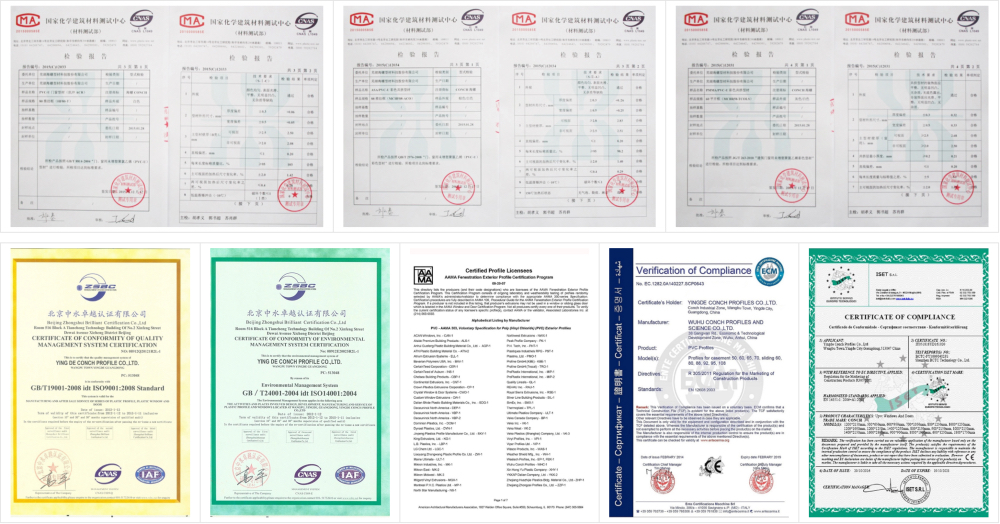

Q: What certifications validate your product quality?

A: Our products hold ISO, CE, and AAMA certifications confirming compliance with international performance standards.

Our Thermal Break Aluminum Sliding Door's team provides free technical consultation and customized solutions. Reach out today at kristin@haolvwindows.com to discuss your requirements and receive expert guidance.
