Aluminum Tilt Turn Windows vs Casement Windows: A Buyer’s Guide

Selecting between aluminum tilt turn windows and casement windows significantly impacts passive house certification success and long-term building performance. Aluminum tilt turn windows employ a dual-action mechanism controlled by a single handle, offering inward tilting for draft-free ventilation and full inward opening for cleaning access.

Their multi-point locking systems and superior sealing capabilities make them the preferred choice for energy-conscious developers pursuing ultra-low U-values and Class 4 airtightness. Understanding the technical distinctions between these window types helps project architects and contractors make informed decisions that balance thermal performance, security requirements, and operational efficiency within high-end residential developments.

Understanding Aluminum Tilt Turn and Casement Windows

Core Structural Differences

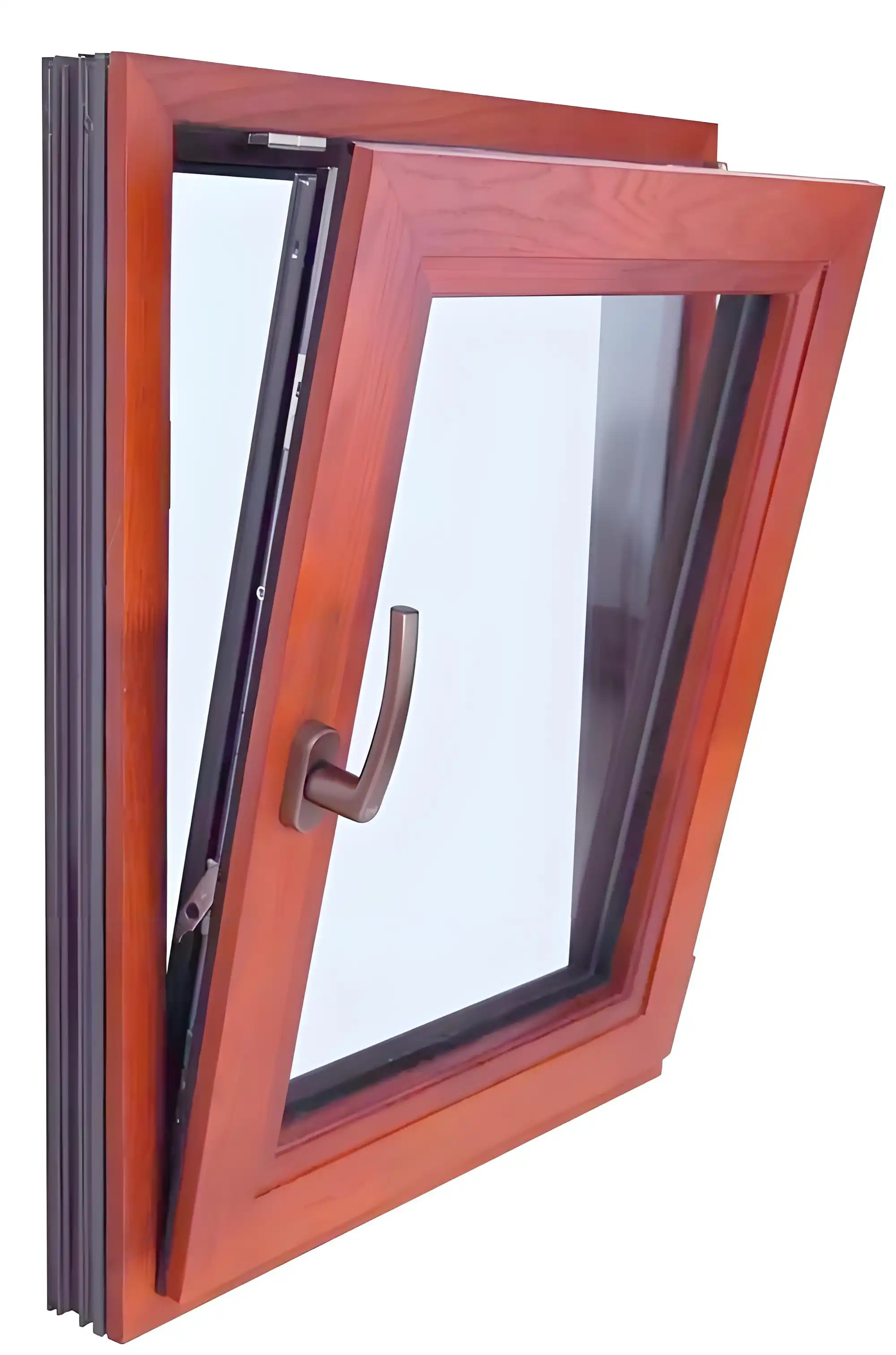

Tilt turn windows have a complex hinge system that lets them open in two different ways. When you turn the handle 90 degrees, the sash tilts inward at a 10-15 degree angle from the top. This lets air flow through safely without compromising safety. When the handle is turned all the way around 180 degrees, the whole sash swings inward like a door, letting you open the whole thing. This European-engineered design solves important problems in high-rise building, where it's still hard to clean the outside and people have to be careful not to fall.

Casement windows work with side-mounted hinges that let them swing in or out in a single arc. Traditionally made versions usually have cranks or push-bars that make them work. Casement windows let in good air flow when they're fully open, but they don't have the middle setting that tilt-turn systems do. Casement windows are good for projects that want easy placement over multiple functions because they are mechanically simple.

Material Specifications and Applications

High-performance aluminum tilt-turn systems use 6063-T5 metal profiles with walls that are between 1.4 and 2.0 mm thick. These profiles keep the structure strong even when heated up. Using thermal break technology with polyamide strips that are at least 40 mm wide stops heat transfer paths. This lets whole-window U-values be at or below 0.8 W/m³K when triple glazing is added. This set-up meets the strict standards of the Passive House Institute for climates in North America and Europe.

Through thermal breaks and improved glass, casement windows made from similar aluminum alloys may have similar thermal efficiency. However, the sliding contact seals that are common in casement designs don't work as well as the compression seals that are achieved by tilt-turn systems, in which the sash presses evenly against the frame's edge. In passive house projects, where air infiltration rates must meet Class 4 standards to pass blower door testing, this difference is very important.

Functional Applications in Building Projects

Tilt turn windows are useful in high-rise apartment buildings because they let people clean the outside glass from the inside, without the need for special tools or safety risks. When the tilt mode is used, air flow can be controlled on upper floors that are exposed to wind, where regular casement windows could slam shut or get hinge damage. Tight lot lines mean that urban infill projects don't have to deal with the space problems that come up when casement windows open outward and touch neighboring properties or pedestrian zones.

For approval purposes, passive house projects need to have predictable thermal bridging estimates done. Documenting the correct way to install tilt turn windows with thermal imaging and psi-value calculations at the jamb, sill, and head levels is important for energy consultants to accurately model heat loss. Casement windows can cause thermal bridging variations based on where the hinges are placed and how much the weatherstripping is compressed. This can make energy modeling more difficult during the design phase.

Comparing Performance and Benefits

Energy Efficiency and Thermal Insulation

Tilt turn windows with triple EPDM gasket systems have three separate closing lines between the sash and the frame. This reduces the amount of heat loss and air leaks. When triple-pane glazing with low-emissivity coatings and argon fill is added, the U-values of the glass drop to less than 0.6 W/m²K. This means that the whole system meets the requirements for passive house certification. Because aluminum is very conductive, thermal break lengths of 40 mm or more keep the insulation value of the glass unit from being short-circuited.

Casement windows may have two gasket systems, but the sliding action during use can wear down the weatherstripping unevenly over time, making it less airtight. Long-term performance studies show that tilt-turn compression seals keep the same pressure distribution over their service life, while casement slide seals wear out faster at corner changes. This difference in durability affects how much a project will cost over its entire life, especially if it wants to last 50 years with only a few seal replacements.

Thermal bridging around the edges of windows affects more than just the energy efficiency of the windows themselves. Installers must use low-conductivity mounting brackets and continuous insulation wraps to handle the transfer between the window frame and the wall assembly. Because tilt turn windows have a standard frame depth and mounting requirements, they make it easier to prevent thermal bridges than casement windows, which may need custom flashing details to allow for outward projection.

Acoustic Performance and Noise Reduction

Aluminum tilt turn windows have multi-point locking systems that spread the clamping force evenly around the sash perimeter. This presses the glazing units tightly against the acoustic seals. This even pressure raises the sound transmission class (STC) scores, which is very important in cities where road noise is over 70 dB.

Projects near roads or airports benefit from better sound separation provided by compression sealing, which gets rid of the vibration paths common in point-locking casement designs. Aluminum Tilt Turn Windows are particularly well‑suited for these demanding environments because their rigid frames maintain consistent sealing pressure over time, further enhancing acoustic performance.

Triple-glazed units' mass and thickness help reduce noise a lot, but the integrity of the seals determines whether the acoustic performance meets design standards. If you use perimeter weatherstripping on casement windows without compressing it, sound may get in through tiny gaps that form as the hardware wears out over time. Casement locking points need to be adjusted on a regular basis as part of maintenance procedures to keep their soundproofing. Tilt-turn multi-point systems, on the other hand, don't need to be recalibrated as often.

Security and Safety Features

European multi-point locking methods work in four to eight places around the edge of the sash, spreading the force of an attempted break-in across stronger frame parts. Tilt turn windows are better at keeping out intruders than casement windows with single-point or dual-point locks, according to security tests. When high-end residential projects specify RC2 (resistance class 2) security glazing, multi-point hardware helps strengthen the structure, which meets insurance requirements in cities with high break-in risks.

Tilt mode operation lets air flow safely without making entry points, which is good for safety in ground-floor units and places that can be reached from rooftops or fire escapes. Casement windows that are partially open for ventilation can still be opened from the outside without permission, especially if the locking hardware can't be seen because the windows are covered. Child safety features built into tilt turn handles stop operation when not supervised by limiting handle rotation to tilt mode only. This gets rid of the risk of falls in residential settings.

Maintenance Requirements and Longevity

When properly installed, Aluminum Tilt Turn Windows don't need much care other than a yearly lubrication of the multi-point drive systems and a check of the hinge adjustment. The inward-opening design lets people clean the outside of the glass without having to go outside, which lowers the cost of upkeep in buildings with more than one floor. How long hardware lasts depends on how well it was made in the first place. For example, German-engineered systems from companies like Roto NT or SIEGENIA can go over 20,000 cycles without breaking down if they are installed correctly.

Casement windows that open outward get weather damage on the hinges and operators that are exposed to the elements, which speeds up rusting in marine or industrial settings. When you replace corroded hardware parts, the thermal and acoustic performance can change if the new parts don't meet the original specifications. When considering the starting costs of buying different window systems, lifecycle cost analysis should take these possible replacement processes into account.

Note that the actual performance values will vary depending on how the product is configured, how well it is installed, and the conditions of the site. Before buying something, performance claims should be checked with reports from independent tests and papers from the maker that certify the product.

Procurement Considerations for B2B Clients

Cost Analysis and Investment Returns

Tilt turn windows usually cost 15–25% more per unit than casement windows of the same size because they require more complex hardware systems and precise manufacturing. But passive house projects that use tilt-turn systems to get whole-window U-values of less than 0.8 W/m²K might be able to get energy efficiency incentives that cover the initial cost. To find the net present value, you have to model less HVAC capacity needs and lower yearly heating and cooling costs over the building's expected service life, which for business residential developments is usually 30 to 50 years.

The total cost of the project is affected by more than just the price of the window units. Standardized tilt turn windows on the European market are helped by easy access to installation training and well-known ways to reduce thermal bridges. Contractors who know how to do tilt-turn installations finish jobs faster than those who use casement installations. This saves time and money because there are fewer problems with callbacks caused by bad flashing or air seals.

For big projects, shipping operations that use systems made for knocked-down delivery work best. When sending glazing units separated from frame assemblies, containers that make the best use of their cubic space can cut freight costs by about 30% compared to fully built units. By choosing windows that are designed to be installed on the job site, you can speed up the customs process and make it easier to manage the risk of breakage during international shipping. This approach works especially well for North American projects that buy from overseas manufacturers, since ocean freight costs a lot.

Customization Capabilities for Project Requirements

For passive house projects to work, the rough openings for windows and the prefabricated wall panels must be perfectly matched in size. When manufacturers offer flexible customization in 10 mm steps, planners can find the best daylighting ratios without having to make openings with non-standard dimensions that make it harder to make the panels. Aside from standard anodized aluminum, color finish options like RAL color powder coating let the esthetic fit with the design intent of a wide range of building types.

Different projects may have different needs for security and air flow, so hardware setup versatility is important. Aluminum Tilt Turn Windows offer a flexible foundation for such customization. Ground-floor units can be set to only tilt and have a keyed option for limited operation, while units on upper floors can tilt and turn fully.

Putting insect screens into the window frame instead of installing them on-site makes sure that the screen mesh is lined up with the tilt operation clearances and that the architectural sightlines stay the same. To avoid expensive changes in the field, these customization options should be confirmed during technical submittal reviews.

The glazing requirements must match the needs of the climate zone and the goals for solar heat gain. If you live in a climate that is mainly hot, you might want to use high-visibility glass with few low-E coatings to get the most solar gain. If you live in a climate that is mostly cool, you should aim for a solar heat gain value below 0.25. Manufacturers who can get different glazing specifications from qualified suppliers make the buying process easier and make sure that the sizes of the glass, the spacers around the edges, and the frame rabbet details all work together.

Supplier Evaluation and Certification Requirements

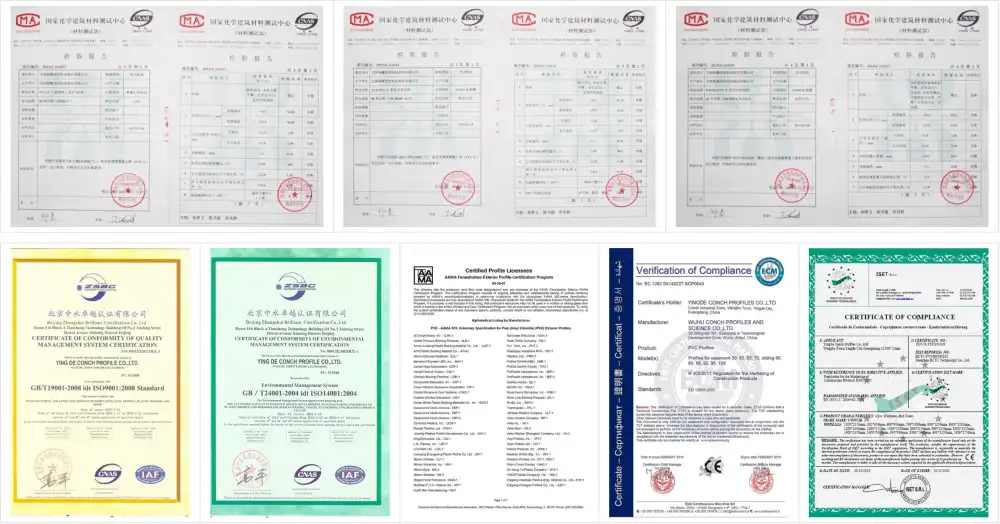

Certification from the Passive House Institute is proof from a third party that window systems meet certain performance standards for U-value, construction psi-values, and airtightness. Manufacturers who list their products in the PHI certified component database make the jobs of energy consultants easier by giving them performance data that has already been checked and is compatible with PHPP (Passive House Planning Package) software for energy modeling. This approval is especially important in European markets where passive house standards are becoming more and more important for building rules and getting loans.

An evaluation of production capacity protects against delivery delays that cause construction schedules to slip. Manufacturers with multiple extrusion lines and their own powder coating facilities are better able to handle problems in the supply chain than those who only do assembly and rely on outside sources. Site visits that look at quality control protocols, such as testing the strength of corner welds, automating the insertion of gaskets, and checking the accuracy of hardware pre-assembly, give information about what kind of consistency is expected for large orders that span multiple production runs.

Infrastructure for after-sales support affects the total ownership experience after the warranty period is over. When manufacturers keep replacement hardware parts in regional stores, they can respond quickly to needs in the field without having to wait for foreign shipping. When technical support teams review installation details during the planning phase, they find any problems with thermal bridging or structural alignment before they are built. This keeps expensive change orders from being needed. When comparing bids, these service capabilities should be taken into account along with unit price.

Decision-Making Framework for Buyers

Mapping Project Requirements to Window Performance

Analysis of climate zones leads to thermal performance standards that choose the right glass arrangements and frame thermal break needs. Passive house projects in ASHRAE climate zones 6–8 (cold and very cold climates) make reducing heat loss a top priority by requiring triple glazing with U-values of less than 0.6 W/m³K and whole-window performance of less than 0.8 W/m³K. In climates where heating is common, tilt-turn compression sealing stops heat loss through infiltration, which can be greater than heat loss through casement windows that aren't sealed well.

In cities, where noise control is needed, STC rates must be given that are acceptable for the sound levels present. For projects near highways or industrial areas, STC 40+ assemblies may be needed. These can only be made with triple glazing, asymmetrical glass thickness, and laminated inner lites. When you use tilt-turn systems with compression sealing, the sound quality stays the same for decades. But when you use casement sliding seals, the sound quality may get worse over time because the weatherstripping compresses unevenly from repeated use.

Security requirements depend on the type of building and the insurance rules in the area. Residential projects in cities with high property crime rates should use RC2 or RC3 security glass along with multi-point locking hardware to prevent forced entry. Tilt mode ventilation gets rid of the security risk that comes with leaving casement windows partially open overnight. This meets the comfort needs of residents without breaking safety rules that are required by property insurers.

Real-World Case Study Insights

A 120-unit passive house apartment building in Toronto needed tilt turn windows with 0.75 W/m³K whole-window U-values, which were achieved by triple glazing and 44 mm thermal breaks. The developer said that residents really liked tilt mode ventilation during shoulder seasons because it kept the air quality inside without using mechanical ventilation systems. Annual energy monitoring showed that these buildings had 35% lower heating costs than code-minimum buildings. This proved that the lifecycle cost estimates were accurate and justified the initial window premiums.

During the Toronto project, it was hard to coordinate the timing of knock-down deliveries with panel erection schedules so that fragile glazing units wouldn't have to be stored on-site. The installation team came up with a "just-in-time" plan so that the glazing units would come within 48 hours of the frames being put up. This cut down on the chance of breaking and security issues at the site. This improvement to logistics cut down on insurance claims and the cost of renting storage containers, which increased project earnings even though premium window requirements were met.

Another Seattle developer working on a campus of passive houses first thought about using casement windows to save money up front. Energy modeling showed that casement windows with custom compression hardware were needed to achieve the same level of airtightness, which took away from the price advantage. The developer finally chose tilt-turn systems after a total cost analysis showed that they would have lower lifetime costs due to fewer repair intervals and better long-term seal performance. This shows how important it is to do a thorough procurement analysis that goes beyond just looking at unit prices.

Installation and After-Sales Support

Professional Installation Standards

In order to get a qualified passive house, the work must be done with great care so that thermal bridging and air leakage paths are not created. To keep heat from escaping through the mounting brackets, window frames must be put inside the insulation layer of the wall assembly and have continuous exterior insulation wrapped around the frame's edges. Installation teams should get training from the maker on how to properly place sealing tapes, make links for continuous air barriers, and learn about subsill insulation details that are special to tilt-turn frame profiles.

One common installation mistake is not separating the shims far enough, which lets the frame bend under the weight of the sash, causing diagonal racking that throws off the locking points and weakens the seal compression. Aluminum Tilt Turn Windows require particular attention during this step, as their heavier sash and multi-point hardware are sensitive to frame distortion.

Before the frame is finally fastened, it should be checked with a laser level to make sure it is plumb and square, and diagonal measurements should be used to make sure the shape is rectangular and within a 3 mm tolerance. When knocked-down units are glazed on the job site, they need to be done in a clean room so that dust doesn't get between the glazing unit and the setting blocks. This keeps the seal strong over time.

Thermal imaging checking after rough-in is done but before finishing the inside finds thermal bridge problems while fixing them is still cost-effective. Blower door testing during the middle stages of construction makes sure that airtightness goals are met before air barrier details are hidden. This finds installation mistakes that would otherwise make passive house certification impossible. These quality control measures should be written into installation contracts. Payment goals should be linked to proven performance benchmarks instead of just finishing percentages.

Warranty Terms and Maintenance Protocols

Full warranties that cover hardware mechanisms, gasket performance, and finish durability are necessary to lower the risk of large-scale purchases. Manufacturer contracts should spell out exactly what kinds of failure are covered, such as the maximum number of cycles that hardware can go through, the specs for gasket compression sets, and the standards for coating bonding.

There should also be clear exceptions for installation flaws or external exposures that go beyond what was intended. Knowing how to file a warranty claim and how long it will take to get the parts can affect your choice of supplier, especially for projects in remote areas where the time it takes to get service can affect how happy the residents are.

Annual maintenance should include checking the multi-point lock's setting, lubricating the hinges with non-corrosive oil, and checking the gasket for compression set or corner delamination. Manufacturers that give video installation instructions and maintenance documentation reduce service calls because building maintenance workers may make frequent modifications without training. Technical parameter sheets with detailed information like torque values for hardware adjustments and permitted operating force ranges provide consistent maintenance quality throughout a property portfolio.

Long-term operational risks can be cut down by forming maintenance partnerships with local service providers who know how to fix certain hardware systems. When field adjustments go beyond what is normally covered by maintenance, manufacturers that offer certified installer networks or direct technical support through video consultation make the troubleshooting process go more quickly. These support structures are especially helpful for developers who are in charge of many properties in different parts of the world. They make it possible to use standard terms for purchasing things and a consistent service infrastructure.

When projects use modular building methods, they have more options because the maker can help with installing the glass in the field. Technical paperwork that shows where to put the setting blocks, how much space between them is needed, and which sealants will work removes the need for guessing during assembly on the job site. This feature is very useful for projects in places where transportation rules are strict and fully assembled unit sizes are limited. It lets developers choose the best window sizes without having to make logistical sacrifices that hurt the design or the way light comes in.

Conclusion

Aluminum Tilt Turn Windows offer measured benefits for passive house builders through better thermal performance, increased security, and a wider range of operating options that casement windows can't match in all areas. Their multi-point locking systems, compression gasket technology, and dual-mode operation meet important project needs in high-end residential developments that want to use very little energy. Even though they cost more at first than casement options, lifecycle analysis shows that they are worth it because they require less maintenance, use less energy, and make residents happier.

When making purchasing choices, it's important to look at a supplier's certifications, customizable options, and infrastructure for after-sales support to make sure the project is delivered successfully and reliably over time. When developers spend money on thorough source evaluation and installation quality standards, they set up their projects to meet market goals for building performance and resident comfort while also getting passive house certification.

FAQ

What U-values can aluminum tilt turn windows achieve for passive house projects?

High-performance aluminum tilt-turn systems with 40+ mm thermal breaks and triple glazing (Ug ≤0.6 W/m²K) usually get whole-window U-values between 0.75 and 0.80 W/m²K, which meet the requirements for passive house institute certification. The actual performance relies on the frame's size, the glazing edge spacer's specs, and how well thermal bridging is avoided during installation. Instead of guesses, manufacturers should give values that have been tested by a third party and are backed up by certification listings.

How does multi-point locking enhance security compared to casement windows?

Multi-point locking methods connect the sash at four to eight points around the frame's edge. This spreads the force of entry loads across the stronger frame sections. This design is better at stopping prying attacks than single-point or dual-point casement locks because it gets rid of weak spots where attackers can focus their force. When combined with laminated glazing, security testing shows that RC2 requirements are met.

Can tilt turn windows accommodate insect screens?

Insect screen systems that are built into the window frame keep the space needed for tilt action while still letting people see through the window. Retractable screens are stored in head jamb parts and can be pulled out across the hole when needed. This unified method works better than installing extra screens on-site, which could mess up the hardware or make the faces of buildings look different.

What maintenance do tilt turn windows require annually?

Every year, maintenance checks include using non-corrosive oil to grease multi-point lock drive mechanisms, checking the compression of gaskets at the corners, and making sure that hardware change keeps the right sash-to-frame compression. Manufacturers usually list acceptable operational force ranges (usually between 10 and 15 Newtons for rotating the handle) as standards that show when something needs to be adjusted or replaced.

Partner with a Trusted Aluminum Tilt Turn Windows Manufacturer

Annual maintenance should include checking the multi-point lock's setting, lubricating the hinges with non-corrosive oil, and checking the gasket for compression set or corner delamination. Our aluminium tilt-turn window systems, produced from 6063-T5 alloy, have thermal breaks to maintain U-values below 0.8 W/m³K. This fulfils stringent Passive House Institute standards. Class 4 airtightness and sound isolation are achieved using multi-point European locking gear and triple EPDM sealing. ISO, CE, and AAMA certifications support quality standards, and our CONCH cooperation ensures material requirements are consistent throughout manufacturing runs.

We allow customizations based on the size, finish, and hardware settings of a project. Our expert teams review installation details and help with energy models for PHPP documentation. Our ability to ship containers "knocked down" cuts handling costs by about 30%, making the best use of containers for foreign projects. Standard shipping times are 25 to 30 days from the time an order is confirmed. If there is enough inventory, faster plans can be used when project deadlines require quick mobilization.

Email our expert sales team at kristin@haolvwindows.com to talk about what you need from a passive house window. We offer free technical advice, video guides for installation, and detailed assembly documents to back up field glazing protocols. You can look at our aluminum tilt-turn window systems for your upcoming projects by asking for product specification sheets and sample shipments. You can see all of our products and certification paperwork at haolvbuilding.com.

References

1. Passive House Institute. Criteria for the Passive House, EnerPHit and PHI Low Energy Building Standard. Darmstadt: Passive House Institute, 2016.

2. Feist, Wolfgang, Jürgen Schnieders, Viktor Dorer, and Anne Haas. "Re-inventing air heating: Convenient and comfortable within the frame of the Passive House concept." Energy and Buildings 37, no. 11 (2005): 1186-1203.

3. Lstiburek, Joseph W. Builder's Guide to Cold Climates: Details for Design and Construction. Westford: Building Science Press, 2006.

4. European Committee for Standardization. EN 14351-1:2006+A2:2016 Windows and doors - Product standard, performance characteristics - Part 1: Windows and external pedestrian doorsets. Brussels: CEN, 2016.

5. Straube, John F., and Eric F. P. Burnett. Building Science for Building Enclosures. Westford: Building Science Press, 2005.

6. American Architectural Manufacturers Association. AAMA 101/I.S.2/NAFS-17: North American Fenestration Standard/Specification for windows, doors, and skylights. Schaumburg: AAMA, 2017.
