Are Aluminum Tilt Turn Windows Suitable for Commercial Buildings?

Yes, aluminum tilt turn windows are highly suitable for commercial buildings, particularly passive house and high-performance construction projects. These European-engineered fenestration systems deliver dual functionality through a single handle operation—tilting inward at the top for secure, draft-free ventilation or swinging fully inward for maximum airflow and maintenance access.

With advanced thermal break technology, multi-point locking mechanisms, and Class 4 airtightness ratings, these windows meet stringent energy efficiency requirements including Uw values ≤0.8 W/m²K necessary for Passive House Institute (PHI) certification, making them an increasingly preferred choice among project developers and architects focused on low-energy building envelopes.

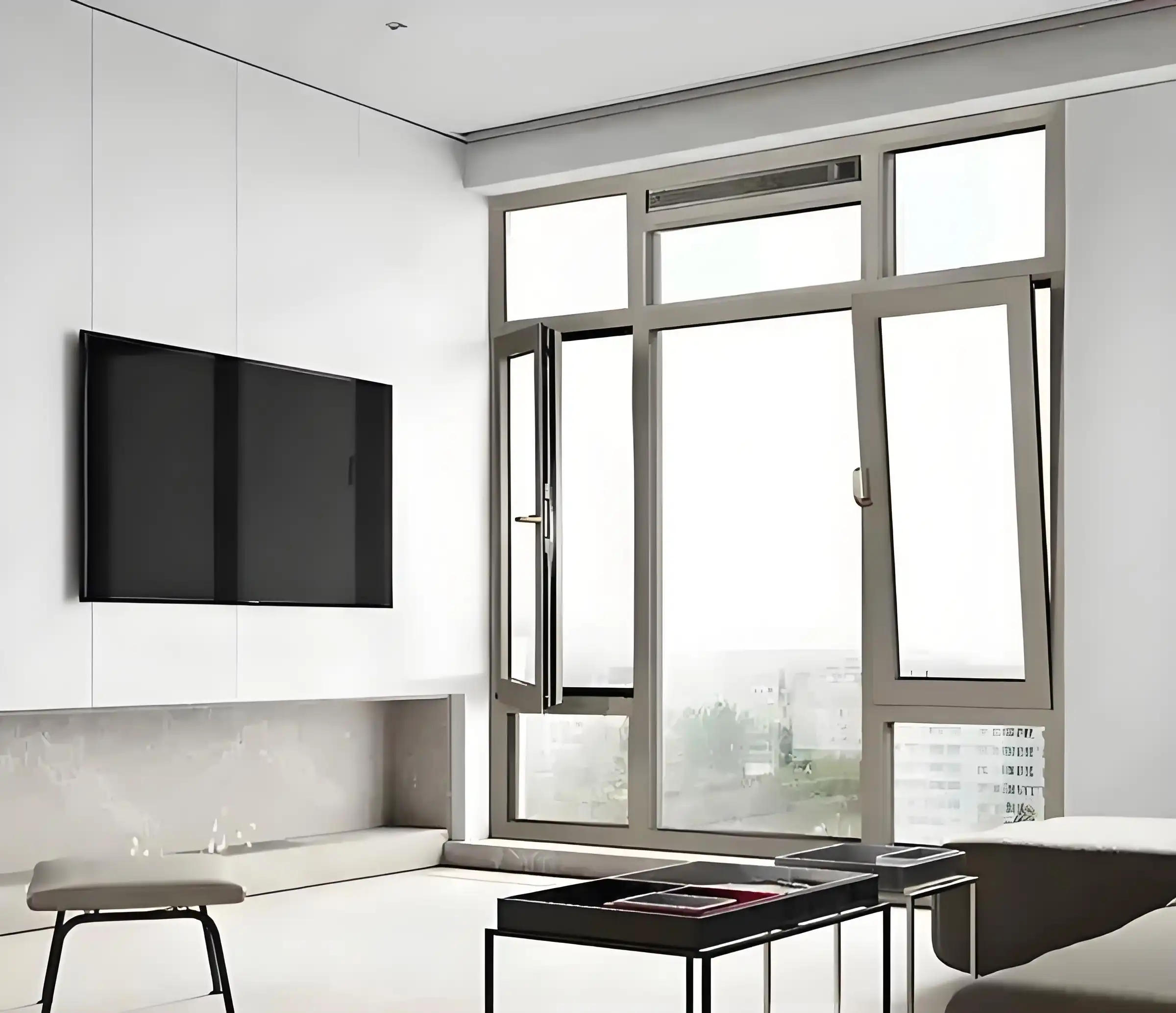

Understanding Aluminum Tilt Turn Windows

Aluminum Tilt Turn Windows are a sophisticated improvement in commercial glazing. They come from European building science, where design standards are based on energy efficiency and operational flexibility. The two-in-one system works with precise hardware. Turning the handle 90 degrees uses side-mounted hinges for the "turn" function, which opens the window fully and makes it easy to clean the outside glass from inside the building. When you turn the handle 180 degrees, the bottom springs open for the "tilt" function. This makes the window open 10-15 degrees inward at the top, letting in air while keeping it safe and protected from the weather.

This engineering solves some of the most important problems in commercial construction. High-rise office buildings are safer to maintain on the outside because repair can be done safely from the inside. Healthcare facilities and schools use tilt mode to make sure that fresh air is always flowing without putting people at risk or letting people in who aren't supposed to be there. When the doors are closed all the way, there are no obstructions to the views, and the ventilation can be changed to suit the needs of the business.

Customizable Design Options for Commercial Applications

Modern business projects need architects who can be flexible. Aluminum profiles can be changed in a lot of ways, including their sizes, finishes, and shapes. Commercial sizes run from 600mm x 800mm to 1200mm x 1800mm, but custom sizes can be made to fit the needs of a particular project. Some surface treatments are powder painting in RAL color standards, anodizing for better corrosion protection in coastal areas, and wood-grain finishes that look like real wood but keep the structural benefits of aluminum.

Different performance goals can be met by different glazing designs. Double glazing (18–24 mm thick) is a basic form of insulation that works well in mild climates. Triple glazing with a thickness of 32 to 40 mm provides the best energy efficiency, with Ug values of less than 0.6 W/m³K, which is required for passive house approval. Laminated glass options (6.38–12.76 mm) protect against impact and reduce noise, which is very important for commercial buildings in cities that have to deal with noise pollution from the street. Low-E coatings stop solar heat gain, which lowers the cooling needs of facades with a lot of glass.

Integration into Modern Commercial Construction

For integration to work, architects, MEP engineers, and envelope consultants need to work together during the early stages of design. Concrete, steel frames, and curtain wall systems are just some of the wall combinations that Aluminum Tilt Turn Windows can work with. To get rid of thermal bridges at installation nodes, you need detailed shop drawings that show the conditions of the sill, jamb, and head, as well as continuous insulation transitions. This information helps with energy models and PHI certification processes, where even small thermal bridges can hurt performance goals for the whole building.

Performance and Benefits in Commercial Buildings

Stakeholders in commercial buildings put a high value on performance measures that can be measured and have an effect on operational costs and tenant happiness. Aluminum Tilt Turn Windows have measurable benefits in terms of saving energy, reducing noise, making structures last longer, and meeting security standards.

Energy Efficiency Through Advanced Thermal Break Technology

Breaking the conductive metal route between the inside and outside worlds is important for thermal efficiency. High-performance systems have nylon thermal breaks that are at least 40 mm wide. These breaks act as an insulator inside the profile. With triple glazing and argon gas fills, these assemblies get Uw values of 0.7 to 0.8 W/m²K, which is good for passive house standards and lets you get LEED and BREEAM certification credits.

Savings can be seen and felt in building energy models. Putting in thermally broken tilt-turn units instead of single-pane aluminum windows in a 10,000-square-foot business building in Boston can cut its yearly heating costs by about 35–45%. The return on investment (ROI) can take anywhere from 7 to 10 years, based on local energy rates and incentive programs. The triple EPDM sealing system helps achieve Class 4 airtightness (≤0.1 m³/h·m² at 50 Pa pressure difference), which lowers the amount of air leakage that happens in older commercial windows.

Superior Soundproofing for Urban Environments

In urban commercial areas where outside noise gets in the way of work and tenant satisfaction, acoustic performance is very important. When you put together laminated glass, insulated glazing spaces, and compression sealing, you get Sound Transmission Class (STC) scores of 38 to 42 for double-glazed units and 42 to 48 for triple-glazed units. This attenuation changes the environment. For example, businesses near arterial roads have lower noise levels inside, going from 70–75 dB outside to 30–35 dB inside. This protects conversation privacy and focus zones.

Robust Multi-Point Locking and Security Compliance

There are strict security rules for commercial buildings, especially for healthcare and retail facilities on the ground floor. The multi-point European locking method connects steel hooks or rollers 3–7 times around the sash's edge, spreading out the force resistance and making it impossible to pry open. For general business use, this gear meets DIN EN 1627 resistance class RC2 standards. It can be updated to RC3 for higher security areas. Insurance companies are aware of these ratings, which could mean that commercial property premiums go down.

Low-Maintenance Durability for Lifecycle Value

Facility managers figure out the total cost of ownership over the next 20 to 30 years. Aluminum frames don't need to be painted as often as wood or steel frames do because they don't rust and have powder-coated finishes. The 6063-T5 aluminum alloy is very strong for its weight, so it can hold large glass units without the structure bowing. Hardware parts only need to have their moving parts oiled once a year and their corner bearings adjusted every so often. This is much less work than traditional casement or double-hung mechanisms, which need to have their seals replaced and their balance systems fixed on a regular basis.

Performance Note: The exact thermal, acoustic, and structural performance numbers rely on how the whole system is set up, including the type of glass used, the size of the frame, and how well it was installed. For specific projects, you should always look at test reports from the manufacturer that have been certified to ISO, CE, or AAMA standards.

Comparative Analysis: Aluminum Tilt Turn Windows vs Other Commercial Window Types

When businesses buy things, they have to carefully consider all of their options. This study looks at how durable, easy to maintain, cost-effective, and energy-efficient Aluminum Tilt Turn Windows are compared to common types of commercial windows.

Aluminum vs. Wood Frames

Wood is beautiful, warm, and naturally insulating, which makes it a good choice for small commercial projects and historic renovations. However, industrial wood windows need a lot of upkeep, like being refinished every two years and being treated for termites in areas where they are likely to be found. They can also warp from wetness, which makes seals and operation less reliable. When you take into account that wood needs more work and doesn't last as long (15–20 years vs. 30–40 years for aluminum), its lifecycle costs are usually 40–60% higher than those of aluminum over 25 years.

Aluminum vs. Vinyl (uPVC) Systems

Vinyl tilt-turn windows are competitive in terms of price; they are often priced 20–30% less than metal systems that do the same thing. Thru multi-chamber profiles and reinforced cores, thermal performance can get close to that of aluminum. But vinyl has problems when used in business settings: when wind blows, the structure deflects, limiting the largest sizes to about 40–50% of what metal can do. Long-term UV exposure weakens the color's stability, leading to chalking and fading within 10 to 15 years in places with a lot of sunlight. Developers who care about the environment point out that vinyl comes from petrochemicals and is hard to recycle, while metal can be recycled over and over again without losing any of its performance.

Aluminum vs. Fiberglass Options

Fiberglass frames are very good at keeping heat in and are about as strong as metal frames in terms of structure. The material is better at resisting cycles of thermal expansion and contraction than vinyl, so the seal stays strong even when temperatures change. But commercial fiberglass windows are still hard to come by, which limits design options and makes it harder to compete on price. Because they can't be made as quickly as aluminum, lead times are often 2 to 4 weeks longer. Because fiberglass supply lines are still pretty new, there is some risk when buying fiberglass for big business projects that need deliveries to happen in stages and the product to always be available.

Operational Efficiency Comparison

Commercial buildings in North America mostly use double-hung and horizontal sliding windows because they are easy to use and don't cost as much to install. These systems don't work as well as they could because the sliding mechanisms naturally let air thru the track interfaces, so they only achieve Class 2-3 airtightness, while tilt-turn compression seals achieve Class 4 airtightness. When casement windows open outward, they can get in the way of outdoor sunshades, cleaning equipment, and wind that can damage hardware if they are left open by accident.

These problems can be fixed with tilt-turn features. Inward operation gets rid of problems with the outside of the building. The tilt position lets air flow safely into empty rooms when no one is there, like when an office building is empty at nite or when a store is closed for the day. Maintenance workers can safely access glass surfaces on the outside from the inside, which is very important in high-rise buildings where exterior lifts or scaffolding are expensive.

ROI Considerations for Commercial Procurement

Initial funding is one part of the overall economy of a project. When bought, Aluminum Tilt Turn Windows usually cost 15–25% more than regular business window systems. This difference gets a lot smaller when you look at 20-year ownership:

• Energy savings: windows in well-insulated building frames can cut heating and cooling loads by 30 to 40 percent.
• Maintenance avoidance: Between $8 and $12 per square foot compared to wood alternatives because repairs and refinishing are not needed.
• Operational efficiency: Interior access cut cleaning costs by $0.50 to $0.75 per square foot per year.
• Extended lifespan: 30–40 years of use compared to 15–25 years for vinyl or wood, which means fewer replacement cycles.

Procurement and Installation Considerations for Commercial Projects

Strategic planning for buying and placement has a direct effect on how the project turns out. When buying something for a business, you need to pay attention to things like qualifying suppliers, customizing processes, coordinating tasks, and getting help after the installation is done. Aluminum Tilt Turn Windows procurement requires specific attention to technical validation.

Partnering with Certified Manufacturers

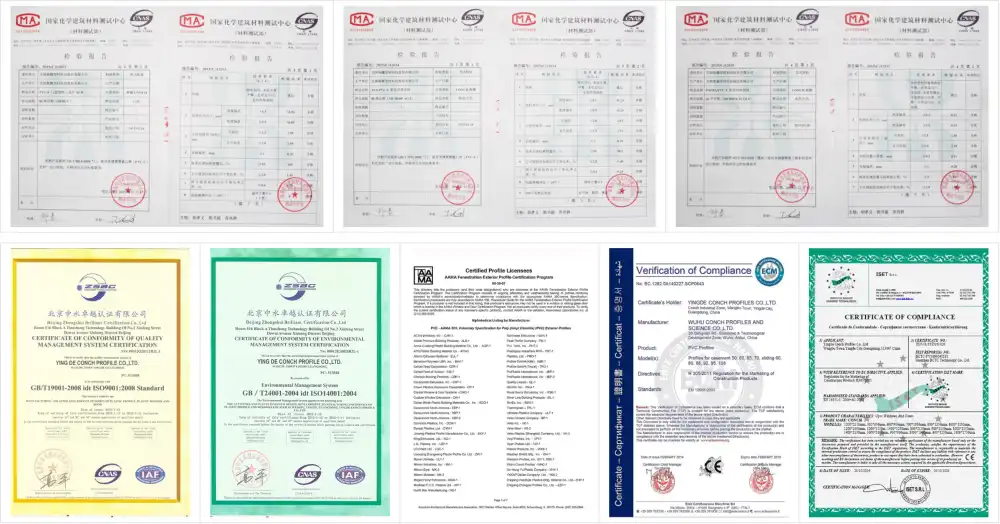

Before choosing a supplier, it's important to check their quality certifications and manufacturing capabilities. The ISO 9001 certification shows that the quality is managed in a systematic way, and the CE marking shows that the product meets European safety and performance standards. An AAMA (American Architectural Manufacturers Association) approval shows that the product has been tested to meet North American standards for things like air infiltration, water entry, and structural wind loads.

For commercial size, manufacturing ability is important. Suppliers should show off automated fabrication lines with CNC cutting to make sure that profiles and tolerances stay the same across large orders. Thermal break insertion machines and multi-head welding machines show that the company can safely make high-performance systems. Partnerships with well-known providers of raw materials, like main aluminum extruders, ensure stable supply chains and regular alloy quality, which cuts down on delays caused by lack of materials.

Custom Configuration and Ordering Process

Standard catalog sizes are rarely used for commercial work. The buying process starts with architectural plans that are turned into detailed shop drawings that show exact sizes, opening types (tilt-only, turn-only, or dual function), where to put hardware, and what kind of finish is needed. Using laser measurements or 3D scanning for digital templates makes sure they are accurate, especially in repair jobs where openings don't match up with the plans.

Project schedules are kept safe by being clear about lead times. Usually, it takes 25 to 30 days from the time an order is confirmed until it leaves the factory. Shipping times depend on where the package is going and how it is shipped. It takes 25–35 days for containers made in Asia to get to ports in North America by water, while it only takes 10–14 days for containers made in Europe to get to markets on the East Coast. For tight schedules, there are rush production options that cost more (15–20%), but standard timelines should be able to be met with enough planning.

Installation Requirements and Warranty Preservation

Professional installation is necessary for the guarantee to be effective and for the system to work properly. Manufacturers usually have requirements for certified installers and often offer training programs that teach the right way to shimming, apply sealant, and adjust hardware. Thermal efficiency is directly affected by how well the windows are put. Windows that aren't fixed properly can have U-values 30–50% lower than their rated value because of uncontrollable thermal bridging at the perimeter gaps.

Commercial orders now come with detailed installation guides and educational videos that show how to install the sill pan, prepare the rough hole, and add the final trim. Some makers offer on-site supervision services for big projects. During these services, factory reps check the installation and give real-time advice on how to fix problems during the first units, setting quality standards for the rest of the installs.

Reducing Logistics Costs Through Knockdown Shipping

Freight costs are very high for large commercial orders, especially when they come from other countries. Shipping configurations that are knocked down (not put together) can cut logistics costs by 25–35% compared to fully assembled units. Aluminum shapes, glass panels, and hardware are shipped separated in the best way possible, so that the containers are used to their fullest. On-site assembly needs trained workers, but it can be used in places that are hard to get to and lowers the risk of damage during transport. This method works especially well for developers who are in charge of multiple project sites because they can keep all of their parts in one place and then send them out as needed.

After-Sales Support and Long-Term Partnership

Complete help goes beyond just delivering. Profiles and hardware should be covered by warranties for at least 5 to 10 years, with clear terms that cover finish wear, seal failure, and motor problems. Respondent technical support helps with problems that happen in the field, like questions about how to change hardware, how to repair glass, and how to fix operational problems that tenants or facility managers tell.

Some manufacturers offer maintenance service packages that include yearly inspections, lubrication services, and hardware adjustments to make sure the machine keeps running at its best for as long as it's supposed to. These programs are similar to the proactive care methods that business building managers are using more and more to cut down on the cost of repairs and make assets last longer.

Why Choose Aluminum Tilt Turn Windows for Your Commercial Building?

Aluminum Tilt Turn Windows are a smart choice for business projects that are looking to the future because they combine performance data, changing building science, and legal trends.

Enhanced Energy Efficiency Aligned with Sustainability Goals

Building energy rules are getting stricter around the world. Several places in North America and Europe have adopted the IECC 2021, Passive House, and net-zero ready guidelines. Aluminum Tilt Turn Windows designed with thermal breaks of 40 mm or more and triple glazing options meet these higher standards, protecting buildings against future code changes that are likely to happen. Corporate pledges to sustainability are becoming more and more important in the buying process. High-performance glazing can help achieve LEED and BREEAM points, which are important for meeting certification goals that raise the value of an asset and make it more appealing to tenants.

Verified Performance Through Real-World Case Studies

Performance claims are backed up by multiple business setups. In Munich, aluminum windows from the 1980s were replaced with thermally broken tilt-turn units during an office makeover in 2021. This led to a 42% drop in heating energy use and a 38% drop in cooling load, as shown by a study of utility bills. A Toronto healthcare center expansion called for triple-glazed Aluminum Tilt Turn Windows to be installed in all of the patient rooms. After the windows were installed, surveys showed that patient happiness scores had gone up significantly, which was partly due to better sound control and natural ventilation.

Technological Advancements Supporting Future-Ready Buildings

New innovations make systems that are already strong even better. Automated motorization options can work with building management systems, which lets natural ventilation and HVAC operations be controlled from one place. Smart sensors check the quality of the air inside and change the tilt positions automatically to keep CO2 levels at the right level without any help from a person. Even tho it's very expensive right now, electrochromic glazing integration offers dynamic sun control within the same frame systems, which points to more advanced building shell capabilities.

Balancing Aesthetics with Performance Requirements

When it comes to commercial design, both technical efficiency and visual effect are important. Because aluminum is strong, it's possible for frame lengths to be as thin as 65–75 mm, which maximizes glass area for renters who value views and natural light. The material can be finished in a number of different ways, making it compatible with modern design styles ranging from industrial minimalism to traditional surfaces that need details that are appropriate for their historical context. This allows for more style options instead of the compromises that come with plastic or fiberglass options, which limit design choices with fewer finish choices and bulkier shapes.

You can get full specification sheets with tested U-values, air infiltration rates, structural load estimates, and acoustic performance data from approved makers. Installation guides with detailed step-by-step guidance on how to assemble, waterproof, and adjust help with teaching contractors and making sure the quality of the work. Video resources that show the right way to install things cut down on mistakes in the field and warranty claims. Customization options include custom sizes, non-standard hardware setups, and finish matching for projects that are being built in stages and need to stay consistent over multiple building seasons.

Conclusion

Aluminum Tilt Turn Windows have real benefits for commercial building projects that focus on energy efficiency, operational flexibility, and long-term value. Their two-in-one design, advanced thermal engineering, and strong security features meet the main needs of people who build passive houses, high-performance buildings, and institutions that manage facilities. Comparative analysis shows how well a product fits in comparison to other frame materials and window types, especially when looking at the total cost of ownership over many years of use.

These windows are a reliable way to meet strict building codes and sustainability goals because they are made by strategic partnerships with certified manufacturers who can offer customization, clear logistics, and full technical support. Aluminum Tilt Turn Windows are a good investment for the future because they have been used successfully in many commercial settings, such as offices, healthcare facilities, schools, and stores. The technology is also constantly getting better at automating tasks and integrating with other systems.

FAQ

Can aluminum tilt turn windows handle large commercial opening sizes?

This is possible because the commercial-grade 6063-T5 Aluminum Tilt Turn Windows alloy can support much larger sash sizes than vinyl alternatives. Standard business units can fit spaces up to 1200mm x 1800mm, and when building conditions allow, reinforced profiles can make special sizes bigger than these. The material is strong for its weight, so even triple-glazed units that weigh 40 to 50 kg per square meter don't affect how smoothly it works.

How do thermal performance metrics compare to double-glazed uPVC systems?

With ≥40mm polyamide thermal breaks and triple glass, high-performance Aluminum Tilt Turn Windows get Uw values of 0.7 to 0.8 W/m²K, which is the same as premium uPVC systems. Standard uPVC profiles have some thermal advantages because of the way the material is made, but the difference is much smaller when aluminum thermal breaks are properly engineered. When it comes to structural capacity, the major difference is that aluminum keeps working well at bigger sizes, while uPVC needs steel reinforcements that cause thermal bridges.

What specifications should procurement managers verify when ordering?

Important things to check are the thermal break width (at least 40 mm for passive house applications), the glass specifications with Ug values, the hardware brand and certification (Roto NT or SIEGENIA is best for commercial durability), the sealing system configuration (at least three EPDM layers), and full test reports that show the U-value, air infiltration (Class 4 target), water penetration, and structural load performance. Ask for installation detail plans that show how the border will be sealed and how thermal bridges will be avoided at the mounting conditions.

Partner with Haolv Building Materials for Your Commercial Window Projects

When it comes to commercial-grade Aluminum Tilt Turn Windows, Haolv Building Materials has 19 years of experience making them. Our enterprise-level products use a high-strength 6063-T5 aluminum alloy with a profile thickness of 1.4 to 2.0 mm and come with extra thermal break technology designed to meet the needs of passive houses. European locking methods with multiple points offer higher security, and triple EPDM seals provide excellent airtightness that meets Class 4 standards. Our ISO, CE, and AAMA certifications show that we have good quality control and that our products work well in foreign markets.

For commercial purchases, we offer a high level of customization, including custom sizes, RAL color matching, unique hardware setups, and a range of glazing options, such as double- and triple-pane low-E systems. Our partnership with CONCH guaranties consistent quality of raw materials and a reliable supply chain, which is very important for commercial projects that are completed in stages. Standard production takes 25 to 30 days, and knockdown shipping options can cut the cost of shipping by up to 30% for large orders.

Technical support includes detailed specification sheets, installation video tutorials, and weatherproofing detail drawings to help contractors do their jobs and make sure the warranty is followed. Our engineering team can help you with thermal modeling, PHI certification paperwork, and finding unique solutions for tricky facade problems. Email us at kristin@haolvwindows.com to talk about the needs of your project and get full quotes. As a company with a lot of experience making Aluminum Tilt Turn Windows, we offer the performance, dependability, and support that commercial building projects need to be successful.

References

1. Passive House Institute. "Certified Passive House Components: Window Requirements and Testing Protocols." Passive House Institute Technical Guidelines, 2022.

2. American Architectural Manufacturers Association. "AAMA 101: Voluntary Performance Specification for Windows, Skylights and Glass Doors." AAMA Standards Publication, 2020.

3. International Energy Agency. "Energy Efficient Building Envelopes: Performance Analysis of Window Systems in Commercial Construction." IEA Energy in Buildings and Communities Programme, 2021.

4. European Committee for Standardization. "EN 14351-1: Windows and Doors – Product Standard, Performance Characteristics." CEN Technical Standards, 2019.

5. National Fenestration Rating Council. "NFRC Technical Document 100: Procedure for Determining Fenestration Product U-factors." NFRC Certification Standards, 2021.

6. Building Science Corporation. "Thermal Performance of Window Systems in High-Performance Commercial Buildings: Case Studies and Best Practices." Building Science Press, 2020.
