Why Choose Thermal Break Aluminum Sliding Window for Buildings?

Selecting the right fenestration system significantly impacts a building's long-term operational efficiency and project budget. Thermal Break Aluminum Sliding Windows address the dual challenge of meeting stringent energy codes while optimizing procurement logistics. By integrating a polyamide insulating barrier within the aluminum frame, these windows interrupt thermal conductivity—resulting in U-values ≤1.5 W/m²K—while their horizontal sliding mechanism conserves interior space. For commercial developers and OEM window brands managing large-scale projects across diverse climates, this technology delivers measurable energy savings, structural durability, and installation flexibility that traditional non-thermal systems cannot match.

Understanding Thermal Break Aluminum Sliding Windows

What Makes Thermal Break Technology Essential

The thermal break, which is a special polyamide strip put between the inside and outside aluminum profiles, is the most important part of energy-efficient fenestration. This non-conductive barrier stops heat from moving through the metal frame, which is different from how aluminum normally conducts heat. We start by carefully milling 6063-T5 aluminum extrusions with walls that are between 1.4 and 2.0 mm thick. Next, we manually lock polyamide insulation strips that are at least 24 mm wide into the profile channels. Compared to frames made of continuous metal, this break cuts heat bridges by up to 60%.

This thermal design is improved by the horizontal moving action, which gets rid of hinges and other hardware on the outside that could break the seal. High-quality twin rollers move along tracks made of stainless steel or aluminum. They can hold sashes that weigh up to 150 kg and keep working quietly for more than 20,000 open-and-close cycles. The low heat conductivity of the frame and the different types of glass—tempered, double-glazed, or laminated—work together to provide complete protection from the outside to the inside. Thermal Break Aluminum Sliding Windows offer high-performance insulation across the entire unit.

Materials and Design Features That Enhance Performance

Beside the thermal break itself, the window also has a number of other built-in parts that make it work better. The dual-sealing system has brush weatherstripping and EPDM rubber seals that work together to make overlapped barriers that stop water (≥300Pa water tightness rating) and air from leaking. This method works better than older designs with only one seal, especially during wind-driven rain events that are common in business projects along the coast.

The slim profile design makes the most of the visible glass area, which is often more than 75% of the total frame opening. This lets in a lot of natural light and keeps views clear. When building high-end business lobbies or private penthouses where transparency is important, architects ask for this feature to be included. Powder coating in unique RAL colors or anodizing up to 25 microns thick are two surface finishes that are made to last. Both are designed to resist UV damage and salt spray rust according to ISO 9227 standards.

Comparative Insights: Thermal Break vs Non-Thermal Break and Other Window Types

Energy Performance and Condensation Control

Standard aluminum sliding windows that don't have thermal breaks have U-values of about 5.0–6.0 W/m²K, which means they lose heat five times faster than windows that do have thermal breaks. In mild climates, this means that the HVAC system has to work 25–40% harder to keep the inside of the building comfortable during heating seasons. More importantly, the cold inside surface of non-thermal frames falls below the dew point temperature in places with a lot of dampness. This causes condensation, which damages finishes and encourages mold growth, which is a problem in healthcare and leisure facilities.

Field data from commercial towers in Dubai and London shows that adding Thermal Break Aluminum Sliding Windows to older buildings cut their yearly cooling costs by an average of 18–22%. During the summer, the insulating barrier stops heat from the outside from escaping and keeps the air inside warm during the winter. uPVC sliding windows, on the other hand, don't have the structural rigidity to span big openings wider than 1800 mm without reinforcement. This means that metal is the better choice for floor-to-ceiling glazing in luxury rooms or rooftop decks.

Durability and Lifecycle Cost Analysis

Total cost of ownership is directly related to how long something lasts. In contrast to vinyl profiles, which can shrink or change color, aluminum alloy 6063-T5 doesn't bend when temperatures change from -40°C to +80°C and keeps its shape. If you protect aluminum frames with good finishes, they should last 30 to 50 years with little upkeep—just cleaning the tracks every so often and lubricating the rollers once a year should be enough.

Compared to other types of windows, thermal break aluminum windows are worth the 15–25% more they cost at first because they save money on energy bills and don't need to be replaced as often. Energy modeling studies show that a mid-rise apartment building with 500 units can recoup the extra in 4–6 years just by saving money on utilities. Fiberglass alternatives, while sturdy, don't allow for as many customization options and take longer to make custom profiles, which isn't good for commercial development's quick building plans.

Procurement Considerations for Thermal Break Aluminum Sliding Windows

Supplier Selection Criteria and Certification Requirements

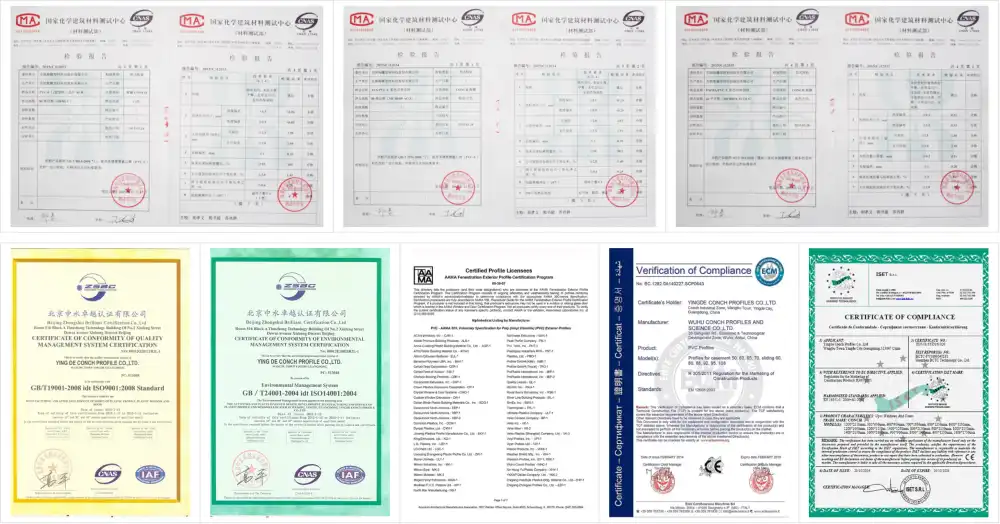

When looking at manufacturers, project managers should make sure they follow ISO 9001 quality management systems, CE marking for European markets, and AAMA certification for North American performance standards. Adherence to dimensional tolerances (±0.5mm), consistent material sourcing, and batch-tested structural integrity are all signs of these credentials. Third-party factory audits, which are often required by big clients or sovereign wealth fund managers, check the factory's ability to produce, its quality control procedures, and its ability to protect intellectual property for OEM partnerships.

Material tracking is just as important. Strategic relationships with trustworthy sources like CONCH make sure that the quality of the aluminum billet stays the same throughout production runs. This stops microstructural flaws that lower the extrusion strength. Find out if the company has its own testing labs where they can do wind load simulations (EN 12210 Class B3/C4), water spray tests (ASTM E331), and thermal cycling as described in AAMA 501.

Technical calculation sheets, shop drawing approvals, and installation manuals should all be included in documentation packages. These are important deliverables for curtain wall consultants who are in charge of coordinating multiple trades. Selecting a reliable manufacturer of Thermal Break Aluminum Sliding Windows ensures these standards are met.

Lead Times, Customization, and Logistics Optimization

Standard product availability cuts down on time, but most business projects need custom specs, like non-standard sizes, named hardware, or finishes that match the color of the building. Manufacturers with a lot of experience can handle these changes within 25–30 day production windows, as long as the order quantity is high enough to support setting up a custom extrusion die (usually cheaper than 200 units).

Knock-down (KD) assembly is a transformative procurement strategy that involves shipping window frames and glass panels separately and then putting them together on-site. This method cuts the size of the container by about 30%, which lowers the cost of ocean freight and makes customs clearance easier, since glass and metal parts often have different tax classifications.

Regional distributors get frames that are already made with gasket channels and holes that have already been drilled in them. They then glaze tempered units using the spacer kits and sealant that are sent to them. Installation films and step-by-step guides make sure that field teams can keep the same level of accuracy as the factory, even if they don't have any experience with fenestration.

Energy Efficiency and Sustainability Impact

Quantifiable Savings and Green Building Compliance

Energy experts who model HVAC loads say that in mixed-humid climates, replacing normal aluminum windows with Thermal Break Aluminum Sliding Windows can cut annual energy use by 180–240 kWh per square meter of facade area. At commercial electricity rates, this means that a 10,000 m² office tower with a 40% glazing ratio will save between $15,000 and $25,000 a year on electricity costs. When peak-demand charge decreases for summer cooling peaks are taken into account, payback times get even shorter.

These improvements in performance directly help meet LEED and BREEAM point goals in the Energy and Atmosphere categories. To get LEED v4 BD+C certification, windows must have U-values of less than 1.5 W/m²K and SHGC values of less than 0.30. Whole-building energy models show that the buildings' energy efficiency has improved by 15–25% compared to the baseline, which is needed for higher credit levels. Low-conductivity glazing is also praised by BREEAM assessments under Ene 01 and Health & Wellbeing HEA 01 criteria, which take into account thermal comfort and daylighting.

Long-Term ROI and Asset Value Enhancement

In addition to saving money on operations, thermally efficient facades make a property more marketable. Class-A office renters are asking for workspaces that meet health standards, such as having a lot of natural light, stable temperatures, and low background noise. Commercial real estate data show that buildings with these features fetch 8–12% higher rents and have faster lease-up rates than competitors that aren't as energy-efficient.

When parts are correctly defined, maintenance costs stay low. With aluminum that doesn't rust, gaskets that don't break down in UV light, and nylon rollers that grease themselves, service calls are kept to a minimum. Building managers say that thermal break sliding windows only need to be serviced every three to five years to replace the seals or adjust the hardware. This is in contrast to operable casement systems with complex multi-point locks, which need to be serviced every year.

Why Thermal Break Aluminum Sliding Windows Are the Rational Choice for B2B Buyers

Addressing Technology Gaps in Traditional Solutions

Older window and door systems have major flaws: single-pane metal lets too much heat escape, fixed windows don't let in enough air flow, and big frame systems take up valuable floor space. Thermal Break Aluminum Sliding Windows combine solutions: they insulate like double-hung vinyl windows, let air flow through with movable sashes, and save room in a way that swing-out designs can't.

The horizontal sliding mechanism works well in city high-rises where there are exterior clearance limits that make it impossible for windows to open outward. Sash panels stack neatly within the frame's depth, which keeps entry to the deck open and meets fire escape standards. Single or double track setups can be used depending on the purpose. Single tracks maximize the glass area for panoramic views, while double tracks let two sashes operate independently for cross-ventilation control.

Tailored Specifications for Project Success

Aligning product specs with design purpose and site conditions is key to making a business successful. Coastal developments in the Middle East need marine-grade anodized finishes and stronger corner joints to handle wear and tear from sandstorms and changes in humidity. In European heritage areas, projects may need to have narrow sightlines and powder coat colors that match the historic facades. Australian homes that are meant to be built in high-risk bushfire areas need toughened safety glass and locks that won't catch fire.

Reputable makers offer technical help during the whole design process. They figure out wind load limits for different elevations, suggest glass thickness based on sash sizes, and provide CAD details for integrating curtain walls. This way of working together cuts down on the number of RFIs (Requests for Information) during building and stops expensive changes being made in the field.

Performance Disclaimer: The actual thermal, structural, and acoustic performance metrics will depend on how the building is finished, how well it was installed, and the conditions at the site. When making sure that project standards are met, you should always look at certified test results and product datasheets.

Conclusion

The Thermal Break Aluminum Sliding Windows combine the energy savings, structural performance, and buying options that today's business building industry needs. The polyamide insulating barrier stops heat transfer to levels that meet strict international standards. The sliding mechanism saves space and makes maintenance easier. Comparative testing shows that these systems are better than non-thermal metal, uPVC, and fiberglass options in terms of longevity, cost over time, and ability to be customized.

For project leaders and OEM brand executives who are in charge of multimillion-dollar facade budgets, working with qualified makers who offer full engineering support, knock-down logistics options, and quick turnaround times is the best way to make sure on-time delivery and long-term asset value. Buildings that use thermal break technology in a smart way can get green certifications, lower their operating costs, and command higher market positions.

FAQ

Are thermal break aluminum sliding windows suitable for all climate zones?

Yes, these windows work well in warm, temperate, and cold areas as long as they are properly installed. In places like the Middle East that are hot and muggy, putting in Thermal Break Aluminum Sliding Windows and Low-E double glass cuts down on solar heat gain and stops condensation from forming inside. For installations in cold places, better insulation keeps the inside surface temperatures above the dew point, which stops the frost that usually forms on standard aluminum.

How does installation quality affect energy performance?

At least 30% of how well a window works depends on how well it was installed. Low-expansion foam or backer rod plus caulk must be used to fill in any gaps between the frame and rough hole so that air doesn't get in. When tracks aren't lined up right, sashes sit unevenly, which makes it harder for the weatherstripping to stick. We offer full installation manuals, instructional videos, and technical support to make sure that field teams achieve the performance that was meant by the factory. This is especially important when planning knock-down assembly on projects with multiple floors.

What warranty coverage should I expect?

Standard warranties in the industry cover hardware parts for 5 to 10 years and frame integrity and finish durability for 10 to 15 years. The warranty on insulated glass (IG) varies by company, but most cover seal failure for 10 years. Find out if the guarantee covers repair on-site or requires sending the item back, and make sure it still works when approved installers are used for knock-down assembly configurations.

Partner With a Trusted Thermal Break Aluminum Sliding Window Manufacturer

Haolv Building Materials has been making high-quality Thermal Break Aluminum Sliding Windows for 19 years and has designed them to meet the needs of both business and household projects. Our ISO, CE, and AAMA-certified factories use both automatic extrusion lines and precise CNC cutting to make sure that the quality of all orders, from 200 to more than 2,000 units, is the same. Each window has 6063-T5 aluminum shapes with walls that are 1.4–2.0 mm thick, nylon thermal breaks that are 24 mm or more, and two-sealing systems that have been tested to meet international standards.

We know how hard it is to do global buying when there are tight deadlines, limited budgets, and problems with logistics. Because of this, we offer full customization options for sizes, finishes, hardware, and glass specifications, along with knock-down assembly options that cut shipping costs by 30% and speed up installation on-site.

Our engineering team gives you technical calculation sheets, AutoCAD shop drawings, installation videos, and step-by-step assembly manuals so that you can work with your curtain wall consultants and construction managers without any problems. We can help with your project from the planning stages all the way through to the final finishing. Our delivery times are 25 to 30 days, and our smart material partnerships ensure a stable supply chain.

Explore how our thermal break aluminum sliding window systems can make your next building better. You can email Haolv Building Materials at kristin@haolvwindows.com or go to haolvbuilding.com to get information about their products, ask for samples, or get a personalized technical advice. Let's work together to build structures that use less energy and last longer.

References

1. American Architectural Manufacturers Association (AAMA). Performance Standards for Thermal Break Aluminum Windows and Doors. AAMA 501-17. Schaumburg: AAMA Publications, 2017.

2. International Organization for Standardization. Thermal Performance of Windows, Doors and Shutters — Calculation of Thermal Transmittance. ISO 10077-1:2017. Geneva: ISO Central Secretariat, 2017.

3. U.S. Green Building Council. LEED v4 for Building Design and Construction: Energy and Atmosphere Credit Requirements. Washington: USGBC Technical Manual, 2020.

4. European Committee for Standardization. Windows and Doors — Resistance to Wind Load — Test Method and Classification. EN 12210:2016. Brussels: CEN Publications, 2016.

5. Lstiburek, Joseph. "Thermal Bridging in Building Envelopes: Solutions for High-Performance Façades." Building Science Digest, vol. 163, Building Science Corporation, 2018, pp. 12–28.

6. Heschong, Lisa, and Robert Clear. Daylight and Productivity: Skylights and Windows in Commercial Buildings. Fair Oaks: Heschong Mahone Group for Pacific Gas & Electric, 2019.
