A Practical Guide to Horizontal Sliding UPVC Windows for High Rise Residential Projects

Choosing the right Horizontal Sliding UPVC Window comes down to how the sashes travel, how the frame is reinforced, and whether the unit can hold its shape on an upper floor. A horizontal slider moves inside its own frame instead of swinging, which is why it suits apartment balconies, corridors and rooms where nothing may project beyond the wall line. Four variables decide whether an order performs as specified: the profile chamber design and the steel reinforcement, the track and roller grade, the brush sealing and anti-lift arrangement, and the glazing specification. For trade buyers and procurement teams supplying high rise residential, budget housing and rental refurbishment projects, those four are also what decide whether the first container arrives without a claim against it.

Understanding Horizontal Sliding UPVC Windows: Key Features and Benefits

What Makes A Horizontal Sliding UPVC Window Different From A Casement Window?

A horizontal slider travels sideways inside its own frame, so it needs no clearance inside the room and none outside the wall. That is the whole reason it dominates apartment and rental projects: a balcony door or a bedroom window can be operated with furniture against it, and nothing projects over a walkway, a fire escape or a neighbouring balcony. In exchange, the unit seals along the overlap between the sashes and along a brush line rather than on a single compressed gasket, which is why the brush seal and the track drainage decide water performance.

The product page states a UPVC multi-chamber profile with steel reinforcement, a dual-track standard sliding design, heavy-duty rollers with sliding locks, a brush sealing system with an anti-lift device, glass options of tempered, double glazing and laminated, and sound insulation of 25 to 35 dB. Those are the figures a buyer should be quoting back in writing, because the chamber count, the reinforcement and the roller grade are exactly what changes when a specification is left verbal.

Why Choose UPVC For High Rise Residential Projects?

The economics of a residential tower are driven by lifecycle cost rather than by purchase price. A UPVC frame is finished material rather than a painted surface, so there is no repainting cycle in the maintenance budget and no access equipment to hire every few years, which matters most on a facade that is expensive to reach. The product page describes the profile as standing up to climate, dampness and ultraviolet exposure, with a wipe down keeping it fresh and no repainting or refinishing required.

Frame size is the other decision. The product page lists 70 mm or 80 mm frames selected according to the requirement, and improved base reinforcement for larger units. On an upper floor the wind pressure rises with height, so a wide opening on an exposed elevation belongs on the heavier frame with the heavier reinforcement rather than on the smallest section that will fit the hole. That choice is made once, at specification, and cannot be corrected later.

Bulk Procurement Considerations for Trade Buyers

On a residential development the shipment has to match the approved sample opening for opening. Confirm the chamber design and the steel reinforcement, the 70 mm or 80 mm frame, the roller grade, the brush seal and the anti-lift device, the sliding lock, the glass build-up and the colour in writing before the order is released. These are the items that drift first when an order is placed from a showroom sample rather than from a data sheet.

Mixed loads are how most distributors start, and a sliding line mixes easily because colour and glazing can be varied without changing the section. The supplier accepts initial orders of 10 to 20 units with neutral packaging or OEM branding, and sample support is available so quality can be verified before a full order commitment. A first container that carries both white and wood grain gives a market test without betting the whole load on one finish.

Climate Considerations: How Weather Conditions Affect Horizontal Sliding UPVC Window Performance

Cold Climate Requirements and Thermal Engineering

In a cold climate the multi-chamber profile and its steel reinforcement are what hold the performance, and they also hold the shape. PVC-U expands and contracts more than aluminium for the same temperature change, so a long sash needs internal reinforcement to stay straight and to keep the overlap seal closed; a long unreinforced sash bows, and the visible result is a draught along the middle of the window where no gasket can reach it.

The product page describes thermal insulation as moderate and states a sound insulation of 25 to 35 dB, which is the honest way to position a sliding vinyl window: it is a good value solution rather than a high performance one. Cold climate specifications should therefore consider a double glazed unit with a low emissive coating and a warm edge spacer, and should confirm that the reinforcement runs the full length of every sash.

Hot and Humid Climate Adaptations

In hot and humid markets the frame material is an advantage rather than a compromise. UPVC does not absorb moisture, does not corrode and does not need a coating to resist damp, which is why the product page describes it as standing up to climate, dampness and ultraviolet damage. What decides service life is whether the track drains and whether water is left standing in the sill, because standing water is what grows mould and stains the reveal.

Solar control then matters more than insulation. A low emissive coating reduces the solar gain that drives cooling load, and colour choice is a performance decision as well as a design one: a white profile on a sun-exposed elevation runs cooler than a dark one, and a wood grain foil has to be a good quality laminate to survive years of ultraviolet exposure without fading or lifting.

Coastal And High Wind Zone Specifications

Wind pressure rises with height and with exposure, so on a high rise the frame, the reinforcement and the fixings are sized against a calculated pressure for the project rather than against a generic product list. The anti-lift device listed on the product page is not an optional extra at height: it is the component that stops a panel being lifted out of its track, and a specification that omits it has left a security and safety gap in the elevation.

Salt and grit attack the movement parts first. The product page lists heavy-duty stainless steel rollers for smooth and long-lasting operation, which is the correct grade for a coastal or dusty site, and it lists brush seals to block draughts and reduce noise infiltration. Stainless hardware, a neutral cure silicone in the glazing pocket and correctly specified fixings are what keep a slider operating smoothly after several seasons on an exposed elevation.

Comparing Horizontal Sliding UPVC Windows to Aluminium Sliding Windows

Performance Analysis Against Aluminium And Timber Sliding Frames

At procurement level the useful comparison is between UPVC, aluminium and timber. An aluminium slider offers a narrower sightline and higher structural strength but conducts heat unless it carries a thermal break, and it costs more per frame. Timber insulates well and suits heritage elevations but moves with moisture, needs a coating cycle and cannot realistically be serviced on a high facade without external access.

A UPVC slider is the lowest cost of the three, insulates to a moderate standard and needs no painting, which is what makes it the default for rental and affordable housing. A PVC-U profile has a service life in the region of 20 to 35 years and is recyclable, so it also answers the lifecycle question that a housing association or a developer will ask. The trade off is a bulkier sightline and a lower structural ceiling, which is why very wide or very exposed openings still belong on a reinforced frame or on aluminium.

Glazing Options And Energy Performance

The product page lists tempered glass as impact resistant and suited to high traffic areas, double glazing for improved thermal and sound insulation, and laminated glass for added security and ultraviolet protection. All three can be supplied in the same frame section, so the choice is made per opening rather than per building, which matters on a mixed use elevation where a ground floor entrance and a tenth floor bedroom have very different requirements.

On the frame side the gain comes from the assembly rather than from the glass alone. A sealed unit with a low emissive coating, a warm edge spacer and an inert gas fill performs noticeably better than plain glass of the same thickness without changing the frame geometry. Because the rollers carry the panel, glass weight and roller rating have to be checked together: a heavier glazed panel on an under-rated roller is the most common source of a sash that no longer runs smoothly.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification And Compliance Standards

Windows that cross a border are checked against published standards. EN 14351-1 is the European product standard for windows and doors, EN 12207 classifies air permeability, EN 12208 watertightness and EN 12210 resistance to wind load, AAMA 101 covers vinyl and aluminium windows for North American projects, and ISO 9001 covers the manufacturing quality system. The product page states that these windows are CE, ISO and AAMA compliant, which simplifies the customs conversation. Ask for the documentation with the quotation rather than after production starts, and check that the glass in the schedule carries the safety classification the project requires.

Customization Capabilities And Order Flexibility

The product page lists full OEM and ODM services: 70 mm or 80 mm frames selected for the separation requirement, improved base reinforcement for larger units, white, wood grain or custom colours, and a choice of tempered, double or laminated glazing with heavy-duty stainless steel rollers and brush seals. For a distributor the practical limit is the frame geometry and the roller rating, because panel width and panel weight are fixed by the section and the hardware. Anything outside the standard range needs a drawing check before the order is confirmed, because a drawing check costs far less than a remake.

Logistics And Installation Support

A horizontal slider packs efficiently because frames and sashes travel as separate items that nest. In practice the frames are stacked true and braced so they cannot rack, the sashes are protected on the edges, the rollers and the sliding locks travel boxed rather than fitted, and the anti-lift components are packed with the hardware so they cannot be left off site. Hardware that arrives loose and rollers that arrive full of grit are the two most common reasons a specification that looks correct performs badly on the day of installation.

On site the opening must be square and level, the track must be true and the drainage path clear before the frame is packed and fixed, because a twisted frame cannot be corrected by adjusting the sashes afterwards. The anti-lift device, the sliding lock and the brush seal should be checked on every opening before handover rather than on a sample. The product page notes that installation is typically handled by the buyer local contractors, and that application guidance and system solutions are provided with the order, which keeps the installer from solving a specification problem with sealant.

Maintenance And Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

Maintenance is limited to cleaning and inspecting, because there is no coating to renew. A mild pH neutral detergent is all the profile needs, and abrasive cleaners and solvents are avoided because they attack the surface and the brush seals. In coastal, dusty or monsoon environments the track, the drainage slots and the brush seals are checked more often, since salt, grit and standing water are what let water past a seal that is otherwise sound.

Early Warning Signs And Component Replacement

The first signs appear at the track and the brush line. A draught along the overlap between panels, water staining on the inside sill after rain, or a sash that no longer slides evenly all point to components that can be replaced without changing the frame, which is a low cost repair rather than a replacement. On an upper floor those checks matter more, because a panel that has started to lift or a lock that no longer engages is a safety issue as well as a comfort issue.

Fogging inside a sealed unit means the edge seal has failed and moisture has entered the cavity, and at that point the glass unit is replaced rather than repaired. Stiff movement usually traces to a worn roller or grit in the track, and a new roller set restores operation for a fraction of the cost of a new window; a brush seal that has flattened reduces both airtightness and the acoustic performance the page quotes.

Performance Enhancement Options

Because the frame, the seals and the glass set the ceiling, the upgrades worth offering restore or raise those three. Replacing flattened brush seals, fitting a new roller set and clearing the drainage brings back the original weather performance at almost no cost, and reglazing with a low emissive or laminated unit raises thermal, acoustic or security performance without touching the frame.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Choosing a horizontal sliding UPVC window for a high rise residential project comes down to four decisions: confirming the multi-chamber profile and the steel reinforcement that keeps a long sash straight, selecting the 70 mm or 80 mm frame and the roller grade against the panel size and the wind pressure at that height, specifying the brush seal with the anti-lift device as standard rather than as an option, and matching the glazing to the thermal, acoustic and safety target of each opening. A window built on a reinforced multi-chamber profile with heavy-duty stainless steel rollers, a brush sealing system and 25 to 35 dB of sound reduction covers the majority of residential and rental openings, and the difference between a dependable supplier and a commodity vendor is verifiable certification, real customisation capability and logistics support.

FAQ

Q1: Why specify vinyl rather than aluminium for a high rise residential project?

A: Lifecycle cost and maintenance access. A UPVC frame is finished material, so there is no repainting cycle and no external access equipment to hire, which matters most on a facade that is expensive to reach, and the product page lists a wipe down as the only routine attention. Aluminium gives a narrower sightline and a higher structural ceiling, so the usual split is vinyl for standard residential openings and aluminium for the widest or most exposed ones.

Q2: What exactly does the anti-lift device do?

A: It stops a sliding panel being lifted out of its track from outside, which is a security function as well as a structural one. The product page lists it together with the brush sealing system, and it should be treated as a standard item in the specification rather than as an optional extra, because on an upper floor a panel that can be lifted out is a safety gap as well as an intrusion risk.

Q3: What thermal and acoustic performance can I expect?

A: The product page describes thermal insulation as moderate and states sound insulation of 25 to 35 dB, which positions this window as a good value solution rather than a high performance one. Where a project needs more, a double glazed unit with a low emissive coating and a warm edge spacer is the standard way to improve it without changing the frame, and the realised figures still depend on how the frame is sealed into the wall.

Q4: What are typical lead times and minimum order quantities?

A: With an established supply chain and sufficient stock, orders ship within 25 to 30 days from confirmation, and the product page quotes the same figure for customised requirements. Initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding, and sample support is available so a new market can be tested without committing to a full container.

Partner with Haolv Building Materials for Horizontal Sliding UPVC Windows

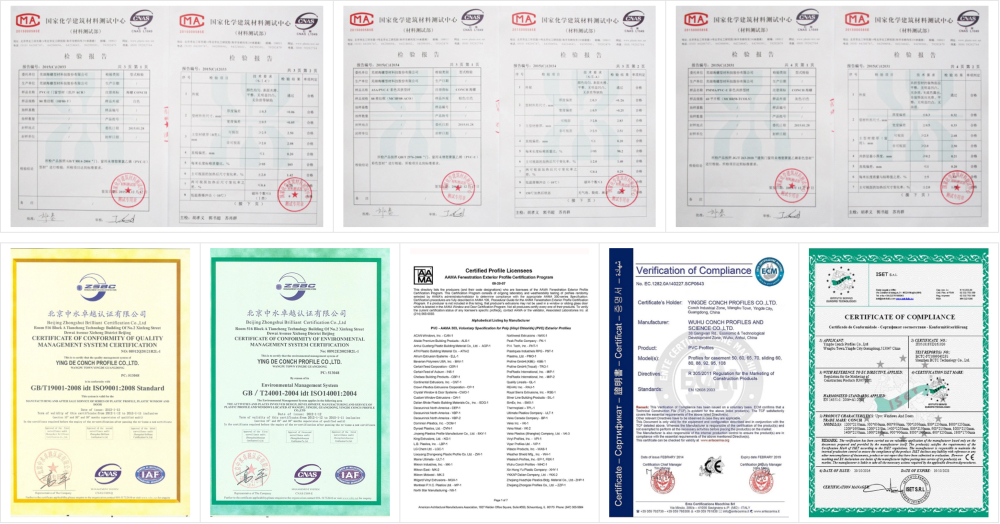

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable horizontal sliding UPVC window supplier. Our factory in Hunan Province works from ISO, CE and AAMA certification documentation, works with CONCH to keep raw material quality consistent, and runs a 25 to 30 day delivery schedule supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team works from your drawings and specifications to configure the frame width, the reinforcement, the glazing, the colour and the hardware, and provides application guidance and project based technical support. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.

References

1. European Committee for Standardization. (2016). EN 14351-1: Windows and doors - Product standard, performance characteristics.
2. European Committee for Standardization. (2000). EN 12207: Windows and doors - Air permeability - Classification.
3. European Committee for Standardization. (2003). EN 12208: Windows and doors - Watertightness - Classification.
4. European Committee for Standardization. (2003). EN 12210: Windows and doors - Resistance to wind load - Classification.
5. American Architectural Manufacturers Association. (2022). AAMA 101: Voluntary Standard for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors.
6. International Organization for Standardization. (2015). ISO 9001: Quality management systems - Requirements.
