Aluminum Accordion Patio Door vs Bifold Door: Key Differences

When specifying folding door systems for luxury residential projects, understanding the distinction between an Aluminum Accordion Patio Door and a bifold door directly impacts project budgeting, installation timelines, and long-term performance. An accordion door features panels that fold and stack in a continuous sequence along a single track, while bifold doors operate with paired panels that hinge together before folding.

This fundamental difference influences load distribution, opening width capacity, and customization flexibility. For procurement professionals managing high-value developments in coastal or desert climates, selecting the correct folding door system means balancing structural integrity, aesthetic appeal, and logistical efficiency.

Introduction

Modern architecture requires clear indoor-outdoor transitions. Aluminium Accordion Patio Doors and bifold doors both achieve this, although their engineering methods vary. Accordion doors can open up to six meters without support posts since their panels fold consecutively. In spans over four meters, bifold doors need a center mullion because their paired panel hinges fold inward or outward like books.

These technological differences affect wind load resistance, thermal performance, and installation difficulty for B2B procurement experts sourcing high-end residential buildings, commercial hospitality projects, or coastal villas. Understanding these variations helps project managers match product specifications to design intent, building requirements, and budget limits, providing smooth project execution from engineering drawings to final installation.

What Are Aluminum Accordion Patio Doors and Bifold Doors?

Aluminum Accordion Patio Doors: Continuous Folding Systems

Multiple panels on a top-hung track or bottom rollers fold successively to one or both sides of an Aluminium Accordion Patio Door. Each panel hinges to the next, giving an accordion-like folding movement. The 6063-T5 aluminium alloy frame has multi-chamber profiles with 2.0–3.0mm wall thickness for structural strength and lightweight operation. Panels with two to six parts and widths between 600mm and 900mm enable architects to design apertures for certain spatial needs.

Heavy-duty stainless steel hinges for 80kg per panel, precise nylon or aluminium rollers with sealed ball bearings, and multi-point locking mechanisms with anti-lift devices comprise the hardware system. Thermal performance needs throughout climatic zones may be met using 5mm tempered single glazing or 28mm double-glazed systems with low-E coatings. Weather seals provide household and light commercial water tightness by compressing EPDM gaskets against the frame under closing pressure.

Bifold Doors: Paired-Panel Folding Configuration

The hinged panels of bifold doors fold together and stack against the opening perimeter. A central hinge pivots each pair, and the leading panel's outer edge slides along a track. This layout distributes door weight differently than accordion systems by using pivot hinges at the top and bottom of each panel pair. Due to its corrosion resistance and strength-to-weight ratio, aluminium is favoured for commercial applications over wood, composite, and uPVC.

Bifold systems hold two to eight panels, although greater openings need more support. The folding mechanism forms a "Z" or "W" pattern when open, necessitating stacking clearance on one or both sides. To avoid binding, each pivot point must be precisely aligned, increasing hardware complexity with panel count. Premium aluminium bifold systems include thermal breaks to limit heat transmission, however frame material and glass requirements vary.

Core Functional Differences Between Aluminum Accordion and Bifold Doors

Folding Mechanism and Space Optimization

Aluminum Accordion Patio Doors fold in a linear sequence, with each panel following the previous one to create a compact stack. This mechanism allows the entire door system to compress to approximately 10-15% of the opening width when fully retracted, maximizing unobstructed access. The continuous folding pattern distributes operational force evenly across the track, reducing strain on individual components and enabling smoother operation even with larger panel counts.

Bifold doors require more lateral clearance due to their paired folding action. When fully opened, the stacked panels occupy roughly 15-20% of the opening width, as each folded pair creates a double-thickness stack. The pivot mechanism concentrates weight at hinge points, requiring reinforced frames and more robust hardware for panels exceeding standard sizes. This folding pattern works efficiently for moderate openings but can become cumbersome in ultra-wide configurations where multiple panel pairs must coordinate.

Durability and Maintenance Requirements

Aluminium Patio Accordion Top-hung or bottom-rolled doors benefit from continuous track support. Top-hung versions eliminate floor track detritus since the panels hang freely and do not touch the threshold. For extra-large panels with flexing top-track support, bottom-rolling systems distribute weight over heavy-duty rollers. Multi-chamber aluminium profiles resist thermal expansion and corrosion, especially after 60-80 micron PVDF powder coating or anodising.

Track cleaning quarterly, roller bearing lubrication yearly, and weather seal compression loss inspection are routine maintenance. Coastal installations need more regular hardware maintenance owing to salt-air exposure, although marine-grade stainless steel components reduce corrosion. Settling or frame movement may bind bifold doors, thus pivot hinge alignment is crucial. High-quality hardware reduces adjustment frequency, but several hinge points per panel need more maintenance than accordion systems.

Insulation and Energy Efficiency Performance

Frame and glazing design affect Aluminium Accordion Patio Door thermal efficiency. Using polyamide (PA66) thermal breaks and double-glazed units with argon fill and low-E coatings results in U-values of 1.8-2.2 W/m²K. Multi-chamber profiles provide air pockets that limit heat transmission, while compression seals reduce air intrusion. Residential and light commercial applications needing modest acoustic control may use 30-40 dB sound insulation, depending on glass thickness and seal quality.

Material composition affects bifold door thermal performance. Aluminium bifold systems with thermal breaks work like accordion doors when glazing and seal parameters match. The pivot hinge design may cause heat bridging spots where metal components enter the insulated frame, lowering efficiency. Installation of continuous weather-stripping around each panel reduces these effects, although fine adjustment is needed to provide constant compression across many hinged panels.

Procurement Considerations for Aluminum Accordion vs Bifold Doors

Cost Analysis and Budget Planning

Frame and glazing design effect Aluminium Accordion Patio Door thermal efficiency. Use of polyamide (PA66) thermal breaks, double-glazed units, argon fill, and low-E coatings yields U-values of 1.8-2.2 W/m²K. Compression seals and multi-chamber designs prevent air ingress and heat transfer. Depending on glass thickness and seal quality, 30-40 dB sound insulation may meet moderate acoustic needs in residential and light commercial applications.

Material composition impacts bifold door thermal performance. Aluminium bifold systems with thermal breaks perform like accordion doors when glazing and seal parameters match. The pivot hinge design may generate heat bridging when metal components enter the insulated frame, reducing efficiency. Continuous weatherstripping around each panel decreases these effects, although careful adjustment is essential to achieve consistent compression across multiple hinged panels.

Customization and Project Specifications

Aluminium Accordion Patio Doors may be customised in panel count (two to six sections), opening direction (inward, outward, single-side, or split stacking), and threshold (low-profile or flush). Powder-coated RAL colours, anodised natural or bronze, and architectural colour matching are frame treatments. Clear tempered glass maximises light transmission, while laminated units improve security and acoustics. Profile proportions adapt to 2.1m–3.0m opening heights without structural changes.

Hardware option provides top-hung systems for seamless floor transitions or bottom-rolling for minimal overhead structural support. Building security measures may use electronic access control and multi-point locking systems to prevent lifting. Bifold doors have comparable finish and glazing customisation but need pivot hardware. For pivot balance, panel widths must be within certain ranges, which may restrict design freedom in irregular openings.

Installation Complexity and Logistics

Aluminum Accordion Patio Door installation involves securing the track system, mounting panels in sequence, and adjusting roller height for smooth operation. Top-hung systems require overhead structural verification to ensure load capacity, while bottom-rolling configurations need precise threshold alignment to prevent binding. Installation timelines average one to two days for standard residential openings, with larger commercial installations requiring additional setup time for staging and alignment verification.

Shipping favours modular assembly. Panels, rails and hardware come separately, decreasing packing and freight expenses by 30% compared to pre-assembled pieces. Individual components pack more securely than fully built frames, reducing shipping damage hazards. On-site assembly follows precise installation manuals and expert video demonstrations, allowing regular carpentry contractors to finish quickly.

Panel count complicates bifold door installation. For panels above 50kg, two people must handle door weight and adjust pivot points for smooth operation. Adjustment screws at each hinge enable fine-tuning, although skilled installation teams are needed for uniform performance across four or more panels. Hardware components have three to five-year warranties, while frame coatings have ten-year corrosion and fading warranties under reasonable exposure circumstances.

Market Trends and Supplier Landscape

Supplier Evaluation and Certification Standards

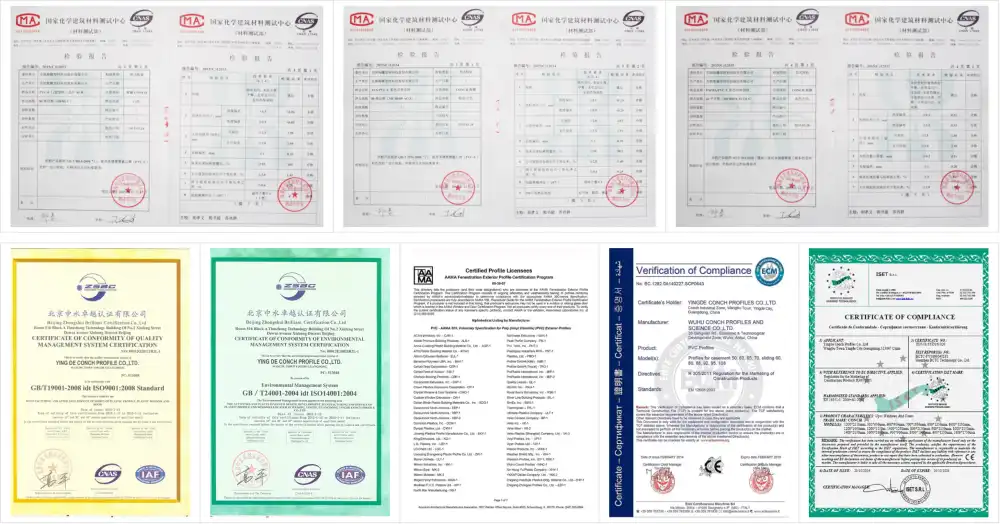

European CE marking, North American AAMA standards, and ISO 9001 quality management certifications are held by top Aluminium Accordion Patio Door manufacturers. Standardised wind resistance, water penetration, and air infiltration tests certify structural performance. High-end residential suppliers use vertically integrated extrusion, surface treatment, and assembly facilities to ensure quality throughout production runs.

Reliable vendors provide lead times, which are typically 25 to 30 days from order confirmation to plant departure for standard setups. Custom colour matching or glass requirements may delay manufacturing by one to two weeks. A supplier's plant audit documents should show the equipment' capabilities, notably CNC cutting precision and powder coating line specifications. Long-term collaborations benefit from suppliers providing engineering drawings, load calculations, and contractor team installation training.

Emerging Technologies and Material Innovations

Recent advancements in Aluminum Accordion Patio Door technology include integrated motorization systems enabling remote operation via smartphone applications or building automation platforms. These systems incorporate obstacle detection sensors and programmable opening sequences, enhancing accessibility and convenience in luxury residential applications. Thermal break materials have evolved beyond traditional polyamide to include aerogel-enhanced profiles, improving U-values without increasing frame depth.

Switchable privacy glazing, electrochromic tinting, and triple-glazed units with U-values below 1.0 W/m²K are just a few of the new glass technologies emerging to meet energy code requirements in passive house projects. Suppliers investing in research partnerships and maintaining updated machinery demonstrate commitment to evolving product capabilities, positioning buyers to benefit from improved performance specifications without redesigning integration details.

How to Choose Between Aluminum Accordion and Bifold Doors: Decision Framework

Defining Project Requirements

Spatial constraints form the primary selection criterion. Openings exceeding five meters benefit from Aluminum Accordion Patio Door configuration due to reduced stacking depth and continuous track support. Projects prioritizing minimal floor obstruction should specify top-hung accordion systems, while applications requiring robust threshold protection against driving rain favor bottom-rolling designs with raised sill profiles. Aesthetic preferences influence panel division—accordion doors suit contemporary minimalist designs emphasizing clean lines, while bifold configurations complement traditional architectural styles through their segmented appearance.

Environmental factors including wind exposure, humidity levels, and temperature extremes guide material specifications. Coastal projects demand marine-grade gear and PVDF powder finish to protect against corrosion from salt air. Desert climates require thermal break profiles and low-E glazing to manage solar heat gain. Acoustic requirements in urban settings or near busy roads necessitate laminated glass and compression seals meeting specified sound transmission class (STC) ratings.

Evaluation Metrics and Weighting

For residential-grade systems, hardware cycle testing should measure durability at 25,000–50,000 operations. U-values, SHGC, and NFRC-standardized air leakage rates are used to compare energy efficiency. Annual maintenance expenses include labour and component replacement. Narrower frame profiles maximise glass area and natural light transmission in sightline measures for visual impact evaluation.

Installation labour, shipping costs, and long-term maintenance must be included in cost analysis. In commercial applications with regular operation, accordion doors have a cheaper total cost of ownership, whereas bifold systems may fit residential projects with infrequent usage and conventional aesthetics. On-time delivery, defect rates, and technical support throughout project specification are supplier dependability measures.

Industry-Specific Recommendations

Hospitality projects benefit from Aluminum Accordion Patio Doors in restaurant-to-patio transitions, where frequent operation demands durable roller systems and the open configuration maximizes guest flow. Office developments utilize these systems for conference rooms opening to terraces, supporting flexible space utilization. Retail storefronts favor bifold configurations where visual merchandising benefits from segmented panel arrangements, though accordion systems increasingly appear in contemporary boutique designs emphasizing transparency.

High-end residential villas in coastal or elevated locations require accordion doors with enhanced wind load ratings, often achieved through thicker profile walls and reinforced corner connections. Developments targeting passive house certification specify systems with documented thermal performance data, necessitating suppliers capable of providing detailed technical documentation and third-party test reports.

Performance Disclaimer: Specific performance characteristics depend on final product configuration, installation quality, and environmental conditions. All specifications should be verified through certified test reports provided by the manufacturer prior to procurement decisions.

Conclusion

Selecting between Aluminum Accordion Patio Doors and bifold doors requires balancing technical performance, aesthetic objectives, and project logistics. Accordion systems excel in wide openings, high-frequency operation, and applications demanding minimal stacking depth. Their continuous folding mechanism and track support deliver reliable long-term performance with straightforward maintenance requirements.

Bifold doors serve projects where traditional aesthetics or specific architectural details favor paired panel configurations. Both systems achieve comparable thermal and acoustic performance when specified with appropriate glazing and thermal break technology. Procurement success depends on partnering with experienced suppliers offering comprehensive technical support, transparent lead times, and proven quality management systems that ensure consistent product delivery aligned with project schedules.

FAQ

What Are the Main Structural Advantages of Accordion Doors Over Bifold Systems?

Aluminum Accordion Patio Doors distribute operational force continuously along the track rather than concentrating weight at pivot points. This reduces hardware stress and enables wider openings without intermediate support posts. The linear folding mechanism creates a narrower stacked profile, maximizing clear opening width. Top-hung configurations eliminate floor tracks, preventing debris accumulation and simplifying threshold transitions for accessibility compliance.

How Do Maintenance Requirements Compare Between the Two Door Types?

Accordion systems require periodic track cleaning and roller lubrication, typically quarterly for commercial applications and annually for residential use. Bifold doors demand additional attention to pivot hinge alignment and may require adjustment after building settling. Coastal installations of both systems benefit from marine-grade hardware specifications and semi-annual inspections, though Aluminum Accordion Patio Doors' fewer pivot points reduce total maintenance checkpoints.

Can Both Door Types Achieve Equivalent Thermal Performance?

When specified with comparable glazing and thermal break profiles, Aluminum Accordion Patio Doors and bifold doors achieve similar U-values, typically ranging from 1.8 to 2.2 W/m²K with double-glazed low-E glass. The critical factor is continuous weather-stripping that compresses uniformly across all panels. Accordion doors benefit from simpler seal geometry due to fewer hinge interruptions, though premium bifold systems incorporate continuous gaskets at pivot points to maintain thermal integrity.

Partner with Haolv Building Materials for Your Aluminum Accordion Patio Door Projects

Haolv Building Materials brings 19 years of specialized manufacturing expertise to every custom Aluminum Accordion Patio Door project. Our integrated supply chain and partnership with leading aluminum suppliers ensure consistent 6063-T5 alloy quality throughout production. We provide comprehensive technical support including detailed engineering drawings, load calculation documentation, and installation video tutorials demonstrating proper assembly procedures.

As an experienced manufacturer, we ship all systems as modular components, reducing logistics costs by approximately 30% while minimizing transit damage risks. Our flexible customization capabilities accommodate panel configurations from two to six sections, opening widths exceeding six meters, and custom RAL color matching to precise architectural specifications. ISO, CE, and AAMA certifications validate our quality management systems and product performance.

Contact our technical team at kristin@haolvwindows.com to receive detailed specification sheets, discuss your project requirements, and obtain quotations reflecting your exact configuration needs. Visit haolvbuilding.com to explore our complete product range and download installation resources.

References

1. American Architectural Manufacturers Association (AAMA). Performance Standards for Aluminum Folding Door Systems. AAMA 920-18, 2018.

2. Hutchins, Mark. Thermal Performance Optimization in Metal-Framed Glazing Systems. Journal of Building Physics, vol. 42, no. 3, 2019, pp. 287-306.

3. Patterson, Robert K. Structural Design Considerations for Wide-Span Folding Doors in High-Wind Regions. Building Enclosure Science & Technology Conference Proceedings, 2020.

4. Wilson, Jennifer A. Comparative Life Cycle Assessment of Residential Door Systems. Sustainable Building Technology Review, vol. 15, 2021, pp. 112-129.

5. Chen, Wei and Thompson, David L. Hardware Durability Testing Protocols for Multi-Panel Folding Systems. International Journal of Architectural Engineering Technology, vol. 8, 2022, pp. 45-61.

6. European Committee for Standardization. Windows and Doors—Product Standard, Performance Characteristics—Part 1: Windows and External Pedestrian Doorsets. EN 14351-1:2016+A2:2021.
