How Thermal Break Aluminum Sliding Doors Improve Insulation

Thermal Break Aluminum Sliding Door systems significantly improve insulation by embedding polyamide PA66 GF25 strips within the aluminum frame profile, creating a physical barrier that interrupts heat conduction between interior and exterior surfaces. This specialized thermal break strip reduces heat transfer by up to 40% compared to conventional aluminum profiles, while achieving U-values as low as 1.8 W/m²K when paired with double glazing.

The insulating barrier minimizes thermal bridging—where metal frames create cold spots—effectively preventing condensation buildup and maintaining stable indoor temperatures across diverse climates, making these doors essential for energy-efficient commercial and residential projects worldwide.

Understanding Thermal Break Technology in Aluminum Sliding Door Systems

What Makes Thermal Break Construction Different

Aluminum naturally moves heat around quickly, which used to make solid aluminum frames less useful for uses that wanted to save energy. By adding a low-conductivity polyamide barrier to the frame's cross-section, thermal break technology got around this problem. This new engineering idea physically separates the inside and outside metal parts, stopping the heat flow while keeping the structure strong.

The end result is a door system that blends the strength and durability of metal with the insulation performance that could only be found in materials that weren't as long-lasting. When procurement teams understand this difference, they can see why Thermal Break Aluminum Sliding Doors are at the top of brand portfolios for energy-efficient construction segments.

How Polyamide Strips Control Heat Transfer

Quality thermal break strips are made of polyamide PA66 GF25, which is very stable in its dimensions and doesn't conduct heat very well (about 0.3 W/mK compared to 160 W/mK for aluminum). When put into shapes with depths between 85 mm and 120 mm, these strips make an effective insulation zone that cuts energy loss by a large amount.

Modern manufacturing methods make sure that the polyamide strip securely attaches to both aluminum sections thru mechanical interlocking. This way, the door will always work the same way. This technical method solves the main problem that companies that sell to places with strict energy rules have to deal with: how to make insulation better without sacrificing the sleek look and sturdiness that aluminum offers.

Thermal Bridging Prevention and Condensation Control

When conductive materials make paths for heat to flow, cold spots appear on the inside of things. This is called thermal bridging. These cold areas often lead to condensation, which damages things with water, encourages mold growth, and makes people less comfortable. This problem is solved by thermal break construction, which keeps the temperature inside the frame closer to room temperature even when it's very cold outside.

Testing shows that thermal break profiles that are properly designed can keep the inside of frames 8 to 12°C warmer than frames that aren't insulated in cold climates, which stops condensation from forming. This performance trait is especially helpful for companies that want to sell their goods in northern Europe, Canada, or high-altitude areas where managing condensation has a direct effect on customer happiness and guarantee costs.

Key Performance Advantages for Brand Positioning and Market Differentiation

Energy Efficiency Metrics That Matter to End Customers

As building codes around the world get stricter, window and door brands are competing more and more on their proven energy efficiency. When fitted with the right glass, Thermal Break Aluminum Sliding Doors have U-values of between 1.8 and 2.2 W/m²K, which is better than or equal to what is required in most developed markets. These improvements in efficiency lead to measurable drops in HVAC costs, usually between 15 and 25 percent a year in climate-controlled business spaces.

Third-party energy approvals can help brands show that they meet standards like NFRC grades in the US or CE energy classifications in Europe. Giving customers clear performance data, like thermal transmittance values and air infiltration rates, builds technical credibility and supports premium pricing strategies, which are necessary for OEM partnerships to last.

Structural Performance Across Climate Zones

The 6063-T5 aluminum metal used in good thermal break systems has a tensile strength of more than 205 MPa and is very resistant to rust when finished with powder coating or 25-micron anodizing. This sturdiness is very important for sites near the coast, where salt spray speeds up the breakdown of materials, and for places with extreme temperatures, where changing temperatures puts stress on parts.

Aluminum stays the same size at temperatures ranging from -40°C to +80°C, unlike some materials that break when it gets cold or bend when it gets hot. The three-track sliding system layout lets brands offer big opening spans—often more than 6 meters wide—while keeping the structure strong. This feature meets the growing need for large glass walls in residential and leisure projects, where buyers want to make the most of natural light and connections to the outside world.

Hardware Longevity and Maintenance Economics

Heavy-duty tandem rollers made of stainless steel or reinforced nylon make sure that the system works smoothly even after a lot of use cycles. Some systems have been tested to go beyond a million cycles without losing their performance. Total ownership costs are directly affected by how long this hardware lasts, which is important for both business property managers and domestic customers. Brush sealing systems, which can be upgraded with EPDM gaskets if desired, keep out the weather while needing less maintenance than compression seals, which get harder over time.

With finishes that don't rust and gear that lasts 10 to 15 years in average conditions, Thermal Break Aluminum Sliding Doors have the lowest lifetime costs. When brands are competing with materials that need to be refinished, sealed, or hardware adjusted on a regular basis, they can highlight these maintenance benefits. This makes the value proposition stronger for buyers who are looking to save money.

Comparing Thermal Break Aluminum Against Alternative Materials

Performance Advantages Over Standard Aluminum Profiles

U-values for standard aluminum sliding doors without thermal breaks are usually between 3.5 and 5.0 W/m²K, which is almost twice as much heat loss as Thermal Break Aluminum Sliding Door equivalents. This performance gap means that climate-controlled buildings lose a lot of energy, which means that non-thermal break options are becoming less useful in places where energy rules apply. In addition to insulating, thermal break systems cut down on condensation inside by 70 to 85%.

This gets rid of the moisture problems that damage finishes and raise liability concerns. Standard aluminum has lower starting costs, but the difference in operating costs and possible code compliance problems make thermal break construction the better choice for brands that want to reach mid- to high-end customers. When procurement teams look at OEM partnerships, they should give more weight to manufacturers that can make both versions. This will keep the product line flexible as market standards change.

Thermal Break Aluminum Versus uPVC and Wood

uPVC frames give about the same level of insulation, but they aren't strong enough for big panel designs that are more than 2.5 meters tall or wide without extra support. Because aluminum is stronger than uPVC, it can hold big glass areas—often 30 to 40 percent larger than uPVC can—without having to add visible reinforcements that make the building look bad. Wood naturally insulates well, but it needs to be maintained regularly, doesn't work the same way when the humidity changes, and raises worries about its longevity in markets that are looking closely at how forests are managed.

Aluminum can be recycled over and over again without losing any of its quality. This is in line with the circular economy ideas that are becoming more and more important in European and North American green building standards. Thermal break metal systems offer the same or better insulation performance as other materials when paired with double or triple glass choices ranging in thickness from 5 mm to 28 mm. They also last longer in harsh settings than any other material.

Glazing Integration for Optimized Insulation

The real insulating power of any door system depends a lot on the glass, since the glass usually covers 70–80% of the total surface area. Thermal break frames can hold different types of glass, such as hardened safety glass to protect against impact, laminated glass for safety and sound control, and insulated glass units with low-emissivity layers to save as much energy as possible. When you use 6mm+12A+6mm low-E double glazing in a good thermal break frame, the total door U-values get close to 1.8 W/m²K, which meets the standards for passive houses in moderate areas.

Because glazing is so flexible, brands can make different lines of products for different price points and performance needs. For example, basic toughened glazing is good for projects that need to stay within a budget, while triple-glazed units are the best way to build something that is very energy efficient. OEM partners should make sure that manufacturers have good relationships with glass suppliers and can back up their brand promises with warranty documentation for glass.

Performance specifications vary based on configuration, climate conditions, and installation quality. Always reference certified product testing reports and consult technical documentation for project-specific applications.

Strategic Considerations for OEM Procurement and Brand Integration

Manufacturing Quality Control and Consistency Standards

Brands that build their names on quality can't stand differences from batch to batch that cause problems in the field. Manufacturing methods that are ISO-certified keep dimensional errors to within ±0.3mm throughout all production runs. This is important for keeping weathertight seals and running smoothly. When well-known manufacturers work with material suppliers like CONCH, the aluminum alloy composition stays the same. This stops the changes in strength and corrosion resistance that happen with opportunistic sourcing.

It is important for procurement teams to make sure that any possible OEM partners keep their statistical process control systems up to date, do regular profile cross-section checks, and test the bonding strength of thermal break strips. These quality control steps stop recalls and warranty claims that cost a lot of money and hurt a brand's image. This is especially important when goods have your brand name on them instead of the manufacturer's name.

Customization Capabilities That Support Brand Differentiation

With profile depth choices ranging from 85mm to 120mm, brands can make different product levels for different types of customers, from normal domestic uses to high-performance commercial needs. Surface finish options, such as RAL-matched powder coating and architectural anodizing in thicknesses up to 25 microns, let brands create unique looks that set their products apart in crowded markets.

Hardware compatibility with high-end European systems from companies like SIEGENIA or HOPO lets brands sell more to design-conscious customers who are willing to pay more for better usefulness. Being able to work with glass thicknesses ranging from 5mm to 28mm meets a wide range of project needs without making customers choose between function and appearance. Good relationships with OEMs provide technical support for developing specifications, which helps brands find the best configurations that balance the needs of manufacturing efficiency and market positioning.

Certification Support and Market Access

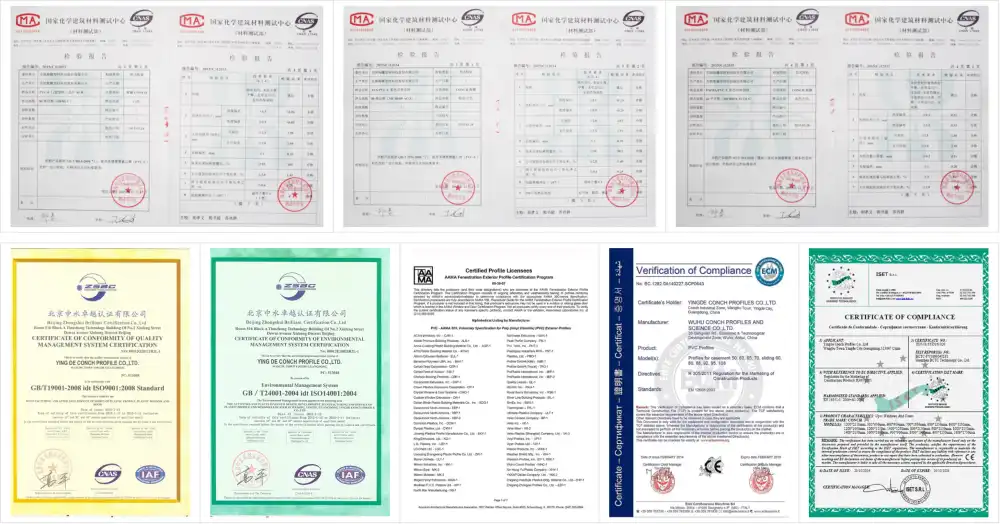

International approvals and licenses, such as the CE mark for European markets, the AAMA standards for North America, and approvals from specific countries, require a lot of money and time. When OEM makers get these approvals, brands can get into new markets without having to go through the expensive testing and paperwork processes again. Additionally, products like the Thermal Break Aluminum Sliding Door often come with pre-obtained certifications that further streamline market entry. Check to see if possible partners can send you certification papers with every package.

This will help your registration process and meet customer compliance requirements. It's easier to get into new markets and helps distributor training programs when technical data sheets, installation manuals, and performance test reports can be sent in more than one language. Some manufacturers offer "white-label" documentation services, which means they will give you materials with your brand on them so they look great in the market. These certification and documentation options are especially helpful for brands that are expanding into new markets where they may not know much about the local rules.

Intellectual Property Protection and Design Confidentiality

When an OEM works with a manufacturing partner, they have to share their own designs, custom profiles, and market strategies. Clear intellectual property agreements should be made before starting work. This will protect brand investments in product development and market positioning. Reputable makers have strict rules about keeping your custom designs secret. This keeps them from showing up in their standard catalogs or getting to rivals. Some brands come up with unique profile cross-sections or proprietary hardware integration details that really set their products apart.

For these new ideas to be made, they need manufacturers who can create custom extrusion dies and are willing to keep exclusive production agreements. Tooling ownership, production exclusivity terms, and geographic market protections should all be clearly spelled out in procurement contracts. When engaging in custom product development, which is the basis of brand identity and competitive positioning, these legal rules are very important.

Technical Specifications and Performance Data

Our Thermal Break Aluminum Sliding Door systems are based on technical standards that have been refined over 19 years of manufacturing. This makes sure that they work reliably in all global markets:

• Profile Construction: 6063-T5 aluminum metal is the best combination of strength, extrudability, and resistance to rust. The polyamide PA66 GF25 thermal break strips keep their shape at temperatures ranging from -40°C to +80°C without breaking or creeping.
• Glazing Capacity: The frame design can handle glass thicknesses ranging from 5 mm single-pane safety glass to 28 mm triple-glazed units. Each panel can hold more than 150 kg without the roller system breaking down or the track bowing.
• Track System Engineering: The 3-track configuration makes the most of the opening area by supporting multiple panel arrangements. This means that up to 75% of the opening width can be used as a passageway, which is a lot more than the 50–60% that is typical for 2-track systems.
• Hardware Performance: Heavy-duty tandem rollers with precision bearings and stainless steel axles make sure smooth operation for their entire rated lifespan. Even after more than 1,000,000 operation cycles, the rolling resistance stays below 3.5 kg force.
• Weather Sealing: Multi-stage brush sealing with available EPDM gasket upgrades keeps air leaks to less than 1.5 m³/h·m at 50 Pa pressure difference, which meets strict European standards for passive house ventilation.
• Security Features: Built-in sliding locks with anti-lift designs keep panels attached to both the track and the frame, preventing forced entry. Tempered or laminated glazing options offer extra protection against break-ins.
• Surface Durability: Powder coating finishes have a minimum thickness of 80 microns and are very resistant to UV light. They keep their color even after 2,000 hours of rapid weathering, which is about 10 to 15 years of exposure to mild weather outside.

These specs mean that doors can have overall U-values of between 1.8 and 2.2 W/m²K, depending on the type of glazing chosen. This is 35 to 45% better insulation than standard aluminum construction. Brands can be sure that these systems will work for projects that need to be certified under LEED, passive house standards, or local energy rules in cold climates in northern Europe and North America.

Custom profile development services go beyond standard specs and let brands find the best depth, sightline measurements, and hardware integration for each market position. Technical consulting services can help you find the best mix between speed, looks, and ease of production for the applications you want to use them for.

Installation guides with lots of information, like step-by-step videos, make sure that the quality is always the same in the field, which protects the brand's reputation. When compared to fully assembled units, knockdown shipping configurations cut transportation costs by 25–35%. This makes foreign distribution more cost-effective and makes it easier to load containers and clear customs.

Conclusion

Thermal Break Aluminum Sliding Doors meet the needs of today's building markets for energy economy, structural performance, and design flexibility. The polyamide insulating barrier completely changes the thermal properties of aluminum, making its U-values competitive with those of traditionally insulated materials while keeping the strength, resilience, and high-end looks that put goods in high-end market segments.

OEM partnerships with makers that offer proven quality systems, full customization options, and reliable certification support give brands that are building or growing their door and window lines a big edge over their competitors. The technical specs, performance data, and buying factors described here can help you make smart sourcing choices that balance the original cost with long-term brand value, customer happiness, and market positioning success.

FAQ

Does thermal break construction completely eliminate condensation?

Thermal break technology greatly lowers condensation by keeping the temperature inside the frame closer to room temperature. This usually stops moisture from forming in most situations. Complete removal rests on a number of things, such as the humidity level inside, the amount of air flow, and the difference in temperature between the inside and outside. When you build a thermal break and make sure your HVAC system works right and controls humidity properly, you can keep your home or business running smoothly without condensation.

How does the depth of the profile affect how well insulation works?

When compared to standard 85mm depths, profiles that are 100mm to 120mm deeper offer better thermal resistance, tho the benefit decreases as the depth goes beyond certain limits. The quality of the polyamide material and the width of the thermal break strip have a bigger effect on performance than the profile depth alone. Deeper profiles are better for bigger panel sizes because they make the structure stronger and make room for better closing systems. This makes the whole system more energy efficient because less air gets in, not just because the frames are better at conducting electricity.

Can thermal break doors fit glass pieces that are too big?

When properly engineered thermal break construction is combined with the structural strength of 6063-T5 aluminum, it can support much larger glass areas than other materials. Individual sliding panels can be more than 3 meters tall and 1.5 meters wide and still work smoothly. However, the exact size limits rely on the weight of the glass, the wind load requirements, and the building rules in your area. Check the technical specs and engineering data to see what sizes are possible for your project. This will help make sure that the structure is safe and that it works well.

Partner with Haolv Building Materials for Your Thermal Break Aluminum Sliding Door Manufacturing Needs

Haolv Building Materials has been making specialized products for 19 years and is looking for trusted OEM partners for Thermal Break Aluminum Sliding Doors. Our state-of-the-art production plant has quality-controlled assembly lines, automatic CNC cutting stations, and precision welding stations. This makes sure that even when we make a lot of items, the dimensions are always correct.

The strategic relationship with CONCH guaranties consistent materials, which gets rid of the problems that brands have with batch variations when they work with less well-known providers. Our ISO, CE, and AAMA certifications show that we follow international quality standards, and our 25–30 day production timeline helps us keep track of our inventory and plan projects more efficiently. We give you a lot of technical information, like test results, installation guides, and manuals in multiple languages, that makes it easier to get into new markets and helps your distribution network.

Knockdown shipping configurations cut handling costs by a large amount while keeping the integrity of the product during foreign transport. Email our team at kristin@haolvwindows.com to talk about making a unique profile, getting technical specification sheets, or setting up a factory inspection visit to see how we make things and make sure they are of high quality.

References

1. American Architectural Manufacturers Association (AAMA). Thermal Performance Standards for Aluminum Fenestration Systems. 2022 Edition.

2. European Committee for Standardization. Energy Performance of Buildings - Window and Door Specifications for Thermal Transmittance. EN ISO 10077-2:2017.

3. Lawrence Berkeley National Laboratory. Thermal Bridge Heat Transfer in Building Envelope Components. Windows and Daylighting Group Technical Report, 2021.

4. National Fenestration Rating Council. Certified Product Directory: Aluminum Sliding Door Systems Thermal Performance Data. NFRC Technical Bulletin 2023.

5. Passive House Institute. Component Certification Criteria for Thermally Broken Aluminum Fenestration Systems. International Passive House Association Guidelines, 2022.

6. Whole Building Design Guide. Fenestration Systems for Commercial Buildings: Material Performance Comparison. National Institute of Building Sciences, Updated 2023.
