Aluminum Casement Door Buyer Checklist for Balcony and Terrace Projects

Choosing the right Aluminum Casement Door comes down to how the leaf swings, how the frame drains, and how much the assembly resists wind and driven rain once it is fixed in the wall. A casement door hangs on hinges and opens outward like a window, which keeps the full width of the opening clear for furniture, trolleys and foot traffic on a balcony or a terrace. Four variables decide whether an order performs as specified: the alloy and the profile depth, the thermal break and the sealing system, the glazing specification, and the hinge and locking hardware. For trade buyers and procurement teams supplying residential, hospitality and light commercial projects, those four are also what decide whether the first container arrives without a claim against it.

Understanding Aluminum Casement Doors: Key Features and Benefits

What Makes A Casement Door Different From A Sliding Or Folding Door?

A casement door is a single or double leaf that swings on hinges instead of travelling on a track. It therefore needs clear space on the outside face when it opens, and in exchange it closes against a compression gasket around the full perimeter of the frame. That compression is what a sliding or folding system cannot reproduce, because those designs seal along an overlap between panels rather than on a squeezed gasket, and the difference shows up as air leakage and water tracking on a windward elevation.

The product page for these doors states a 6063-T5 aluminium alloy frame with profile depths from 50 mm to 125 mm, a thermal break built from PA66 GF25 polyamide strips, EPDM multi-seal gaskets, and a U-value as low as 1.2 W/m2K. Surface treatments cover powder coating, anodizing and custom RAL colour matching, and the glazing list runs from tempered and laminated through to double and triple units with glass thickness from 8 mm to 28 mm. Those are the figures a buyer should be quoting back in writing, because they are the ones that quietly change when a specification is left verbal.

Why Choose A Casement Door For Balcony And Terrace Openings?

On a balcony or a terrace the limitation is usually depth rather than width. A sliding leaf consumes the depth of its own track and blocks part of the opening when it is parked; a folding leaf stacks its panels across the opening. A hinged leaf clears the whole aperture and, on a narrow balcony, that extra clear width is the difference between moving a chair outside and taking the door off its hinges. The product page describes slim profiles that keep the sightline narrow while retaining structural strength, and lists residential entrances, offices, hotels and interior spaces among the intended applications.

Swing direction belongs in the specification rather than in a site decision. The page notes that swing directions are customizable to suit space planning constraints in renovations and new construction alike, which matters when a balcony has a solid parapet on one side, when the door sits under a roof overhang that the leaf would strike, or when the inward face needs to stay clear for a fixed wardrobe run. A single outward leaf suits a narrow balcony door; a pair suits a wide terrace opening where the traffic path is central.

Bulk Procurement Considerations for Trade Buyers

When a casement door line is bought in volume, the shipment has to match the approved sample. Confirm the alloy and temper, the 50 mm to 125 mm profile depth range, the PA66 GF25 thermal break, the EPDM multi-seal gaskets, the hinge type and the locking arrangement, the glass build-up and the surface finish in writing before the order is released. These are the items that drift first when an order is placed from a picture rather than from a data sheet.

Mixed loads are how most distributors start, and a door line mixes easily because finishes and swing directions can be varied without changing the section. The supplier accepts initial orders of 10 to 20 units with neutral packaging or OEM branding, and sample support is available so that quality can be verified before a full order commitment. A first container that carries more than one finish gives a market test without betting the whole load on a single colour that may not sell.

Climate Considerations: How Weather Conditions Affect Aluminum Casement Door Performance

Cold Climate Requirements and Thermal Engineering

In a cold climate the thermal break is the component doing the heavy work. Aluminium conducts heat at roughly 160 to 200 W/(m.K), so a frame extruded as one continuous metal path behaves as a thermal bridge and the visible result is condensation on the inside face and heat leaving the room all winter. A polyamide strip conducts in the region of 0.3 W/(m.K), which is why PA66 GF25 is the material the product page names: it separates the inner and outer profiles and keeps the inside face closer to room temperature.

The page states a whole assembly U-value as low as 1.2 W/m2K, and that figure depends on the glazing build and on how the frame is sealed into the wall. The junction between frame and wall carries as much heat as the frame itself when the gap is left open, and that junction sits inside the installer scope rather than the factory scope, so the sealing detail has to be written into the installation method rather than improvised on site.

Hot and Humid Climate Adaptations

In hot and humid markets the priorities reverse. The frame has to shed water and resist corrosion rather than hold heat, and aluminium does not absorb moisture at all, so the profile itself is not the weak point. What decides service life is whether the sill drains, whether the gasket pocket stays clear, and whether the surface finish survives ultraviolet exposure, which is where powder coating or anodizing earns its place over a bare mill finish on a west-facing terrace door.

Solar control then matters more than insulation. A low emissive coating on the glass cuts the solar gain that drives cooling load, and a dark RAL colour on a sun-exposed leaf raises surface temperature more than a light one, so colour choice is a performance decision and not only a design decision. Standing water in the threshold is the detail that stains the sill and eventually reaches the floor inside, so the drainage path is checked before the door is handed over rather than after the first wet season.

Coastal And High Wind Zone Specifications

A coastal or exposed site loads the door in two ways at once. Wind pressure rises with height and with exposure, so the frame, the reinforcement and the fixings are sized against a calculated pressure for the project rather than against a generic product list, and the engineering team produces drawings and project based technical support for exactly that reason. The product page states that the EPDM multi-seal gaskets exceed ASTM E330 wind-pressure resistance requirements, which is the clause worth asking for on paper when a door faces open water.

Salt attacks the hardware before it attacks the frame. The page notes marine-grade hardware and specialised coatings configured for high salt-spray corrosion resistance, and that is the specification a buyer should hold to rather than accept standard hinges with a coastal project label attached. Stainless steel components and a neutral cure silicone in the glazing pocket avoid the acid cure products that can stain a coated finish within a season.

Comparing Aluminum Casement Doors to Other Frame Materials

Performance Analysis Against Vinyl And Timber Frames

At procurement level the useful comparison is between aluminium, vinyl and timber. A vinyl door is the cheapest frame and insulates reasonably well, but a wide leaf needs internal steel reinforcement to stay straight, and the section is bulky. Timber insulates well and appeals to heritage elevations, but it moves with moisture and needs a coating cycle to stay sound, which is a recurring cost paid over the life of the door rather than once at purchase.

Aluminium costs more per frame than vinyl because of the alloy and the thermal break, and it carries the loads a large outward leaf imposes without a bulky section. The page lists acoustic performance with laminated glass up to an STC rating of 45 dB, which is the number that matters on a door facing a road, and slim profiles keep the sightline narrow on a refurbishment where the original opening is fixed and cannot be widened.

Glazing Options And Energy Performance

The product page lists tempered, laminated, double and triple glazing with glass thickness from 8 mm to 28 mm. Tempered glass is impact resistant and suits ground level and safety critical locations; laminated glass adds security and ultraviolet protection and is what produces the higher acoustic figures; a double or triple sealed unit raises thermal and acoustic performance further. Choosing between them is a project decision, and the leaf is then configured around the choice rather than the other way round.

On the frame side the gain comes from the assembly rather than from the glass alone. A sealed unit with a low emissive coating, a warm edge spacer and an inert gas fill performs noticeably better than plain glass of the same thickness, and it does so without changing the frame geometry. Because the sash is the load-carrying element on a hinged door, glass weight and hinge rating have to be checked together; a heavier unit on an under-rated hinge is the most common source of a dropped leaf.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification And Compliance Standards

Doors that cross a border are checked against published standards. EN 14351-1 is the European product standard for windows and doors, EN 12207 classifies air permeability, EN 12208 watertightness and EN 12210 resistance to wind load, AAMA 101 and the AAMA/WDMA/CSA 101/I.S.2/A440 specification cover aluminium and vinyl products for North American projects, and ISO 9001 covers the manufacturing quality system. The product page states that these products are documented to ISO, CE and AAMA certification, which simplifies the customs conversation. Ask for the documentation with the quotation rather than after production starts, and keep the certification paperwork with the shipping file.

Customization Capabilities And Order Flexibility

The page lists customisation across size, colour, hardware, finishes, glazing and swing direction, supported by OEM and ODM capability and bespoke RAL colour matching, together with a one-stop supply of frames, glass, hardware and accessories from a single source. For a distributor the practical limit is the frame geometry and the hinge rating, because leaf width and leaf weight are fixed by the section and the hardware. Anything outside the standard range needs a drawing check before the order is confirmed, and a drawing check costs far less than a remake.

Logistics And Installation Support

A hinged door packs as a frame with loose leaves, not as a sealed cassette, so the crating has to hold the frame true and stop the leaves moving against each other. In practice the leaves are braced, the glass travels protected, the hardware travels in its own box, and the threshold and the bottom rail are the parts wrapped most heavily because they are the parts that arrive damaged when a crate is dropped. Hardware that arrives loose and hinges that arrive without their fixings are the two most common reasons a good door performs badly on the day it is hung.

On site the opening must be square and plumb, the sill level, and the drainage path clear before the frame is packed and fixed, because a twisted frame cannot be corrected by adjusting the hinges afterwards. The product page notes that installation is typically handled by the buyer local contractors, and that application guidance and system solutions are provided with the order, which is the arrangement that keeps an installer from solving a specification problem with sealant.

Maintenance And Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

Maintenance is limited to cleaning and inspecting, because there is no coating to renew. A mild pH neutral detergent is all the profile needs, and abrasive cleaners and solvents are avoided because they attack the finish and the gasket surfaces. In coastal, dusty or monsoon environments the gaskets, the drainage slots and the hinges are checked more often, since salt, grit and standing water are what let water past a seal that is otherwise sound.

Early Warning Signs And Component Replacement

The first signs appear at the hinges and the gaskets. A draught along the hinge edge, a leaf that catches on the threshold, or a visible gap that widens at the handle side all point to hinge adjustment or gasket compression, and both are corrected without replacing the door. Water staining on the inside sill after a storm usually traces to a blocked drainage slot rather than to a failed gasket, and clearing the slot restores the original performance at almost no cost.

Fogging inside a sealed unit means the edge seal has failed and moisture has entered the cavity, and at that point the glass unit is replaced rather than repaired. A handle that no longer pulls the leaf tight against the gasket, or a locking point that no longer engages, usually points to a worn keep or a stretched mechanism, and replacing the hardware is a fraction of the cost of a new door.

Performance Enhancement Options

Because the frame, the gaskets and the glass set the ceiling, the upgrades worth offering restore or raise those three. Replacing compressed gaskets, adjusting the hinges and clearing the drainage brings back the original weather performance at almost no cost, and reglazing with a low emissive or laminated unit raises thermal or acoustic performance without touching the frame.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Choosing an aluminum casement door for a balcony or a terrace comes down to four decisions: confirming the alloy and the profile depth against the leaf size, specifying a genuine PA66 GF25 thermal break and EPDM multi-seal gaskets, matching the glazing build to the thermal, acoustic and security target, and selecting hardware that can carry the leaf and survive the site. A door built on a 6063-T5 alloy with profile depths from 50 mm to 125 mm, EPDM sealing and a U-value as low as 1.2 W/m2K covers the majority of residential and light commercial openings, and the difference between a dependable supplier and a commodity vendor is verifiable certification, real customisation capability and logistics support.

FAQ

Q1: How do I decide the swing direction for a balcony casement door?

A: Start from the outside face rather than from the room. Check what the leaf would strike when it opens, where the parapet and the overhang sit, and whether the outward swing would block a shared walkway. Then check the inside: a wardrobe run, a radiator or a kitchen counter can make an inward opening impossible. Once both faces are clear, a single leaf suits a narrow balcony and a pair suits a wide terrace opening, and the swing direction can be configured to suit the constraint rather than the other way round.

Q2: What thermal and acoustic performance can an aluminium casement door reach?

A: The product page states a whole assembly U-value as low as 1.2 W/m2K with a PA66 GF25 polyamide thermal break, and acoustic performance with laminated glass up to an STC rating of 45 dB. The realised figures also depend on the glazing build and on how the frame is sealed into the wall, so the installation detail is part of the specification rather than something added on site.

Q3: Which glazing should I specify for security and for quiet?

A: Laminated glass does the most work for both. The interlayer holds the pane together after an impact, which slows forced entry, and it also blocks more sound than a single pane of the same thickness, which is why the higher acoustic figures on the product page are quoted with laminated units. Tempered glass remains the standard choice for impact resistance at ground level and in safety critical locations, and a double or triple sealed unit is added on top of either when thermal performance is the priority.

Q4: What are typical lead times and minimum order quantities?

A: With component stock on hand and integrated supply chain management, standard delivery is usually 25 to 30 days from order confirmation. Initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding, and sample support is available so a new market can be tested without committing to a full container.

Partner with Haolv Building Materials for Aluminum Casement Doors

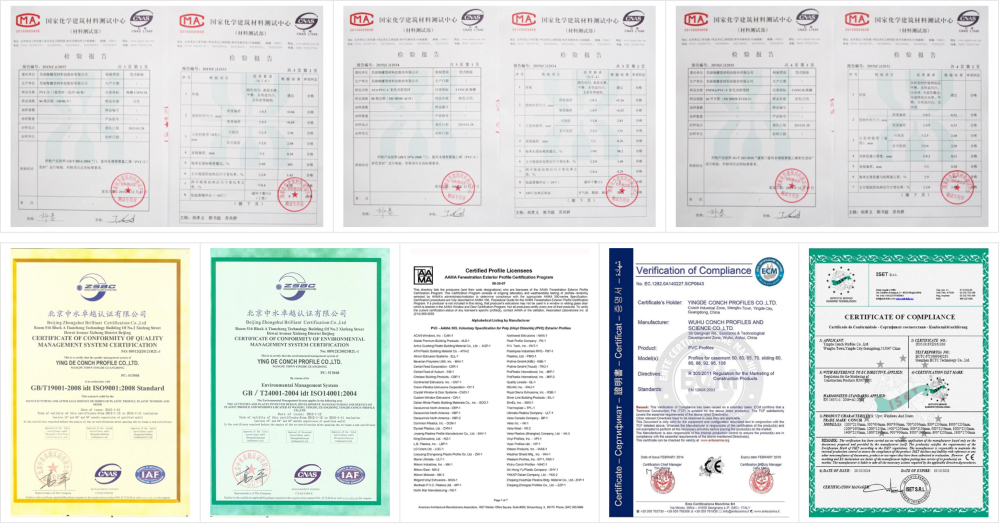

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable aluminum casement door supplier. Our factory in Hunan Province works from ISO, CE and AAMA certification documentation, works with CONCH to keep raw material quality consistent, and runs a 25 to 30 day delivery schedule supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team works from your drawings and specifications to configure the alloy, the profile depth, the thermal break, the glazing, the swing direction and the finish, and provides application guidance and project based technical support. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.

References

1. European Committee for Standardization. (2016). EN 14351-1: Windows and doors - Product standard, performance characteristics.
2. European Committee for Standardization. (2000). EN 12207: Windows and doors - Air permeability - Classification.
3. European Committee for Standardization. (2003). EN 12208: Windows and doors - Watertightness - Classification.
4. European Committee for Standardization. (2003). EN 12210: Windows and doors - Resistance to wind load - Classification.
5. American Architectural Manufacturers Association. (2022). AAMA 101: Voluntary Standard for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors.
6. International Organization for Standardization. (2015). ISO 9001: Quality management systems - Requirements.
