How to Choose Aluminum Arch Window for Luxury Homes?

Choosing the right Aluminum Arch Window for luxury residential projects requires evaluating customization capabilities, dimensional precision, and supplier responsiveness. High-end architectural designs—particularly for churches, heritage renovations, and bespoke villas—demand curved profiles manufactured to tolerances within 2mm, matched with thermally bent glass and premium surface finishes.

Selecting a manufacturer capable of interpreting complex design drawings, producing small-batch orders economically, and delivering components via knock-down packaging can significantly streamline installation logistics while maintaining aesthetic integrity and structural performance.

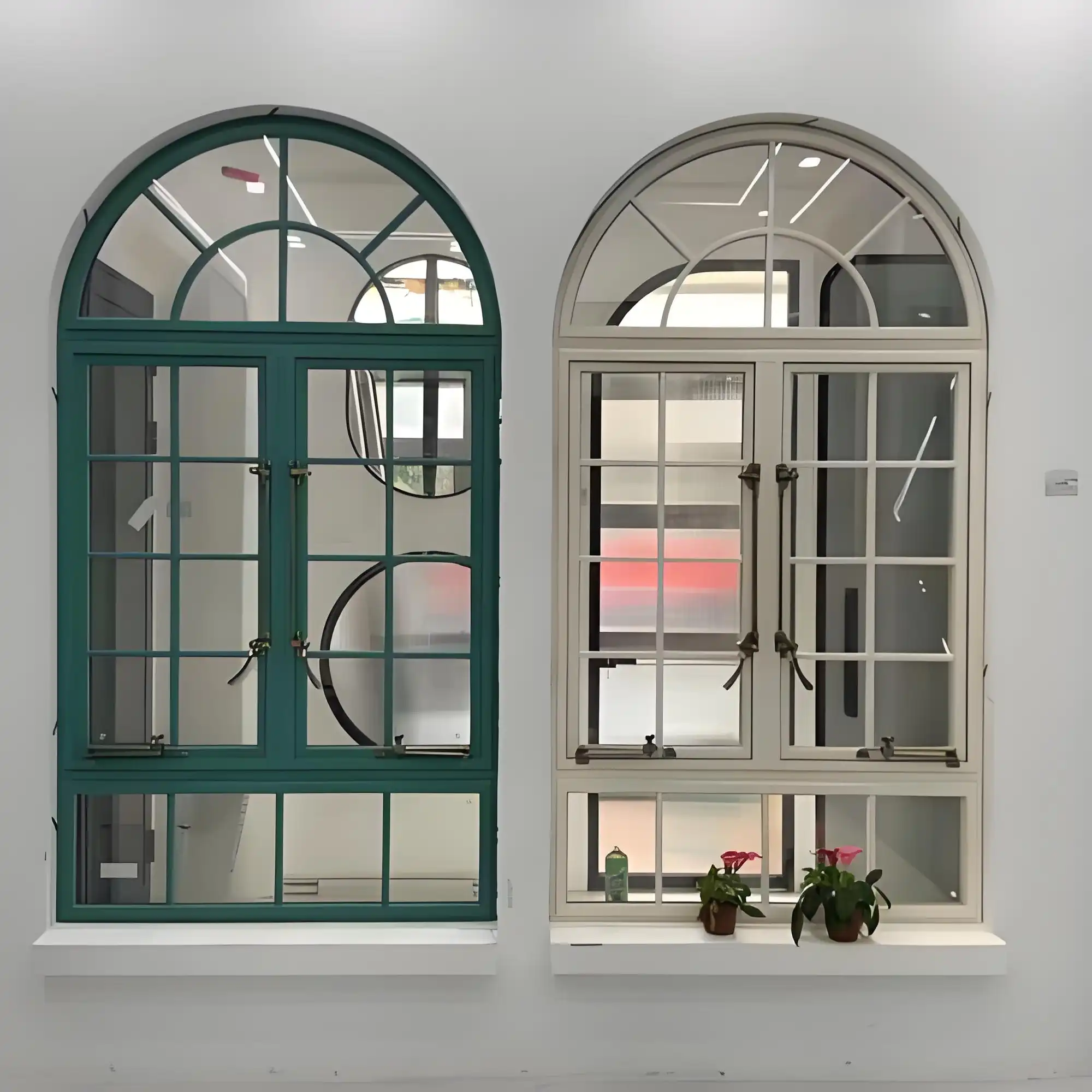

Understanding Aluminum Arch Windows and Their Benefits

Aluminum Arch Windows combine the classic beauty of curved shapes in architecture with the benefits of modern alloy engineering in terms of strength. 6063-T5 aluminum metal has a much higher strength-to-weight ratio than most other materials. This lets frame shapes be very thin, which increases the glazing area without lowering the load-bearing capacity. This material doesn't rust naturally, which makes it perfect for high-end homes near the coast or in humid places where wood warps and steel rusts over time.

Because metal manufacturing is so flexible in terms of design, builders can make truly unique shapes, ranging from half-circle and elliptical arches to pointed Gothic shapes and segmented curves. Precision CNC cutting makes sure that every frame part fits the design exactly, whether it's a single window that stands out in a grand hall or a set of units that all match for a church repair. Powder coating and PVDF finishes that are more than 60μm thick protect against UV light and keep colors for decades, which cuts down on maintenance and keeps the look of high-end facades consistent.

Multi-chamber extrusion designs and PA66GF25 polyamide thermal breaks have made a big difference in thermal performance. These breaks stop heat from moving from the inside to the outside of the part. When combined with Low-E double or triple IGU glass, these systems achieve U-values that are similar to high-end wood windows, without the problems of water getting in or the frames warping.

Multi-layer EPDM sealing systems make airtight barriers that meet Class 4 standards. These barriers stop wind and water from getting in, even when pressures are higher than 700Pa, which is an important requirement for high-rise buildings and areas that are prone to storms.

Aluminum is stronger than vinyl and can be used for big arched spaces without having to use bulky support tubes that get in the way of sight lines. Compared to steel, aluminum is lighter, which makes it easier to handle during installation and lowers the load on historic buildings whose foundations may not be strong enough. The material can be recycled and is made in a way that uses less energy, which is in line with LEED certification goals. This makes it valuable for clients who care about the environment and green building requirements.

Core Criteria for Choosing Aluminum Arch Windows for Luxury Homes

Customization Capabilities and Design Interpretation

Off-the-shelf options are rarely used on high-end tasks. The maker has to show that they know how to turn design CAD plans into shop drawings that are ready to be made, taking into account differences in wall thickness, glazing rebates, and mounting points for hardware. Look for providers that offer full-scale models or 3D renderings before they make the mold. This will help you avoid mistakes that are too expensive to fix once the extrusion dies are machined, like misinterpreting the radius or placing the mullions in the wrong place.

Profile systems should be able to handle a variety of operating types, such as fixed units for clerestory installations, casement setups for easy access to ventilation, and tilt-turn mechanisms for cleaning the inside. When choosing hardware, it's not just about how it looks. For long-term dependability in salty or high-traffic areas, you should mention hidden hinges, multi-point locking systems, and corrosion-resistant stainless steel parts. Suppliers who have their own testing facilities can make sure that custom designs meet standards for wind load and thermal cycling before they go into full production. This lowers the risk of performance problems in the field.

Dimensional Precision and Glass Coordination

When installing Aluminum Arch Windows, there isn't much room for making changes on-site. The curved frame must match the pre-bent glass to within 2 mm of error so that stress concentrations don't form and cause the glass to break or the sealant to fail. Ask for inspection reports from a third party that show how accurate the measurements are across sample batches, especially for projects that need a lot of the same units. Mold amortization strategies, in which the costs of the tools are spread out over multiple orders or shared between profiles that go well together, can make small-batch production cost-effective.

The specs for glass should get the same amount of care. Tempered safety glass keeps people from getting hurt when they accidentally hit something, and coated interlayers improve soundproofing and the way pieces stick together after they break. Triple-glazed units with argon or krypton fills provide the best insulation for passive house standards, but their weight needs to be analyzed by a structural engineer. Make sure that the supplier has relationships with specialized glass benders that can make curved lites that match the frame's radius. Gaps between the curved aluminum and glass create an unsightly look and weaken the window's ability to keep out the weather.

Finish Durability and Material Provenance

Surface treatments determine how long a window will last in harsh conditions. Anodizing makes a hard oxide layer that is part of the aluminum. This layer is resistant to wear and has a shiny look that works well with modern designs. Fluorocarbon coatings come in more colors and clean themselves, but the way they are applied and cured must meet AAMA 2605 standards to keep them from chalking too soon. For traditional settings, wood-grain transfer printing copies the textures of natural wood. To keep the colors from fading, UV-stabilized topcoats are needed.

When selecting high-profile jobs, being able to track materials becomes very important. When suppliers get billets from reputable manufacturers, like those with partnerships with CONCH, they can be sure that the alloy composition and mechanical properties will stay the same from one production run to the next. Ask for mill certificates that show the grade of aluminum, the designation of the temper, and an elemental analysis. Thermal break materials should have grades for fire protection and glass transition temperatures. This will show that they are stable in hot summer weather without lowering their insulation performance.

Comparing Leading Aluminum Arch Window Solutions on the Market

There are many different manufacturers on the global market, and each one positions itself based on different performance priorities. European names like Reynaers and Schuco focus on ultra-slim sightlines and passive house certifications, which makes them perfect for minimalist home designs that need to keep frame exposure to a minimum. Their systems usually use special gasket shapes and drainage plane designs that have been tested over many years of exposure to the North Sea. However, their high prices are due to the fact that they spend a lot on research and development and have local service networks.

North American companies like YKK and Milgard focus on meeting building codes and making installation easy for builders. For example, they make pre-glazed units with built-in nailing fins for wood-frame construction. These solutions work great in tract luxury developments where speed and warranty coverage are more important than the level of customization that can be made. But their standard product catalogs might not have all the arch radius choices you want or have low minimum order numbers that make things hard for small design companies.

Asian manufacturers are competing more and more on how quickly they can make changes and how cheaply they can do it by using CNC automation and vertical integration from extrusion to powder coating. With production lead times of 25 to 30 days, project timelines can be met more quickly than with European partners, who usually quote 8 to 12 weeks. Responding quickly to technical support requests is what sets one supplier apart from another. Suppliers that offer English-language engineering consultations, DWG file reviews, and installation video libraries make it easier for international buyers who don't know much about metric tolerances or shipping logistics in other countries to make purchases.

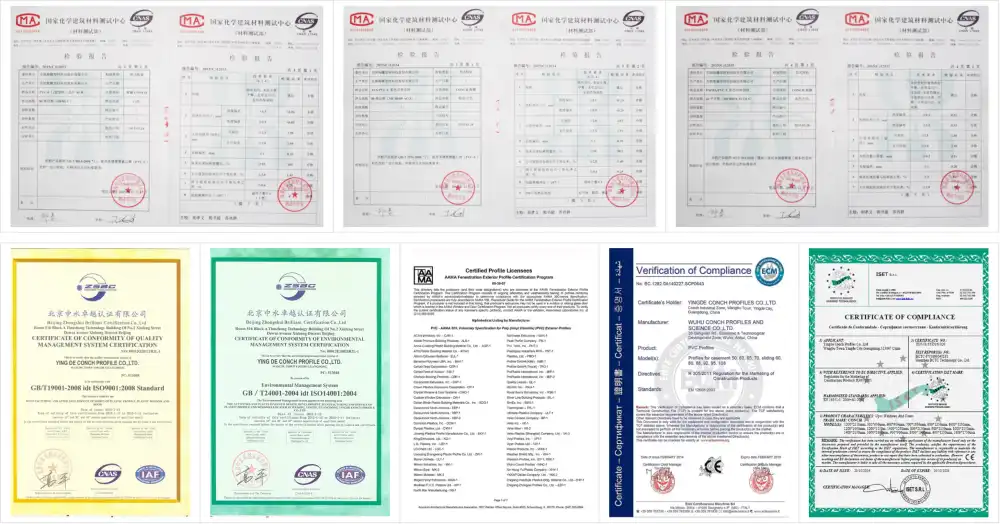

When looking at suppliers, it's best to choose ones that have both ISO 9001 certification and product-specific certifications like CE marking or AAMA certification. These certificates prove obedience to quality management systems and third-party performance verification, reducing legal risk for design professionals selecting foreign materials. Ask for case studies that show similar project scopes, especially small-batch custom orders, along with photos of how the work was installed and client references that you can contact directly.

Pricing transparency matters equally. Detailed quotations should list mold development fees, per-unit fabrication costs, finish upcharges, and crating specs. It can be hard to make apples-to-apples comparisons when there are hidden costs involved, like buying non-standard glazing or shipping faster than usual. When frames are shipped disassembled with pre-drilled hardware mounting points, suppliers who offer knock-down packing can cut freight numbers by 30% or more. This can save a lot of money on transcontinental shipping and make customs clearance easier.

Installation and Procurement Guide for Aluminum Arch Windows

Procurement Lifecycle and Delivery Coordination

To place an order for custom Aluminum Arch Windows, you need to send in dimensioned elevations, section details, finish specs, and times for when you expect the windows to be delivered. Manufacturers typically allocate 2-3 weeks for engineering review and shop drawing preparation, during which design refinements or value-engineering suggestions may surface. Another one to two weeks are needed to make the mold. Then there are the casting, manufacturing, and finishing steps, which add up to four to five weeks for standard complexity projects.

By planning delivery times around important construction milestones, you can avoid expensive storage or handling twice. Make sure that the shipping arrives after the rough holes are framed and weather-sealed but before the interior finishes are put on. This will give the installation teams enough room to work. For foreign purchases, keep in mind that customs clearance takes 5–10 business days, and if the project gets behind schedule, you can store the goods in a secured warehouse. Suppliers offering container load optimization services can mix arch windows with complementary standard units, maximizing freight efficiency across product categories.

Installation Best Practices and Risk Mitigation

Before a professional installer starts, they check the rough opening sizes against the shop drawings, making sure to account for shimming allowances and sealant joints. Arched openings demand plumb and level sills despite curved headers, needing laser-guided layout to avoid practical binding or water pooling. To fight wind suction and earthquake loads, structural bolts must line up with framing members and not just sheathing. They must be tightened according to the manufacturer's instructions to keep the frame from warping.

Glazing fitting in arched frames needs specialized methods. Curved glass lites must be set with consistent edge gaps around the outside. To avoid point-loading, setting blocks must be placed according to GANA standards. For structural silicone or compression gaskets to properly cure, they need to be installed at temperatures between 40°F and 95°F so that they can expand and contract with the temperature. Pre-installation mockups help crews get used to new hardware or gasket sequences before they start working at height.

Integrating weatherproofing turns out to be very important for performance life. Sill pan flashings need to go under the frame's edge and connect to wall membranes using curved and sealed joints. For head flashing details to work, the drip edges need to stick out past the arch's face so that water doesn't run back along the curves. At the interfaces of the jambs, expansion joints allow different levels of movement between the brick or concrete surfaces and the metal frames. This keeps the sealant bond from breaking during thermal cycles.

Maintenance Protocols and Lifecycle Management

Routine inspections every six months keep things running smoothly and looking good. Track systems and hinges benefit from dry lubricants—PTFE or silicone-based—applied after cleaning debris buildup that speeds wear. Every year, the integrity of the gasket should be checked, and any sections that show signs of UV or compression set should be replaced before water gets inside and damages the finishes. Powder-coated surfaces only need to be washed with light soap. Do not use rough cleaners or high-pressure washers, as they can damage the finish.

Planning when to repair parts of a window makes it last longer and costs less. Upgrading operators or locking mechanisms is possible with modular hardware designs instead of replacing whole sash assemblies. If an IGU seal fails, which can be seen by inter-pane condensation, it can be fixed by reglazing instead of replacing the whole unit, as long as the frame is still in good shape. Building relationships with suppliers who offer technical support hotlines and an inventory of spare parts cuts down on downtime when problems arise during occupancy.

Detailed records help with managing assets over the long run. Keep facility records of shop drawings, installation instructions, and as-built changes so that future renovation teams can find parts that work with the existing ones. Forward-thinking makers offer video installation guides that can be used as training materials for in-house maintenance staff or for hiring new contractors. This makes sure that the quality of service is the same across all of a company's properties. Technical parameter sheets with U-values, SHGC ratings, and structural test data make it easier for high-value properties to pass energy audits and get insurance.

Performance Disclaimer: Actual thermal, structural, and weatherproofing performance should be verified through product-specific testing reports and third-party certifications applicable to your project's regional codes and climatic conditions.

Case Studies and Design Inspiration for Luxury Aluminum Arch Windows

Recently, a boutique hotel in Napa Valley got a makeover that included semicircular arch windows with bronze anodized frames that matched the Mediterranean style of the estate. These windows framed views of vineyards, and Aluminum Arch Window options were also considered for their lighter weight and corrosion resistance, though the final choice remained bronze-clad. The design team chose triple-glazed units with warm-edge gaps that had a 0.28 U-value. This lowered the building's HVAC needs while keeping its original size. Knock-down shipping let the contractor schedule deliveries across different stages of building, so they didn't have to worry about storage issues on-site in the tight hillside position.

Modern coastal homes often have arching window walls that go from floor to ceiling. This is made possible by the strength of aluminum, which can span 10-foot spaces with few vertical mullions. In a project in Palm Beach, fixed radius transoms and operable casement bases were used together to make a hybrid system that balanced air flow and view enhancement. Using structural glazing methods, the exterior frames were hidden, giving the building a nearly frameless look that met storm impact resistance codes and the architect's minimalist goals.

In historic church renovations, it's important to copy the original fenestration patterns as much as it's important to improve performance. A Gothic Revival church in Charleston used powder-coated metal frames with curved tracery designs from the 1890s that were CNC-profiled and powder-coated in custom-matched cream tones. From a distance, the frames couldn't be told apart from old limestone. The condensation problems with the original steel windows were fixed by thermally broken frames. This protected the frescoes inside and made it possible to get tax credits for historic preservation.

Motorized Aluminum Arch Windows can be controlled by building automation systems, which is a new trend in smart home integration. Indoor air quality sensors set off automated ventilation sequences in high-end penthouse buildings. These sequences open arch casements gradually to keep the temperature comfortable without any human help. UV-sensing motors close windows before storms happen, keeping furniture safe and stopping water from getting in when no one is home. When installing these systems, low-voltage cable planning is needed, but they offer convenience that meets the needs of high-net-worth buyers.

Strategies for material contrast boost visual effect. When you put dark bronze metal frames next to white stucco exteriors, you get strong geometry. On the other hand, silver anodized finishes make glass curtain wall compositions look smaller. When applied to interior surfaces, wood-grain transfer films add warmth where full aluminum exposure might feel cold and industrial. These films keep the exterior durable without changing the atmosphere inside. These mixed methods meet the needs of both designers' aesthetic goals and real performance needs.

Conclusion

When choosing Aluminum Arch Windows for high-end homes, you need to think carefully about how customizable they are, how precisely they are made, and how good the supply partnership is. The material's natural benefits—its resistance to corrosion, design freedom, and thermal performance—make it perfect for high-end domestic uses where durability and good looks come together.

The success of procurement depends on early engagement with suppliers, clear pricing structures, and proven technical capabilities that cover everything from making the mold to providing support after installation. When architects put accuracy in measurements, durability of finishes, and logistics efficiency at the top of their list of priorities, they can get projects done on time and on budget, with fenestration solutions that are fit for high-end settings.

FAQ

Are aluminum arch windows suitable for coastal luxury homes?

Yes, metal naturally doesn't rust in salt water as much as steel or wood does. Choosing powder coating or PVDF finishes that are at least 60μm thick gives you extra protection against UV light and salt spray. Multi-layer EPDM seals stop wind-driven rain from getting in, which is frequent near the water. Rinsing with fresh water every few months gets rid of salt buildup, keeping the performance and appearance in good shape for decades of use.

What are the long-term cost savings of energy-efficient aluminum arch windows?

When compared to single-pane or poorly insulated windows, high-performance glass and thermally broken metal frames can cut heating and cooling costs by 20 to 35 percent. Triple-glazed units with Low-E coatings and inert gas fills have U-values below 0.30, which means they can get utility rebates in many places. Lessening the time that HVAC systems have to run increases their lifespan and makes the property more valuable and the people who live there happier.

What is the typical installation cost for aluminum arch windows in upscale residences?

The cost of installation depends on the size of the hole, how easy it is to get to, and any structure changes that need to be made. Because it's harder to level, shimming, and weatherproof curved profiles, custom Aluminum Arch Windows usually cost 40 to 60 percent more to install than rectangular windows. Professional installation that includes flashing should cost between $150 and $300 per linear foot of perimeter. However, specialized heritage work or high-rise access may make the costs go up even more.

Partner with Haolv Building Materials for Custom Aluminum Arch Window Solutions

Haolv Building Materials has been making architecture windows and doors for 19 years, so designers and builders who need reliable custom Aluminum Arch Window manufacturing can come to them. Our precise CNC manufacturing turns complicated design plans into frames made of 6063-T5 alloy that are exactly the right size. The profile thicknesses range from 1.4mm to 2.0mm, and the frames are structurally sound for both fixed and operable forms. Production methods that are ISO, CE, and AAMA-approved ensure airtightness up to Class 4 and water resistance above 700Pa, meeting the high standards needed for high-end residential projects.

We focus on custom orders for small quantities, ranging from 5 to 20 units. Our mold amortization plans are designed to be cost-effective, making it possible for people to afford custom arch profiles. Our collaboration with CONCH ensures stable alloy quality, and our own thermal break integration and multi-layer EPDM sealing systems make the best use of energy. Knock-down packaging cuts the amount of international shipping by about 30%, which lowers logistics costs and makes it easier to handle at the customs office and on the job site.

Technical support includes free reviews of design drawings, libraries of installation videos, and detailed parameter sheets with U-values, SHGC ratings, and structural test data. Compared to many European suppliers, our 25–30 day production cycle from order confirmation to container loading lets us finish projects faster. Email our team at kristin@haolvwindows.com to talk about your next custom Aluminum Arch Window project, get fabrication samples, or see our full collection of finish choices and hardware combinations that are perfect for high-end architectural uses.

References

1. American Architectural Manufacturers Association (AAMA). "Performance Standards for Aluminum Fenestration Systems in High-Performance Buildings." AAMA Technical Manual Series, 2021.

2. Carmody, J., Selkowitz, S., and Heschong, L. Residential Windows: A Guide to New Technologies and Energy Performance. W.W. Norton & Company, 2007.

3. Glass Association of North America (GANA). "Glazing Manual: Best Practices for Installation of Curved and Specialty Glass." GANA Technical Documentation, 2019.

4. Patterson, M. R. "Thermal Performance of Metal Window Frames with Polyamide Thermal Breaks." Journal of Building Physics, vol. 43, no. 2, 2019, pp. 156-178.

5. Straube, J. F., and Burnett, E. Building Science for Building Enclosures. Building Science Press, 2005.

6. U.S. Department of Energy. "Energy-Efficient Window Selection for Luxury Residential Construction: A Technical Reference." Building Technologies Office, 2020.
