How to Specify Aluminum Flush Windows for Contemporary Residential Facades

Choosing the right Aluminum flush windows comes down to how the sash sits inside the frame, how the frame drains behind it, and how a whole elevation keeps one flat plane across fifty openings. A flush window closes the sash into the frame instead of against it, so the glass, the sash and the outer frame finish level with each other. Four variables decide whether an order delivers that: the profile series and wall thickness, the thermal break and gasket stack, the glazing build, and the locking hardware and drainage detail. For trade buyers and procurement teams supplying residential developments, those four are also what decide whether the first container arrives without a claim against it.

Understanding Aluminum Flush Windows: Key Features and Benefits

What Makes A Flush Window Different From A Standard Casement?

On a standard casement the sash closes against the outer face of the frame and stands proud of it, typically by 8 to 12 mm on a residential profile. That step is what most buyers recognise as a casement window, and it is also where driven rain collects and where the elevation stops reading as a single surface. A flush window closes the sash into the frame instead, so the glass, the sash and the outer frame end in one plane.

The difference is mechanical rather than cosmetic. A flush sash has less overlap between sash and frame, so the gasket compression, the locking points and the drainage path carry more of the weather performance than they do on a projecting casement. The product page describes the range as 60, 70 and 80 series profiles in 6063-T5 alloy with 1.4 mm to 2.0 mm wall thickness, an EPDM gasket line, multi-point locking and an optional PA66 thermal break.

Which Profile Series Should A Facade Specification Call For?

The series number is the frame depth in millimetres, and it sets two limits at once: how deep a glazing unit the frame can swallow, and how far the section can span before it deflects under wind load. A 60 series covers domestic openings with a standard double unit; a 70 series is the usual choice when a thicker unit or a wider sash has to sit inside the frame, and an 80 series is specified for large fixed lights and tall elevations where bending governs.

Wall thickness matters as much as depth, and the range is quoted from 1.4 mm to 2.0 mm. A buyer who accepts the lower figure on a tall or exposed opening is buying a section that will move. Ask for the thickness per line item in writing, not as a range covering the whole order, because a mixed order is exactly where the thinner section ends up on the tallest window.

Bulk Procurement Considerations for Trade Buyers

A flush window order is normally a colour matched set for one elevation, so the commercial risk is variation between batches rather than a single defective unit. Fix the RAL number instead of a colour name, fix the finish system, because powder coating, anodizing, wood grain and PVDF cannot be mixed on one facade, and fix the gasket compound so a later batch does not arrive with a different seal.

Mixed containers suit this product because the same section serves inward and outward opening, fixed lights and screens, and only the machining changes. Initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding, and sample support lets a distributor check the flush detail and the finish before committing to a full container.

Climate Considerations: How Weather Conditions Affect Flush Window Performance

Cold Climate Requirements and Thermal Engineering

Aluminum conducts heat at roughly 160 to 200 W/(m.K), so a continuous metal path from the warm inner face to the cold outer face is a thermal bridge. The optional PA66 break separates the two halves of the section with a polyamide whose conductivity is about 0.3 W/(m.K), which is what keeps the inner surface above dew point through a cold winter instead of running wet.

A thermal broken aluminum window with a double unit generally lands between 2.0 and 2.7 W/m2K for the whole assembly, and a section without a break will not reach that whatever glass is fitted. In a cold climate the glass is half the decision; the frame, the spacer bar and the installation seal carry the other half, and only the first two are in the factory's scope.

Hot and Humid Climate Adaptations

In a hot humid market the priority inverts: the window has to shed water and resist ultraviolet rather than hold heat in. A flush design needs a drained and vented chamber behind the sash, otherwise the flat plane that makes the elevation clean also traps water against the gasket line. Weep slots, drainage caps and a slope on the sill belong in the order, not in a site instruction.

Solar control is the other half of the specification. A low emissivity coating and a SHGC figure chosen for the orientation do more against cooling load than a heavier frame, and on a west elevation shading beats insulation. Dark RAL finishes also run hotter in direct sun, so the colour is a performance decision as much as an aesthetic one.

Coastal and High-Wind Zone Specifications

A coastal site loads the window twice: wind pressure rises with height and exposure, and salt attacks the hardware before it attacks the extrusion. Specify the wind load class against the project rather than against a catalogue page, and specify stainless steel hardware and a finish system rated for the salt spray exposure of that site.

Because a flush sash has less overlap than a projecting one, the locking points and the gasket compression carry more of the weather resistance. That makes the hardware schedule a structural item: multi-point locking with shoot bolts, and hinges sized to the sash weight, rather than a two point lock chosen to reach a price.

Comparing Aluminum Flush Windows to Other Materials

Performance Analysis Against Traditional Frame Materials

Against PVC-U, aluminum wins on section strength and on sightline. A 6063-T5 section at 1.4 to 2.0 mm carries a larger sash without the internal steel that a PVC-U profile needs, and it holds a flush plane without the wall thickness a vinyl profile demands. PVC-U wins on thermal performance per unit of cost, because the material itself insulates where aluminum needs a break to do the same job.

Against timber, aluminum holds its dimensions through humidity cycles and needs no repainting cycle, which matters on a facade with fifty openings. Timber still wins on the warmth of the interior face and on heritage elevations where a flush sash is expected to look like painted wood. A wood grain finish on aluminum is the usual compromise, and it should be specified as a finish system rather than as a colour reference.

Glazing Options and Energy Performance

The product page lists tempered, 5+12A+5 double glazed and laminated units, and the choice follows the risk rather than the climate alone. Tempered glass is the baseline for impact and safety glazing; a double unit with a 12 mm cavity is the thermal workhorse; laminated glass adds the interlayer that holds a pane together after impact and takes the edge off traffic noise.

Frame depth sets the limit. A 12 mm cavity between two 5 mm panes needs roughly 22 mm of glazing rebate, and a triple unit needs closer to 40 mm, which is why the deeper series exists. Write the glass build and the frame series in the same line, because a glass schedule issued without the frame depth is the most common cause of a substitution at production.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification and Compliance Standards

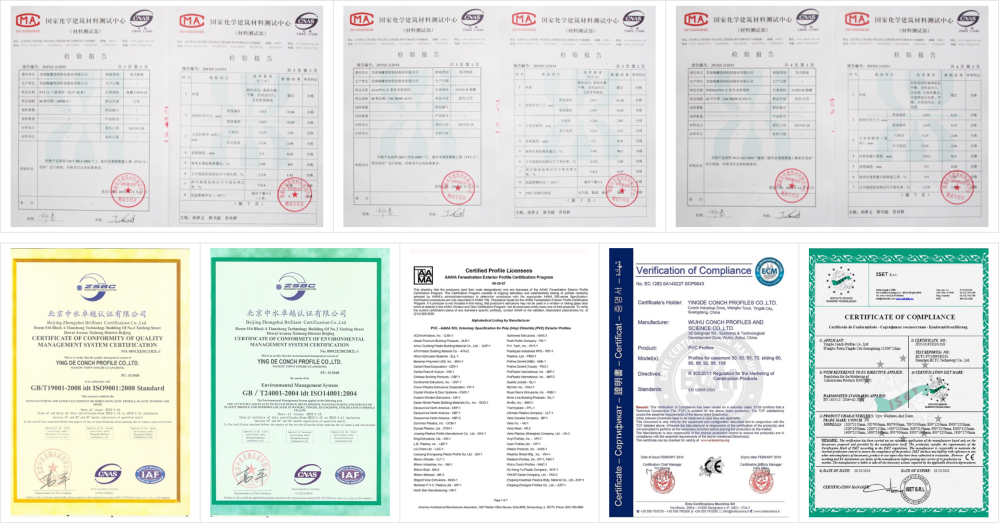

Compliance is a document trail, not a logo on a web page. Ask for the certification documentation that applies to the product family, for test reports on air permeability, watertightness and wind resistance to EN 12207, EN 12208 and EN 12210, and for the profile supplier datasheet covering alloy and wall thickness. Then check that the report matches the section actually quoted, because a report for a 70 series does not cover an 80 series order.

Customization Capabilities and Order Flexibility

Customization covers size, colour and finish, glazing build, hardware grade and screens, with OEM and ODM work accepted. The practical constraint is not what can be changed but what can be changed without a new quotation: non standard sizes and RAL colours are routine, while a new extrusion or a wood grain matched to a physical sample adds tooling and lead time. Put those items on their own line so the buyer can see what is driving the price.

Logistics and Installation Support

Flush windows ship assembled with the sashes hung, so the packing has to protect a projecting hardware set and a finished face at the same time. Confirm corner protection, interleaving, and whether units travel vertically or horizontally; confirm as well who supplies the fixing straps and the sill tray, since those are normally sourced locally.

Installation decides whether the flush detail survives the first winter. The frame has to be set in one plane, packed at the fixing points rather than in the middle of the section, and sealed with a backer rod and a compatible sealant rather than expanding foam alone. Standard delivery is 25 to 30 days from order confirmation, which leaves time for a site survey and a setting out drawing before the container is loaded.

Maintenance and Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

The routine is short but it has to be done on schedule: clear the drainage slots before the wet season, wipe the gasket line with a neutral cleaner rather than a solvent, and check hardware lubrication once a year on a coastal or dusty site. Powder coated and anodized faces need washing rather than polishing, and abrasive pads should stay away from both.

Early Warning Signs and Component Replacement

Water on the inner reveal after driving rain points at the drainage path or the gasket compression, not at the glass. A sash that no longer pulls tight against the frame usually means worn hinges or a dropped corner, and both are replaceable without changing the window. Condensation between the panes is a different fault: it means the sealed unit has failed.

Gaskets are the part that ages first, and EPDM is specified because it holds compression longer than a cheaper compound. On a coastal site the hardware is the second item to watch: stainless steel that shows pitting is a signal to replace before the locking points seize and the sash has to be forced.

Performance Enhancement Options

A window already in service can be improved without replacement: a laminated inner pane for acoustic and security gain, a solar control film where the coating was never specified, and adjustable hinges to restore compression on a sash that has dropped. None of these equal a correctly specified new unit, but they extend the service interval on a building that is not due for a facade upgrade.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

A flush window is a specification decision rather than a style. The profile series fixes the glazing depth and the wind capacity, the thermal break fixes the condensation risk, the gasket and drainage detail fixes the water performance, and the hardware fixes whether the flat plane still closes tight after two winters. A buyer who pins those four down in writing gets an elevation that looks the same at handover and in year five.

FAQ

Q1: How do I check whether a window is genuinely flush?

A: Run a straight edge across the frame face and the sash face. On a flush window the two sit in one plane within a millimetre or two; on a standard casement the sash stands proud by roughly 8 to 12 mm. Ask for a section drawing rather than a photograph, because the flush detail is decided by the profile and not by the assembly.

Q2: Is a thermal break necessary on a flush aluminum window?

A: It depends on the climate and on the condensation target. Without a break the inner aluminum face tracks the outside temperature closely and will run wet in a cold winter or in a chilled room. The PA66 break is quoted as an option on this range, so the decision should be made against a U-value target rather than by default.

Q3: Which profile series should I order for a large opening?

A: Match the series to the glass build and to the span. A 60 series takes a standard double unit in a domestic opening, a 70 series is the usual choice for a thicker unit or a wider sash, and an 80 series is specified where a large fixed pane or a tall elevation has to resist bending. Confirm the wall thickness per line item, quoted from 1.4 to 2.0 mm.

Q4: What are the lead time and the minimum order?

A: Standard delivery is 25 to 30 days from order confirmation, and initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding. Samples are available so a distributor can check the flush detail and the finish before committing to a full container.

Partner with Haolv Building Materials for Aluminum Flush Windows

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable aluminum flush window supplier. Our factory in Hunan Province works from ISO, CE and AAMA certification documentation, works with CONCH to keep raw material quality consistent, and runs a 25 to 30 day delivery schedule supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team works from your drawings and specifications to configure the profile series, the thermal break, the glazing build, the opening direction and the finish, and provides application guidance and project based technical support. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.
