What Are Common Sizes of Bay Windows Double Glazed Products?

When renovation contractors search for reliable double glazed bay window solutions, understanding standard sizing becomes the foundation of project success. Bay windows double glazed units typically range from 1800mm to 3600mm in overall width, with projection depths between 300mm and 600mm. Heights vary from 1200mm to 1800mm depending on architectural requirements.

These dimensions accommodate the majority of residential renovation projects across North America and Europe, where existing window openings follow predictable patterns established by decades of construction standards. Knowing these benchmarks helps purchasing managers request accurate quotes, reduces measurement errors during site surveys, and ensures compatibility with existing structural openings—ultimately avoiding costly remakes and project delays.

Understanding Double Glazed Bay Windows: Dimensions and Benefits

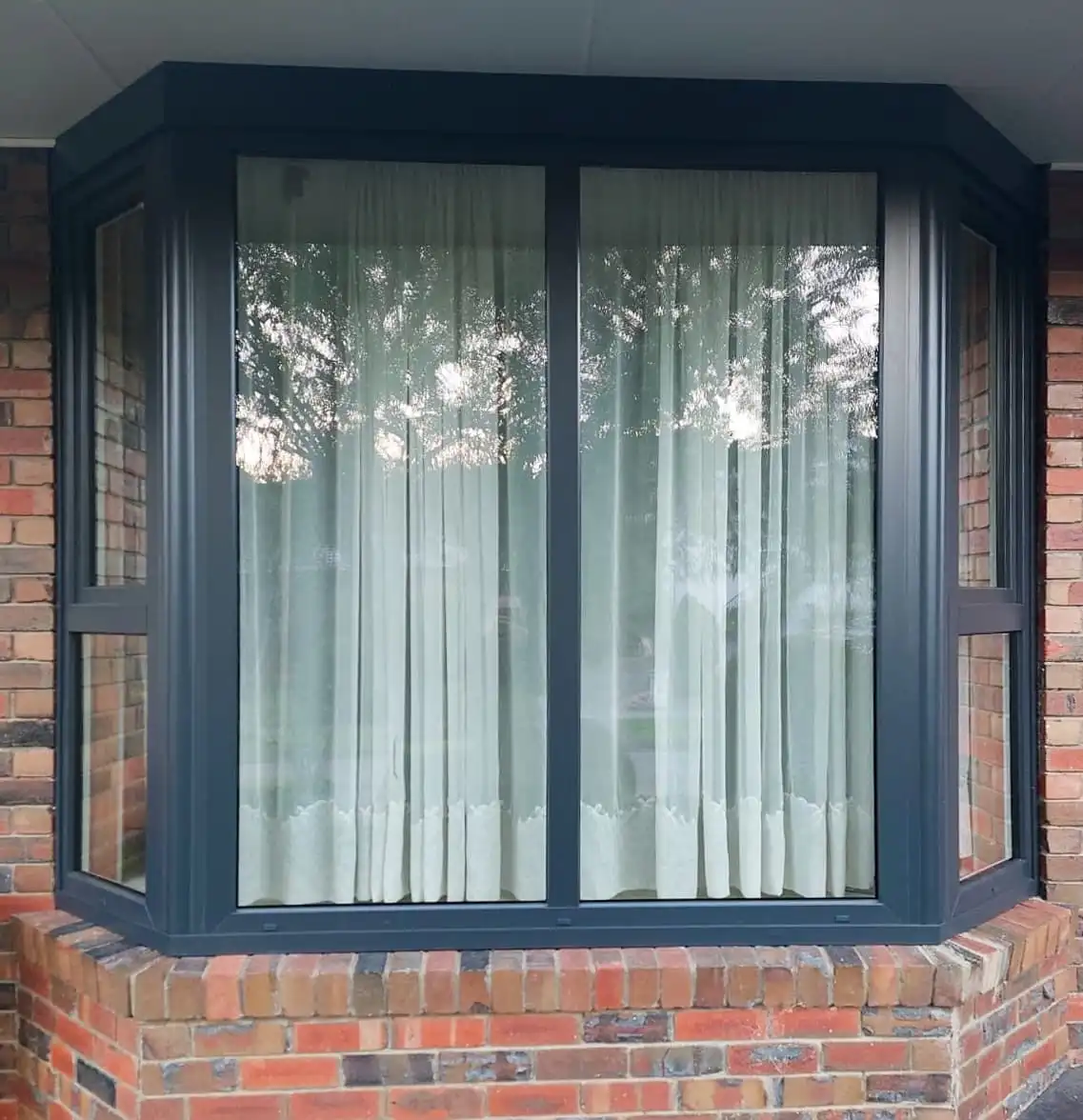

Bay Windows Double Glazed systems have three or more window panels arranged at certain angles. This gives the windows the outward projection that people like. The main window stays in place most of the time, but the side panels may have casement, slide, or tilt-and-turn systems. In this setup, the look is good and it works well.

Structural Composition and Angular Design

The angled arrangement follows standard layouts in the industry: 90-degree box bays make sharp, traditional profiles that work well for Victorian-style renovations; 135-degree angles make softer projections that look good in modern settings; and 150-degree bays offer subtle curves that make the most of interior space without overwhelming smaller facades. Each angle changes the amount of material needed and the estimates for the structure load. The materials used for the frame—reinforced aluminum (6063-T5 metal) or multi-chambered uPVC—must be able to handle both vertical loads and the side forces that come from the design being at an angle. This fact about the structure has a direct effect on the size limits, since bigger projects need thicker wall sections and stronger corner joints.

Key Performance Benefits Tied to Proper Sizing

The performance of thermal insulation changes a lot depending on the size of the window. A bay window that is the right size and has 5+12A+5 double glazing (5mm glass, 12mm argon-filled hollow, and 5mm glass) has a U-value of 1.4 to 2.0 W/m³K when the frame's thermal break zones line up with the window's measurements. When units are too big or don't have enough frame support, thermal bridging happens at the corner joints, which hurts the performance of the insulated glass unit.

Quality systems can cut down on noise by up to 38 decibels, but only if the window gaps (12mm, 16mm, or 20mm) are kept the same across the whole bay structure. Reliability in waterproofing is most important at the bay window head (top section), where bad sizing causes flashing overlap to not be enough, which is the main reason people complain about leaks. Accurate dimensional planning makes sure that drainage paths line up properly with building shell systems. This stops water from getting inside and damaging the finishes on the inside.

Common Sizes and Dimension Standards of Double Glazed Bay Windows

Standard Width Ranges for North American Markets

In the US and Canada, renovation projects often come across window openings that are all about the same size. Residential bays with one story usually have a total width of 1800mm to 2400mm, which is enough space for three window panels with side parts that are 600mm to 800mm wide. Two-story uses often go up to 3000mm–3600mm lengths, especially in living rooms and master bedrooms where people want as much natural light as possible.

When 2x4 and 2x6 lumber became normal building materials, these sizes became the norm for frame. When contractors order bay windows for remodeling projects, they should carefully check the rough opening measurements. For example, a 2400mm bay window needs a rough opening width of about 2440mm to allow for shimming and insulation. However, openings that aren't square in the field often need to be fixed.

Height Specifications and Head Height Considerations

Choosing the right window height strikes a balance between the height of the ceiling inside and the size of the building's exterior. Standard home heights range from 1200mm to 1800mm, with 1400mm and 1500mm being the most common for single-story buildings. Taller units (1600mm–1800mm) work well on two-story surfaces that need bigger opening areas to make them look bigger. Head height, which is the distance from the finished floor to the top of the window, is usually between 2000 mm and 2100 mm.

This gives window treatments enough room to hang and keeps door heights in proportion. This measurement directly affects the weight of the glass and how it is moved. For example, a 1500mm-tall bay window with three side panels can weigh more than 150kg when fully assembled, which means that it needs to be installed by a crew of several people using special lifting equipment.

Projection Depths and Their Impact on Spatial Configuration

How far the bay sticks out from the building's front affects both how it looks on the outside and how it can be used on the inside. Shallow projections (300mm–400mm) add a small amount of space inside while requiring few structural changes to the walls that are already there. Medium extensions (450mm–550mm) make window seat levels that are useful, and they are often used to update bedrooms and eating rooms.

For deep projections (600 mm or more), you need specialized support brackets or cantilevered floor extensions, which make the job more difficult and cost more. In many places, extensions bigger than 600 mm are considered structural adds that need separate permits. This is something that is taken into account when buying things. Deeper bays also have more glass, which lets in more light but could make south-facing installations too hot if they don't have enough Low-E coatings or external shading.

Angular Configurations and Frame Material Implications

Pay attention to the link between bay angle and frame material longevity. Welded miter joints and thermal break continuity make aluminum frames great for 90-degree angles, where they work best with sharp corners. The 6063-T5 alloy standard has a tensile strength of more than 205 MPa, which means that even in big setups (3000mm+), the corners won't sag. When the curves are between 135 degrees and 150 degrees, the uPVC frames work well because the corners that are fusion-welded are not under as much stress.

But because uPVC has a lower modulus of elasticity than aluminum (about 3 GPa vs. 70 GPa), frames wider than 2400 mm need steel reinforcement. Long-term performance depends on both the material and the size. For example, metal stays the same size when temperatures change from -30°C to +50°C, while uPVC may slightly expand when heated, which can make it hard to line up hardware in harsh conditions.

Energy Performance Correlation with Size and Glazing Type

Because they cover more space, larger bay windows lose heat more quickly. It is about 40% more likely for a 2400mm-wide bay with standard double glazing (U-value 2.0 W/m²K) to lose heat than an 1800mm unit with the same construction. Choosing Low-E coatings and argon gas fills lowers U-values to 1.4 W/m³K, which partially makes up for losses caused by size. The glazing gap size (12mm, 16mm, or 20mm) affects heat efficiency by working with the bay size. Wider gaps (16mm–20mm) make bigger bays more insulated by slowing down convective heat transfer within the space.

However, the benefits decrease after 20mm because gas convection cells form. When buying things, procurement teams should figure out whole-unit U-values instead of center-of-glass values because frame edge effects get bigger in multi-panel bay configurations. If you only measure the center glass of a 3000mm bay window, you might get a 15–20% lower overall U-value than what the readings show. This can make it harder to meet energy code standards in places with strict envelope rules.

Comparing Size-Related Factors in Double Glazed Bay Windows

When installing smaller Bay Windows Double Glazed units, two-person teams can usually finish the job in one day, as long as the rough holes are ready. The light weight and small size make it easy to move through standard doorways and up and down stairs. Mid-size units (2400mm–3000mm) need three to four fitters and automatic lifting help, especially when they are put in from the outside. It's important to be able to get to the site; setups on small side yards or multiple floors may need to rent a crane, which adds £300 to £600 to the project costs.

Large custom bays (3000mm+) usually come as frames that are already put together and separate glass panels to lower the risk of damage during shipping. This "flat-pack" method cuts shipping volume by up to 35%, which lowers the cost of containers for foreign sales by a lot. However, it takes several hours longer to put together on-site. Installation costs make up 15–25% of the total project cost for normal sizes. This number goes up to 30–40% for custom units that are too big or too small because they need special tools and crews that work longer hours.

Material Selection Impact on Size Flexibility

Because they are stronger and lighter than uPVC options, aluminum frames can fit a wider range of sizes. A reinforced aluminum bay can span 3600 mm without any extra supports in the middle, but uPVC systems usually need extra framing after 3000 mm. This difference is clear in business settings or high-end domestic projects with lots of large windows that let in lots of light. Aluminum's thermal break technology—polyamide strips separating the inside and outside frame sections—works well in all size ranges, but uPVC's multi-chamber design might not work as well in large profiles where wall thickness limits the number of chambers.

Different materials also have different surface finishes. Powder painting on metal comes in hundreds of colors and lasts for 15–20 years. On the other hand, uPVC's built-in color (usually white or woodgrain foils) may fade slightly after 10–12 years in high-UV areas. These variations in durability affect how much something will cost over its entire life, especially for contractors who are in charge of managing warranties that last more than one year.

Energy Efficiency Analysis: Size Versus Glazing Configuration

Size-related energy impacts can be seen through a practical comparison. Take a look at two examples: a 2000mm bay window with standard double glazing (5+12A+5, U-value 2.0 W/m²K) and a 2800mm bay window with improved triple glazing (4+12A+4+12A+4, U-value 1.1 W/m²K). The larger triple-glazed unit loses only 5% more heat each year, even though it has a 40% larger surface area. This is because it is better insulated. The triple-glazed choice, on the other hand, raises the cost of materials by 30–40% and makes the building heavier by about 45%, so it needs better gear.

This trade-off is better in cold places (heating degree days >4000), where the extra cost is quickly paid for by the savings in energy use. In mild areas, normal double glazing in bays that are the right size is a better deal. When making a purchase choice, you should think about the energy costs in your area and the building codes that apply. For example, some places now have maximum U-values that mean bays wider than 2500mm need to have better windows.

Warranty and Maintenance Considerations by Size Category

Most manufacturers offer warranties on sealed insulated glass units for 5 to 10 years. Premium products come with longer warranties (15 to 20 years). Size-related restrictions are often included in warranty terms. For example, units wider than 3000mm may have shorter coverage periods because heat cycle puts more stress on the seal. Frame warranties depend on the material. For example, metal systems with ISO 9001 certification usually come with 20–25 year structural guarantees. Good uPVC frames, on the other hand, come with 10–15 year warranties against discoloration and bending.

As a business grows, so does its maintenance needs. During the winter, larger bays collect more condensation on the inside surfaces, so they need to be cleaned more often to keep mold from growing on the sills and gaskets. Adjusting hardware gets harder as the unit gets bigger. For example, operating sashes in bays wider than 2500 mm may need to have their hinges oiled and their rollers adjusted every year to keep them running smoothly, while smaller units only need this done every two years. These ongoing costs rarely go over £50–£80 a year, but they should be taken into account in a whole-life cost analysis.

Procurement Insights: Sourcing Double Glazed Bay Windows by Size

Prices for Bay Windows Double Glazed units don't go up or down in a straight line with size. A 2400mm-wide unit doesn't just cost 33% more than an 1800mm unit; it usually costs 45–55% more because the amount of glass it needs to cover, the requirements for frame support, and the tools it needs are all higher. 30–40% of the cost of materials is made up of glass, and the surface area grows as the square of the length and width.

A 2400mm bay has about 1.77 times the glazing area of an 1800mm unit of the same height, which has a direct effect on the cost of the materials. Due to the need for strengthening, frame costs stay the same as bay sizes get bigger. This is because bigger bays need thicker wall sections (usually 2.0 mm versus 1.5 mm aluminum wall thickness) and stronger corner joints. Hardware costs 10–15% of the total cost, and they go up a lot in big bays that need multi-point locking systems and heavy-duty locks that can hold 80 kg or more of sash weight.

For orders of 20 or more standard-sized units or more, bulk buying can cut costs per unit by 12 to 18%. Dedicated production runs that cut down on tool changes and material waste help manufacturers be more efficient. When you mix custom sizes in the same order, you usually only get 6–8% in volume discounts because each size has its own setup steps. When overseas contractors use flat-pack shipping configurations, they save even more money. For example, disassembled bay windows reduce container volume by 30–35%, which means they can ship 40% more units per shipment than fully assembled options. Trans-Atlantic lines, where freight costs more than £2,000 per container, are great places to use this method.

Supplier Selection Criteria for Custom Sizing

Reliable suppliers show that they can do more than just make things. Providers should give thorough shop drawings that show frame cross-sections, drainage pathways, and flashing integration details. The level of technical help is important. This paperwork is very important when working with local building inspectors who check the performance of the envelope. Maximum dimensions (premium manufacturers can handle bays up to 4000mm wide), minimum order quantities (flexible suppliers can handle orders as low as 5 units for special projects), and tolerance specifications (premium manufacturers keep ±1.5mm dimensional accuracy versus ±3mm for standard products) are all signs of production capacity.

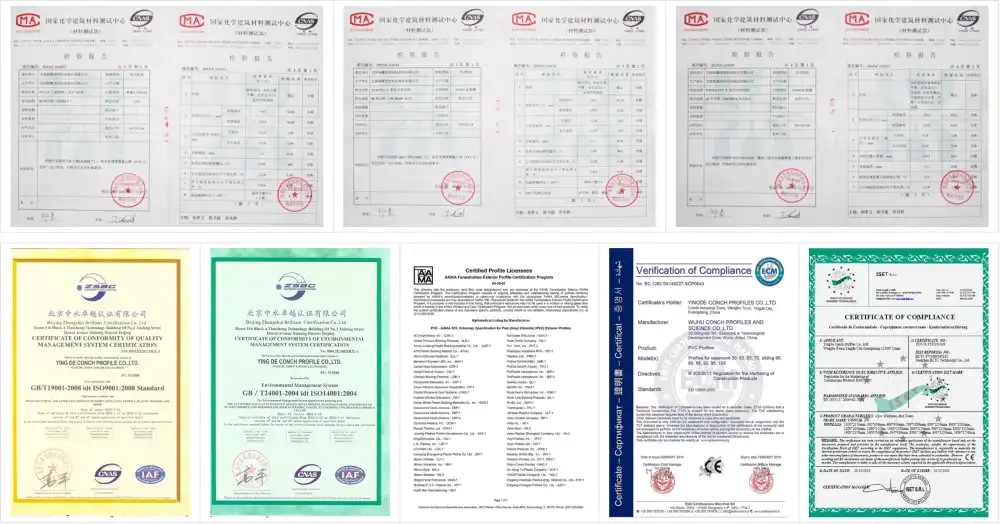

Professional sellers and stock vendors can be told apart by how transparent their quality assurance is. Certifications are important. For example, ISO 9001 certification proves that the process is controlled, CE marking proves that the product meets European safety standards, and AAMA certification proves that the product passed performance tests for North American markets. In addition to certificates, you should look at the testing protocols.

Reliable manufacturers do air infiltration testing according to ASTM E283 standards, water penetration testing according to ASTM E331, and structural load testing according to AAMA 101. These tests should be specific to the product, not general ones that are used for a lot of different product lines that aren't connected. When suppliers offer plant tours or third-party inspection services, it shows that they are confident in the quality of their products, which leads to fewer problems in the field and guarantee claims.

Partnerships for getting materials show that the supply line is stable. When manufacturers work with well-known material suppliers, like CONCH for uPVC profiles or well-known aluminum extruders, the material specifications are always the same, so there is no variation from batch to batch. This uniformity is very important for staged projects where windows are shipped over a period of months. Differences in materials can make color mismatches that are obvious and make customers angry.

Practical Ordering Guidelines for Renovation Contractors

The most important part of the procurement process is getting the measurements of the site right. Measure the rough width of the opening at three different heights (top, middle, and bottom) and write down the smallest measurement. Openings that aren't square are common in buildings that are more than 30 years old. Again, use the smallest number to measure the height at both the jambs and the center.

The width of the projection must take into account the thickness of the finishing on the inside. For example, a 450mm projection to bare studs is only 420mm after drywall and trim are installed. Take pictures of the structure around these measurements to keep track of them. Window manufacturers can often tell if there are potential installation problems just by looking at the framing.

When planning lead times, the level of customizing should be taken into account. Standard-size bay windows that are already in stock may be shipped within 10–15 days. However, fully customized units need 25–30 days to be made plus 10–15 days for international shipping. Allow an extra week for clearing borders and delivering within the country. Ordering during off-peak times, which in the Northern Hemisphere are usually mid-January to March, can cut lead times by 5–7 days because makers don't have as many orders to fill.

Clear specifications keep mistakes from happening that cost a lot of money. Purchase orders should include information about the frame's material and finish, the type of glass used (including where the Low-E coating is placed and what kind of gas fill is used), the hardware layout (operating sashes vs. fixed panels), and the angles. Include both the rough and finished opening measurements separately. Most fit problems happen when these measurements are not clear. Ask for proof drawings before production starts. The two to three day wait for drawing review keeps you from having to pay a lot more for expensive remakes because of misunderstandings.

Performance Disclaimer: Specific thermal, acoustic, and structural performance values depend on final product configuration and should be verified against manufacturer test reports and third-party certifications. Field performance may vary based on installation quality and site-specific conditions.

Maintenance, Lifespan, and Performance Optimization by Window Size

Smaller Bay Windows Double Glazed units (less than 2200 mm wide) need basic maintenance every three months. This includes cleaning the glass with cleaners that don't contain ammonia, wiping down the frame's weep holes to make sure water drains away, and checking the compression of the weatherstripping. It takes about 20 minutes to do each of these jobs. Large and mid-sized bays need more care. When windows are bigger and heavier, they put more stress on the hardware that moves them, especially friction hinges and moving track rollers.

Every six months, putting silicone-based lube on the pivot points and track lines keeps them from sticking and increases the time between hardware service visits. When the installation is bigger, it's more important to check the perimeter sealant, because the frame and building structure can move apart more, causing the sealant to separate at the corners. Water damage to wall systems can be avoided by checking outdoor sealant joints once a year and reapplying sealant as needed.

Size-Specific Maintenance Protocols

Glazing seal integrity needs to be checked regularly. However, bigger units fail more quickly because they are under more temperature stress. Keep an eye out for condensation on the inside of the glass panes. This is a clear sign that the seal has failed and the glass unit needs to be replaced. Quality sealed units usually work consistently, but being in harsh circumstances speeds up the breakdown process. Salt air affects sites near the coast, high elevations inland expose them to strong UV rays, and harsh temperature changes in the north. These external factors can shorten the life of seals, so they should be checked regularly. Professional checks once a year, which cost between £80 and £120 per bay window, find problems early on, before they get worse and cost a lot to fix.

Durability Expectations and Replacement Planning

Size alone doesn't determine how long a frame will last; frame material and construction quality do. With the right powder finish and thermal break structure, well-made aluminum bay windows can work reliably for 25 to 30 years before they need major repairs. The functional life of uPVC frames is usually 20–25 years, but after 15 years in high-UV environments, they may start to look bad (chalk fading, slight yellowing). As seal failures build up over 15–20 years, glass units—the most vulnerable part—usually need to be replaced. However, premium products with high-performance spacers and advanced sealants may make this last longer.

Hardware needs to be replaced more often than frame or glass. Depending on how they are used, friction hinges on working sashes usually need to be replaced every 15,000 to 25,000 rounds, which is 8 to 15 years. Locking devices have gaps that are similar. The modular design of high-quality bay windows lets you change out parts without affecting the whole system, which is very helpful for managing the duration of the product. When buying things, it's smart to choose systems with replacement parts that are easy to find. This is because proprietary hardware from old manufacturers makes replacement difficult and expensive.

Performance Enhancement Strategies for Existing Installations

There are ways to make changes even after the initial download. Adding an interior storm panel to older bay windows with standard double glazing can lower their U-values by 0.3 to 0.5 W/m²K for a small fee (£200 to £400 per bay, depending on size). Awnings, solar screens, or outdoor blinds can help cool south-facing bays down by up to 60% in the summer, which solves the problem of overheating that often comes up with deep-projection setups. These improvements are especially helpful when replacing all the windows is too expensive.

Upgrading the weatherstripping is a cheap way to improve the performance. Using compression-style EPDM gaskets instead of standard pile weatherstripping can cut air leaks by 30–40%, making it noticeably warmer near windows in the winter. This fix only costs £50–£80 per bay, but it improves thermal efficiency by the same amount as lowering the U-value by 10–15%. Systematic replacement of weatherstripping is a good way for contractors who are in charge of rental homes or business buildings with many bays to get a good return on their investment.

Head flashing leakage is still a problem, but new waterproofing improvements have fixed it. Putting peel-and-stick membrane flashing on top of metal head flashing makes two water barriers, which increases the time that the roof doesn't leak. This preventative measure, which costs £80 to £150 per bay, including labor, is much cheaper than fixing interior finishes that have been damaged by water after a leak has happened.

To make international buying easier and cut down on shipping costs, we offer full installation support packages that include detailed technical specification sheets that show exact sizes and tolerances, step-by-step installation video guides that show the right way to attach structures and integrate flashing, and printed installation manuals with sections for fixing problems. Our bay window systems come in flat-pack configurations that reduce the volume of containers by about 30%.

This cuts down on logistics costs by a large amount, which is a practical strategy that overseas contractors use to keep project prices competitive. Customization is still a big part of our business plan. We can work with non-standard angles, changed projection levels, and special glazing needs without charging extra for smaller orders. When planning production, speedy delivery is a top priority. Standard configurations ship within 25–30 days of order confirmation, which helps builders stick to tight remodeling schedules without having to pay expensive expediting fees.

Conclusion

To buy Bay Windows Double Glazed units successfully, you must first understand how standard size rules interact with the unique needs of the project. The most common sizes for home renovations are widths between 1800mm and 3000mm, heights between 1200mm and 1800mm, and projections between 300mm and 600mm. These sizes can be used as reliable starting points for developing specifications. These measures are based on decades of building experience and continue to work well for most replacement jobs.

Size, material choice, and glazing requirements all affect how well the building keeps heat in, how well it stays together, and how long it lasts. Quality uPVC systems are a great value in standard size ranges, while aluminum frames are stronger when used in larger sizes. Better glass choices, like Low-E coatings, argon gas fills, and the right amount of space between cavities, save money in bigger bays where more surface area would normally make the windows less energy efficient.

Strategies for buying things that focus on customization, flat-pack shipping, and full installation support have real benefits, such as lower shipping costs, fewer problems in the field, and more stable project timelines. These practical benefits give businesses a direct edge in the remodeling market, where project margins are still low and customer standards keep going up.

FAQ

What are the most common bay window sizes for residential renovation projects?

Most work on remodeling homes falls within a few expected Bay Windows Double Glazed size groups. Between 1800mm and 2400mm in width is where about 65% of replacement projects fall, with 2100mm being the most common measurement. For single-story uses, most heights fall between 1400mm and 1500mm. Projection depths between 400 mm and 500 mm create enough room inside while still meeting the structural needs. These measurements are based on the standard rough opening sizes that have been made by common wood frame methods in North America and Europe for the past eighty years.

Can manufacturers produce custom sizes for unusual openings?

Reliable makers often work with custom sizes that are outside of the normal amounts. The narrowest widths that can be used are usually around 1200 mm, and the widest are usually around 4500 mm. The same is true for height and projection. Prices will be 15–25% higher than normal setups for custom sizes, and production times will be 5–10 days longer. When working with historic properties or architectural designs that use non-standard openings, the investment pays off because custom fabrication guarantees a perfect fit and avoids the need for expensive changes in the field.

How does window size affect thermal performance and energy costs?

Size affects energy efficiency in two ways: directly by changing the surface area and indirectly by changing the frame-to-glass ratios. Larger windows increase the total area where heat can move, which means that more energy is needed. A 3000mm bay loses about 35% more heat than a 2200mm unit that is built the same way. However, size-related fines can be avoided by selecting better glazing systems, such as those with Low-E coatings, argon fills, and low U-values.

Large bays that are well-designed and have good glazing often work better than smaller windows that have bad glazing. This shows that specification quality is more important than size alone. In moderate conditions, the difference in annual energy costs between a 2000mm bay and a 2800mm bay is usually between £25 and £45, given that the quality of the glazing is the same.

What sizing considerations affect shipping and installation logistics?

Shipping options and on-site handling needs are based on the item's physical measurements. Bay windows that are less than 2400 mm wide and 1600 mm high usually come pre-assembled, which cuts down on the time needed to put them together in the field. Larger units usually need to be shipped flat-pack, with the frames and glass panels separated, to keep them from getting damaged during transport and to save money on freight costs.

This way of taking things apart cuts the amount that needs to be shipped by up to 35%, which saves a lot of money on foreign freight costs, but it takes an extra 2–4 hours to put everything back together again. Weight becomes very important for lengths greater than 2600 mm; units weighing more than 180 kg need special lifting tools, which changes how big the installation crew needs to be and how they can get to the site.

Partner with Haolv Building Materials for Your Bay Window Double Glazed Supplier Needs

To buy bay windows, you need a manufacturing partner who knows both how to make the windows and how to put them in the real world. For 19 years, Haolv Building Materials has been making Bay Windows Double Glazed systems for the tough renovation markets in North America and Europe. Our frames are made of 6063-T5 metal, which is a reinforced aluminum alloy with built-in thermal break technology. They have U-values as low as 1.4 W/m²K, which meets strict energy codes without losing structural integrity. Each unit comes with ISO, CE, and AAMA certifications, as well as a full set of quality tests that confirm it can withstand air infiltration up to Grade 8 (EN 12207), water resistance up to Grade 9A (EN 12208), and wind loads up to 2400 Pa.

We are experts at giving remodeling workers the customization options they need. Our engineering team can work with non-standard sizes, different angles (90°, 135°, and 150° are possible), and special window needs, such as tempered, laminated, and Low-E insulated glass units with hollow spacing of 12mm, 16mm, or 20mm. When compared to fully assembled options, flat-pack shipping setups save you about 30% on transport costs, which is a big plus for buying things from other countries. Production efficiency is still a top priority. Standard orders ship 25–30 days after confirmation, which helps you stay on schedule with your renovation projects.

Email our technical team at kristin@haolvwindows.com to talk about the specifics of your project. We'll give you advice on the right size, performance specs, and clear price that fits your project budget. We have a lot of information about our products at haolvbuilding.com, where you can look at all of our commercial-grade window systems made for reliable professional builders.
