What Are the Advantages of Installing Aluminum Arch Window?

Installing curved windows on heritage buildings or luxury villas demands precision, durability, and visual harmony—qualities that Aluminum Arch Window systems deliver consistently. These architectural fenestration solutions address the core challenges faced by custom window installers and design studios: achieving exact curvature tolerances, managing tooling expenses on low-volume orders, and ensuring flawless site assembly. Over nineteen years working with restoration architects and bespoke contractors, we've witnessed how well-engineered curved aluminum frames transform ambitious design concepts into reality while keeping logistics manageable and costs predictable.

Introduction to Aluminum Arch Windows

Curved Aluminum Arch Window systems have gracefully rounded profiles made from 6063-T5 alloy. They are made to hold tempered or heat-bent glass panels in a variety of shapes, from small arcs to full semicircular ones. These unique goods, which are different from standard rectangular units, are used to make architectural statements in churches, period renovations, and modern high-end homes where standard joinery can't match the look that is wanted.

Procurement managers and lead designers like Aluminum Arch Windows because they can be easily shaped. CNC bending methods can copy architect-supplied CAD models with arc tolerances within ±2mm, which is important when retrofit holes don't allow for field adjustment. The material is stable in a wide range of conditions, from dry areas in the Middle East to humid coastal areas in Europe. It doesn't rust and keeps its shape even when the temperature changes. Following the rules set by ISO, CE, and AAMA makes the approval process faster, especially for projects that need to show structural engineers and building authorities proof of performance.

Knock-down packing, in which frames are sent in pre-cut, numbered pieces that need to be put together on-site, reduces the amount of space needed for shipping by about 30%. This means lower freight costs and a lower chance that fragile curved sections will get damaged in transit. This modular approach works really well for small-batch custom orders that are common at small architecture firms.

Core Advantages of Aluminum Arch Windows

Superior Structural Integrity and Longevity

Aluminum Arch Window profiles keep their shape even when they're loaded, which is very important when they need to span large spaces with few supports in between. The yield strength of 6063-T5 is good enough for setups with more than one floor, and the natural oxide layers stop atmospheric rust without any extra treatment. Unlike wood, which expands and contracts when the humidity changes, or uPVC, which can sag when stressed for a long time, aluminum maintains its shape over many years of use. Similar in strength to iron, steel is heavier and more likely to rust if it isn't fully galvanized.

Profile wall widths of 1.4mm to 2.0mm are a good compromise between rigidity and workability. They allow for complex curves without lowering wind-load performance. Multi-layer EPDM gaskets built into the frame perimeter achieve airtightness ratings of up to Class 4 and water resistance levels exceeding 700Pa, meeting strict weatherproofing standards for open areas.

Thermal and Acoustic Performance

Modern thermal break technology, which involves putting PA66GF25 polyamide strips inside Aluminum Arch Window extrusions, stops heat from moving along conductive paths, which greatly raises U-values. When paired with double or triple insulated glass units (IGUs) with Low-E coatings, these assemblies help businesses and homes meet new energy standards. Laminated glass layers inside IGUs reduce outside noise even more, which is helpful for homes in cities that are close to traffic areas.

Sound Transmission Class (STC) scores of 38dB to 42dB have been found in similar setups during acoustic tests. This range is good for mixed-use developments and hospitality projects where sound isolation is important for guest comfort. When heat-bent glass is curled to fit frame curves, it gets rid of planar mismatches that weaken seals, which is a typical way for retrofits to fail.

Unmatched Design Flexibility

Custom CNC manufacturing can make more than just half-circles. The same base metal can be used to make circular, segmented Gothic, parabolic, and asymmetric shapes. Powder coatings (minimum 60μm thickness) in RAL color palettes and PVDF fluoropolymer coatings for harsh UV and salt-spray environments are the different types of finishes that can be used. Using wood-grain transfer printing, realistic wood textures can be added to Aluminum Arch Window surfaces. This meets tradition rules without the upkeep that comes with wood.

You can choose from tempered safety glass, laminated security layers, custom tints, or fritted designs on the glass. All of these are added to the frame during assembly to keep the sightline consistent. This flexibility lets planners choose the same material system for different stages of a project, which makes it easier to coordinate the supply chain and train installers.

Practical Benefits for Procurement and Installation

Simplified Logistics and Faster Project Timelines

Because Aluminum Arch Windows are so light—about one-third the weight of similar steel sections—they require less handling and rigging equipment during installation. Knock-down shipping configurations take curved units apart into straight or barely curved pieces that fit well in standard containers. This reduces the amount of freight and the costs that come with it by about 30%. Numbered parts and thorough assembly instructions (with training videos) make it possible for installation teams that aren't used to working with curved joinery to get factory-level accuracy on-site.

Custom profiles usually have lead times of 25 to 30 days from the time the order is confirmed until they are delivered. This time frame works well with phased construction schedules. Reliable relationships with sellers of raw materials, like long-term deals with well-known alloy suppliers, protect against supply problems and ensure consistent delivery even for small orders of five to twenty units per project.

Low Maintenance and Lifecycle Value

Once it's installed, Aluminum Arch Window fenestration doesn't need much care other than cleaning the tracks and lubricating the rollers every so often. These are easy jobs that can be added to regular building maintenance. Powder-coated or PVDF-finished surfaces don't chalk or fade, so they keep their look without having to be painted again. In contrast, wooden frames need to be stained or sealed every couple of years, and steel units need to be checked for rust.

Total cost of ownership goes down because the service life is longer, which is often measured in decades instead of years. This is a strong argument for procurement managers who are watching their budgets. Documented salt-spray test results (ISO 9227) of more than 1,000 hours show that the product is durable enough to be used in coastal installations. Thermal cycling tests also show that the product's dimensions stay the same at high and low temperatures.

Cost-Effectiveness Through Bulk and Modular Ordering

Unit pricing can save you money when you buy in bulk, but the real money-saving benefit comes when you spread the cost of tools like custom bending dies and glass molds over even small orders. Clear pricing that breaks down costs for materials, tools, and finishing lets designers change specs without making costs go up too much. With factory-direct sourcing, there are no markups for distributors, so the savings go straight to project budgets.

Some labor costs are also put off until the installation phase because local teams can get lower hourly rates than factory workers in high-cost areas. Technical parameter sheets and pre-shipment quality reports with checks for dimensions, finish thickness, and seal integrity help keep costs and plans in check by reducing the need for repairs on-site.

Aluminum Arch Windows vs. Alternative Materials: A Rational Choice

Comparative Material Analysis

Curved wooden frames have a handmade look and match the period, which are both qualities that are valued in repair settings. But wood is easily damaged by water, insects, and UV light, so it needs a lot of care and doesn't last long in climates that change a lot. Purchasing managers have to deal with more replacements and unknown long-term costs.

uPVC (unplasticized polyvinyl chloride) is similar in price at first, but it isn't as rigid and can't be used for long spans or tall spaces without steel plates to support it. This means that the weight and corrosion benefits are lost. The color stability of uPVC finishes under UV light is still worse than that of Aluminum Arch Window finishes, and the recycling infrastructure for old uPVC parts is not as good as that for aluminum.

Steel profiles are good for heavy-duty industrial glass where load-bearing requirements are higher than domestic standards. However, the density of the material makes foundations more important and makes it harder to make curved windows. Protective coats add steps to the process and cost money. Also, heat conductivity without breaks hurts the efficiency of energy use.

Glazing Options and Performance Differentiation

For low-level installs, safety standards say that tempered glass must be heat-strengthened so that it breaks into small pieces. Laminated layers connect glass sheets with interlayer films, keeping broken pieces together and improving safety and soundproofing. Double glazing (two panes with an inert gas fill) and triple glazing (three panes) make insulation better, which is important for passive-house standards or places with harsh climates.

With heat-bent glass technology, flat sheets can be curved to fit frame angles. This gets rid of the optical distortion and seal gaps that happen when flat glass is installed in arched spaces. This ability, along with the accuracy of Aluminum Arch Window curvature, makes the material combination the best choice for high-specification fenestration.

Disclaimer: Performance characteristics cited reflect typical specifications; actual results depend on project-specific configurations and should be verified against certified test reports and engineering calculations.

How to Maximize the Value of Aluminum Arch Windows in Your Projects

Selecting a Qualified Manufacturing Partner

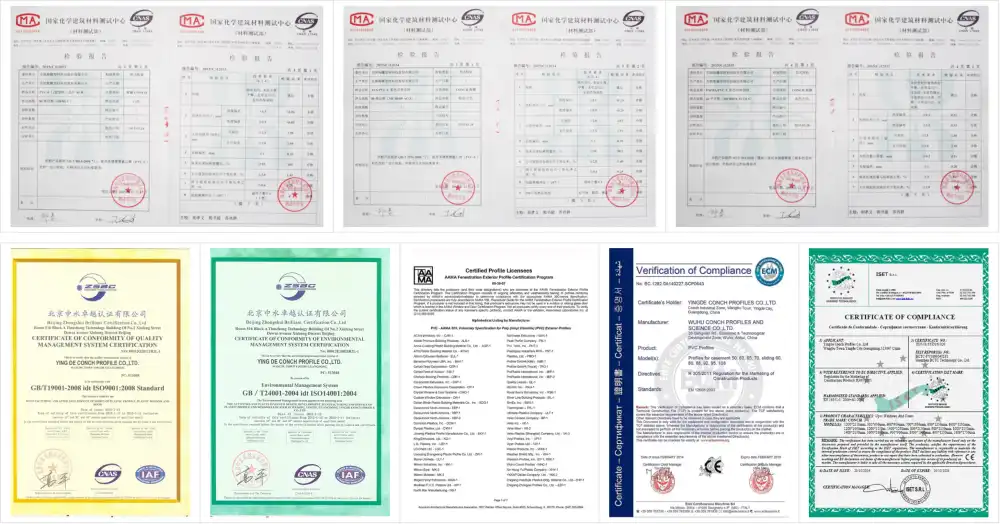

When custom tools and tight tolerances are what make the difference, reputation and track record matter. Certifications like ISO quality management, CE safety marking, and AAMA structure standards show that the process is being followed and are backed up by a third party. When you work directly with a factory, you can see how things are made, where the materials come from (for example, when you work with a reputable metal maker like CONCH), and where quality control checks are done.

To get an idea of how well the fabrication works, ask for samples or case studies from similar projects, like restoring historic buildings or making custom villas with complicated shapes, and specifically request examples that feature Aluminum Arch Window systems to see how they perform in real-world conditions. Check how responsive the provider is to communication: can they quickly read architectural plans and come up with technical solutions for tricky details like non-standard glazing or integrating with existing masonry?

Ensuring Proper Installation

If the installation doesn't follow the instructions, even Aluminum Arch Windows that were made with great care will not work as well. Hire contractors who have experience with curved fenestration. Knowing the right way to shimming, apply sealant, and adjust hardware will help avoid problems like frame twisting or air leaks. Early site studies make sure that the opening sizes match the shop plans. This keeps the project on schedule and saves money by avoiding delays caused by mistakes during the fit-up.

Installers can follow illustrated assembly manuals and instructional videos, which are often provided by reputable manufacturers, to learn how to put together knock-down assemblies, check the alignment, and follow torque specifications for fasteners. These tools fill in gaps in knowledge, especially when local workers haven't worked with curved Aluminum Arch Window systems before.

Maintenance Best Practices

Set up a routine for inspections every six months: clear the tracks of debris, use dry silicone spray to lubricate the rollers, and check the weatherstripping for compression set. In places with a lot of dust or near the coast, increase the frequency to every three months. Finding small problems early on, like worn seals or loose hardware, stops them from getting worse and leading to structural problems or water entry.

Write down what you do for upkeep and keep the records for guarantee claims and future use. Manufacturers that give technical help hotlines or on-site troubleshooting services add value because they clear up questions without letting customers try things out and see what happens, which can be dangerous.

Conclusion

Aluminum Arch Windows offer a great mix of structural strength, energy efficiency, and design flexibility that meets the specific needs of unique building. The material is better than wood, uPVC, and steel because it is naturally flexible, doesn't rust, and doesn't need much upkeep. This is especially true for projects with complicated curves, tight standards, and long-term durability goals. Logistics costs can be cut while installation quality is maintained with knock-down packing and modular assembly. This is a huge benefit for design teams that have to manage budgets for many small-batch projects. Curved fenestration investments will pay off in the long run in terms of both looks and functionality if you choose a manufacturing partner with a track record of success, full certifications, and strong support after delivery.

FAQ

How do aluminum arch windows enhance energy efficiency?

Using thermal break technology, low-conductivity polyamide barriers are put inside Aluminum Arch Window profiles to stop heat from moving between the inside and outside faces. When you add double or triple IGUs that are filled with argon gas and covered in Low-E films, the unit gets U-values that are on par with high-performance wall systems. As a result, less heating and cooling is needed, which lowers costs and helps green building certifications like LEED and BREEAM.

What customization options are available for curved aluminum frames?

Different options are available for Aluminum Arch Window profile width (1.4mm to 2.0mm), finish type (powder coat or PVDF in custom RAL colors, wood-grain transfers), glass type (tempered, laminated, IGU configurations), and operational hardware (fixed, casement, tilt-turn). All of these can be changed to fit the needs of the project. CNC bending copies the radii given by the architect for arches, ellipses, polygons, or completely custom shapes. Knock-down packaging forms make it possible to ship parts of different sizes, which saves money on freight costs without lowering the quality of the final assembly.

What warranties and support accompany quality aluminum arch windows?

Aluminum Arch Windows from reputable companies come with guarantees that cover flaws in the materials, the finish, and the hardware's ability to work. Support after delivery includes technical parameter sheets with information on load ratings and thermal performance, installation videos that show how to put the parts together, and the ability to ask questions of engineering teams in the field. These rules lower the risk of procurement and ensure clients that their investments will be safe in the long run.

Partner with Haolv Building Materials for Precision Curved Aluminum Solutions

With 19 years of experience, Haolv Building Materials has been making custom Aluminum Arch Window systems for design studios, restoration contractors, and small-batch installers. Our 6063-T5 alloy profiles are CNC-machined with arc tolerances of less than 2 mm. They are combined with heat-bent glass and multi-layer EPDM sealing to provide airtightness up to Class 4 and water resistance over 700Pa. Every unit is certified by ISO, CE, and AAMA, and our partnership with CONCH guarantees that the quality of the alloy will always be the same.

We can take small orders (five to twenty units per project), and our tooling cost breakdowns are clear. Our volume price is also very affordable. Shipping costs are cut by about 30% with knock-down packing, and our 25- to 30-day production cycle fits with phased building schedules. Each shipment comes with technical parameter sheets, installation videos, and full assembly instructions to make sure that your teams can do a factory-level job on-site.

Get in touch with us at kristin@haolvwindows.com to talk about your next curved Aluminum Arch Window project. As a company that only makes Aluminum Arch Windows, we offer free technical consultations, custom solution designs, and sample shipments (freight charges apply) to help you see what we can do. You can look at our whole product line at haolvbuilding.com and learn how precise engineering, efficient shipping, and quick customer service can help you realize your design goals.

References

1. Aluminum Association, "Aluminum Design Manual: Specification for Aluminum Structures," 2020 Edition.

2. American Architectural Manufacturers Association, "AAMA 101: Voluntary Performance Specification for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors."

3. International Organization for Standardization, "ISO 9227: Corrosion Tests in Artificial Atmospheres — Salt Spray Tests."

4. European Committee for Standardization, "EN 14351-1: Windows and Doors — Product Standard, Performance Characteristics."

5. National Fenestration Rating Council, "Technical Document 100: Procedure for Determining Fenestration Product U-factors."

6. Building Research Establishment, "BRE Digest 469: Specifying Windows and Doors by Performance."
