How to Choose Non Thermal Break Sliding Windows for Mild Climate Projects

Choosing the right Non Thermal Break Sliding Windows comes down to matching cost against the climate and the openings you are actually filling. Non Thermal Break Sliding Windows use a plain 6063-T5 aluminium profile with no polyamide barrier, which removes the most expensive component of the frame and puts them at the entry end of the sliding window price range, but the performance you actually deliver still depends on four variables: the number of tracks, the profile wall thickness, the glazing specification, and the sealing system. For trade buyers supplying mild-climate residential, rental and light commercial projects, knowing where those four work together, and where they stop working, is what keeps a budget order profitable instead of turning it into a service call.

Understanding Non Thermal Break Sliding Windows: Key Features and Benefits

What Does Non Thermal Break Mean in a Sliding Window?

Aluminium conducts heat extremely quickly, in the range of 160 to 200 W/(m·K), so a plain aluminium frame acts as a thermal bridge between the two faces of a wall. A thermal break window interrupts that path with a glass-fibre reinforced polyamide strip, usually PA66 GF25, that conducts heat at roughly 0.3 W/(m·K). A non thermal break window simply omits that strip. The frame section therefore stays around 5.5 to 7.0 W/m²K instead of the 2.0 to 2.7 W/m²K a thermal break aluminium window reaches with double glazing, and because the frame surface stays colder, condensation risk is higher in heating-dominated climates.

What you get in exchange is lower cost and simpler production. The frame is extruded from 6063-T5 aluminium alloy with a profile wall thickness of 1.2 mm to 1.4 mm, and the standard configuration is a three-track sliding system with three independent stainless steel rails. Hardware includes a crescent lock, stainless steel rollers and an anti-derailment clip that stops a sash lifting off the track in strong wind. Surface options cover powder coating, anodising, wood grain and custom RAL colours.

Why Choose a Three Track Sliding System?

Three tracks give you a dedicated path for the insect screen plus two independent window sashes. That is the practical difference from a two-track system, where a permanently installed screen would block one sash from sliding. For a buyer supplying markets where insect protection is a household expectation, that single design choice often decides which product the customer orders.

Sliding operation also needs no swing clearance, so furniture can sit right against the window, and the assembly suits balconies, patios, narrow spaces, garages and low-rise residential work. With 5+12A+5 double glazing the sound reduction is approximately 25 to 30 dB. Wind resistance is rated grade 4 to 5, which covers normal wind exposure but not cyclone or storm-surge zones, and that limit is worth quoting honestly at the enquiry stage rather than discovering it after the container lands.

Bulk Procurement Considerations for Trade Buyers

Volume planning starts with the minimum order. A supplier who accepts a starter order of 10 to 20 units lets you test specification, installation practice and market response without locking working capital into a full container. From there, capacity and lead time decide how fast you can scale. With component stock on hand and an integrated supply chain, standard delivery sits in the 25 to 30 day range from order confirmation.

Packing drives landed cost as much as unit price does. Knock-down configurations, where frame sections, sash assemblies and glass ship as separate modules, use 40 to 50 percent less container space than fully assembled units. The trade-off is that someone on site has to assemble them correctly, so the quality of the supplier documentation becomes part of the product you are selling.

Climate Considerations: How Weather Conditions Affect Non Thermal Break Sliding Window Performance

Cold Climate Requirements and Thermal Engineering

Without a polyamide barrier the frame stays a thermal bridge, so in markets that sit below freezing for months the interior face of the frame runs cold and condenses whenever indoor humidity is normal for a heated home. That is a design limit, not an installation fault. If your customer is specifying for a heating-dominated climate, the honest answer is a thermal break system, and quoting a non-thermal-break frame into that market is where warranty claims come from.

Where a mild-climate project only occasionally sees cold nights, the measures that help most are a double-glazed unit with a warm-edge spacer, which cuts the heat path at the edge of the glass, plus correct flashing and low-expansion foam around the rough opening so no additional bridging is introduced at the reveal. Those measures improve the assembly, but they do not change the fact that the frame section remains the weakest thermal link.

Hot and Humid Climate Adaptations

Hot and humid markets are where this product makes the most commercial sense. When the building is air conditioned, a frame that stays warmer than a thermally broken one is actually an advantage, because condensation forms on cold surfaces, not warm ones, so the room-side condensation problem largely disappears. Insulation is not the priority in that climate; solar control and water management are.

Water management is handled by the stepped drainage design and brush weather strips, which shed normal rainfall before it reaches the interior. Specifying stainless steel rollers is worth the small premium in humid air, and colour-stable finishes matter too: powder coating, anodising or PVDF all resist chalking under sustained UV, with PVDF the most colour-stable under extreme exposure.

Coastal and High-Wind Zone Specifications

Aluminium is inherently corrosion resistant and stainless steel rollers are already standard, so the coastal specification is mostly about hardware and fasteners rather than the profile itself. Marine-grade stainless steel or powder-coated aluminium alloy hardware, and neutral-cure silicone in the glazing pockets, are what keep the window operating after several years of salt exposure.

Wind load is the harder limit. Grade 4 to 5 wind resistance suits normal exposure and the anti-derailment clip adds real security against panels lifting, but a coastal or high-wind site with a tight permitted deflection band should be quoted with a higher-classified system. The higher the pressure class, the more the frame, gasket and drainage detail must be engineered as one system rather than assembled from catalogue parts.

Comparing Non Thermal Break Sliding Windows to Other Systems

Performance Analysis Against Thermal Break and Casement Options

A thermal break system inserts the polyamide strip and typically brings a double-glazed assembly into the 2.0 to 2.7 W/m²K whole-window range, which is a different class of performance. It costs more, and for a mild-climate project where the heating season is short, that premium buys performance the customer will never notice on an energy bill. The comparison is not which product is better in the abstract; it is whether the climate justifies the delta.

The comparison against casement is about sealing principle rather than material. A casement window seals by compression: the multi-point locking gear pulls the sash against the frame and compresses the gaskets, which is inherently tighter than the sliding contact a slider uses. Sliding windows therefore trade some airtightness and watertightness for the space-saving, uninterrupted glazing line that buyers in balcony and patio applications want. Where a specification demands a high air permeability class, casement is the more defensible answer.

Glazing Options and Energy Performance

Glass specification moves the final performance number more than most buyers expect, but the frame sets the ceiling. The standard options are 5 mm single pane, 5+12A+5 double glazing, or laminated glass. Double glazing is the specification to quote by default in any market with a real winter or a real noise problem, because it delivers both the measurable sound reduction, roughly 25 to 30 dB, and a modest thermal improvement.

Within that ceiling, a low-E coating and an argon fill still help, and a warm-edge spacer reduces heat flow at the edge of the unit, which is otherwise the coldest part of the assembly. Laminated glass is the alternative direction: it does not add insulation, it adds impact safety, UV protection and sound reduction, and it is often the deciding factor on projects near roads, rail lines or in areas with a security requirement.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification and Compliance Standards

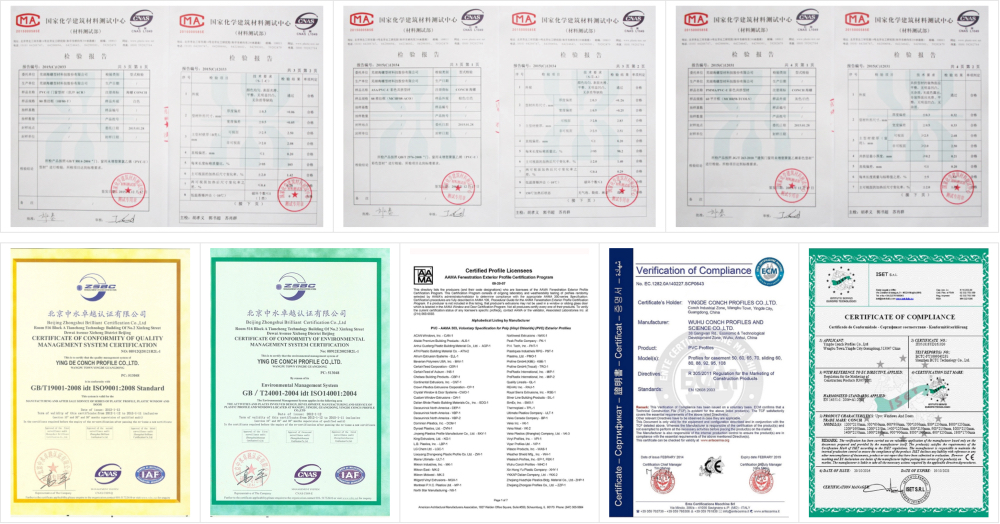

Certification paperwork is what allows you to defend a specification to a client. ISO quality management certification shows production is controlled, CE marking demonstrates conformity with European requirements, and AAMA standards define performance criteria for air infiltration, water penetration and structural loading in North American projects. For the claims that matter on a sliding window, ask for the U-value of the whole assembly rather than the frame alone, plus the air permeability, watertightness and wind load classifications. EN 14351-1 is the product standard that ties those together, while EN 12207, EN 12208 and EN 12210 give the three classifications a specifier will ask you to quote.

Customization Capabilities and Order Flexibility

Standard sizes rarely fit every opening, and on renovation projects the existing reveals vary from floor to floor. Manufacturers who can adjust width and height within normal production tolerances reduce on-site modification, and the track layout and sash arrangement can be adjusted to suit the opening. Colour matching across a project keeps the elevation consistent. With full OEM and ODM support, the practical question for a buyer is how far the factory will go on drawings, because that decides whether a non-standard order is a routine job or a negotiation.

Logistics and Installation Support

Container planning affects cost per unit more than most buyers expect. Knock-down packing, where frames, sashes and glass ship in separate modules, cuts the volume required and lowers freight per unit, and it requires assembly documentation good enough for another crew to follow. Verify that documentation before you order. Technical parameter sheets, assembly instructions and installation video tools shorten installer training and reduce the field errors that turn into warranty claims.

On the customs side, an experienced exporter will provide commercial invoices, packing lists and certificates of origin formatted for the destination country, plus correct Harmonised System code classification so the shipment is not penalised for misclassification. It is also worth confirming how the load will be braced for the container type you are booking, because mixed loads of frames and separate glass packs need a packing plan that protects both.

Maintenance and Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

A non thermal break sliding window needs very little attention, but the little it needs is limited to the moving parts. Clean the tracks every six months to remove dust and debris, apply a few drops of lubricating oil to the rollers annually, and wash the frames with a mild, pH-neutral detergent solution that is safe for both the coating and the glass. Avoid abrasive cleaners and solvents, which attack the finish and the brush weather strips.

Early Warning Signs and Component Replacement

Brush weather strips are the first consumable to go, typically every three to five years, and replacing a worn strip is a low-cost way to recover dust and water resistance on an otherwise sound window. Rollers that start to rumble or that need force to move are telling you the wheel or the track has worn, and dealing with it early prevents the sash from jumping the rail.

Blocked drainage holes are easy to miss and cause water to back up into the frame, so they should be cleared as part of routine cleaning. Fogging between the panes means the desiccant is saturated or the edge seal has failed, allowing moisture into the cavity, and the sealed unit has to be replaced rather than repaired. Chalking or colour loss on the finish indicates the coating is degrading and should be assessed before the aluminium beneath is exposed.

Performance Enhancement Options

Because the frame is the thermal limit, the upgrades worth offering are the ones that improve sealing or safety rather than insulation. Replacing the brush strips and clearing the drainage restores the original weather performance at almost no cost, and upgrading to laminated glass adds impact safety, UV protection and sound reduction without changing the frame. Both extend service life at a fraction of replacement cost, and both are easy retrofit conversations with an existing customer.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Choosing the right Non Thermal Break Sliding Windows comes down to balancing climate, market expectation and cost. A three-track system, adequate profile wall thickness and an appropriate glazing specification deliver dependable weather performance in mild climates while keeping the unit price at the entry end of the sliding range, which is exactly what budget housing, rental and light commercial projects need. What separates a dependable supplier from a commodity vendor is verifiable certification, real customisation capability, and logistics support. Buyers who check those three things, and who keep their supplier technical documentation on file, get a product that performs where it is specified and does not generate callbacks where it is not.

FAQ

Q1: Where are non thermal break sliding windows the right choice?

A: Mild climates, garages, warehouses, enclosed balconies and low-rise residential work where insulation is not a priority. They are the cost-effective option when the heating or cooling load is low. For heating-dominated climates or projects with a strict energy target, specify a thermal break system instead, because the frame section of a non-thermal-break window remains a thermal bridge.

Q2: What is the difference between a three track and a two track system?

A: A three-track system provides a dedicated track for a permanently installed insect screen plus two independent sashes, so you get ventilation and insect protection at the same time. A two-track system uses only two panels with a simpler structure, which reduces cost but cannot support a permanent screen without blocking one sash.

Q3: What sound reduction and wind resistance do they offer?

A: With 5+12A+5 double glazing, sound reduction is approximately 25 to 30 dB. Wind resistance is rated grade 4 to 5, which suits normal exposure but not cyclone or storm-surge zones. Sliding windows also seal less tightly than casement designs by nature, because they rely on sliding contact rather than compression.

Q4: What are typical lead times and minimum order quantities?

A: With component stock on hand and integrated supply chain management, standard delivery is usually 25 to 30 days from order confirmation. Initial orders of 10 to 20 units are accepted so that a new market can be tested without committing to a full container.

Partner with Haolv Building Materials for Non Thermal Break Sliding Windows

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable non thermal break sliding window supplier. Our ISO, CE and AAMA certified factory in Hunan Province works with CONCH to keep raw material quality consistent, and our 25 to 30 day delivery schedule is supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team supports your installers with technical parameter sheets, and the three-track design with an anti-derailment clip covers a wide range of residential and light commercial openings. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.

References

1. European Committee for Standardization. (2016). EN 14351-1: Windows and doors — Product standard, performance characteristics.
2. European Committee for Standardization. (2000). EN 12207: Windows and doors — Air permeability — Classification.
3. European Committee for Standardization. (2003). EN 12208: Windows and doors — Watertightness — Classification.
4. European Committee for Standardization. (2003). EN 12210: Windows and doors — Resistance to wind load — Classification.
5. American Architectural Manufacturers Association. (2022). AAMA 101: Voluntary Standard for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors.
6. International Organization for Standardization. (2015). ISO 9001: Quality management systems — Requirements.
