How to Choose Thermal Break Aluminum Sliding Doors for Energy Efficient Patios

hoosing the right Thermal Break Aluminum Sliding Doors comes down to matching structural capacity with the climate and the size of the opening. Thermal Break Aluminum Sliding Doors insert a glass-fibre reinforced polyamide strip between the interior and exterior aluminium profiles so the frame stops acting as a thermal bridge, and combine it with a three-track mechanism that carries large glass panels, but the performance you actually deliver depends on four variables: profile depth, the thermal break material, the glazing specification, and the sealing and locking system. For trade buyers sourcing for patios, balconies and commercial storefronts, understanding how those four interact is what separates a repeatable order from a warranty claim.

Understanding Thermal Break Aluminum Sliding Doors: Key Features and Benefits

What Does the Thermal Break Do in a Sliding Door Frame?

Aluminium conducts heat extremely quickly, in the range of 160 to 200 W/(m·K), which is why a plain aluminium frame acts as a thermal bridge between the two faces of a wall. A glass-fibre reinforced polyamide strip, typically PA66 GF25, is set between the interior and exterior profile sections and conducts heat at roughly 0.3 W/(m·K), several hundred times less than the aluminium it separates. On this system the barrier reduces heat transfer by up to 40 percent compared with a standard aluminium profile, and because the interior surface of the frame stays closer to ambient temperature, condensation becomes negligible even in high humidity.

The frame is extruded from 6063-T5 aluminium alloy, with a profile depth adjustable from 85 mm to 120 mm depending on glass weight and span requirements. With double glazing the assembly reaches a U-value of 1.8 to 2.2 W/m²K, and the system accepts glass thicknesses from 5 mm to 28 mm in tempered, laminated or double-glazed configurations. Surface finish options are powder coating or a 25-micron anodised treatment, both of which resist the UV degradation that shortens the life of a cheaper coating.

Why a Three Track Sliding System for Large Openings?

A three-track configuration lets you run more panels across the same opening, which means a wider clear opening for a given wall length. That is the practical reason it appears on large patios and commercial storefronts, where the customer wants an uninterrupted view and the widest possible passage. The mechanism is carried by heavy-duty stainless steel or nylon tandem rollers, tested over more than a million cycles, which is what makes a large, heavy panel glide rather than grind.

Panel size is where this system has an advantage over most alternatives. Large glass panels become structurally viable without additional reinforcement because of the rigid profile design, and maximum panel widths reach 3000 mm depending on glass specification and hardware configuration. The trade-off is that hinge-free does not mean setting-free: a large panel needs a level track and correct packing under the threshold, and the technical guidance that comes with the order matters as much as the door itself.

Bulk Procurement Considerations for Trade Buyers

Volume planning starts with the minimum order. A supplier who accepts a starter order of 10 to 20 units lets you test specification, installation practice and market response without locking working capital into a full container. From there, capacity and lead time decide how fast you can scale. With component stock on hand and an integrated supply chain, standard delivery sits in the 25 to 30 day range from order confirmation.

Packing and loading drive landed cost as much as the unit price does. A sliding door is a tall, heavy, glass-carrying unit, so container planning matters more here than on a window order: panel height determines how the load is stacked and braced, and glass must be packed in a way that protects it from the frame during transit. Ask how the shipment will be braced for the specific container type you are booking before you confirm the order, because a mixed load of frames and separate glass packs needs a packing plan that protects both.

Climate Considerations: How Weather Conditions Affect Thermal Break Aluminum Sliding Door Performance

Cold Climate Requirements and Thermal Engineering

In markets that stay below freezing for months, the design objective is keeping the interior frame surface above the dew point, and the polyamide barrier does most of that work by stopping the metal path through the frame. A double-glazed unit with a 16 to 20 mm cavity filled with argon or krypton delivers the insulation value, and a warm-edge spacer cuts the heat path at the edge of the glass, which is otherwise the coldest part of the assembly. The result on this system is a U-value in the 1.8 to 2.2 W/m²K range with double glazing.

Installation detailing decides whether test data survives on site, and a sliding door has a longer seal line than a window, so the threshold and the vertical jambs carry more risk. Flashing and low-expansion foam around the rough opening prevent additional bridging at the reveal, and a thermally broken low-profile sill prevents ice dams from forming across the opening on accessible thresholds. Weather-stripping also has to stay flexible below zero, which is where EPDM gaskets outperform rigid vinyl.

Hot and Humid Climate Adaptations

In hot and humid markets the thermal break still earns its place, because it keeps the interior surface of the frame warmer than a plain aluminium profile would, which reduces condensation on the room side of an air-conditioned building. Solar control becomes the priority instead of pure insulation: a low solar heat gain coefficient glass reduces the cooling load, and the frame finish has to resist chalking and colour loss under sustained UV, which is what the powder coating and anodised options are for.

Sealing is handled by brush weather strips along the vertical edges as the primary barrier, with an optional EPDM gasket upgrade for exposed locations. The multi-point seal configuration achieves air infiltration rates below 0.3 m³/h·m² at 50 Pa pressure, which is a tight number for a sliding system and the main reason this door suits air-conditioned interiors rather than only sheltered openings. Stainless steel hardware avoids the rust that attacks standard steel fasteners within months in humid air.

Coastal and High-Wind Zone Specifications

Coastal installations need the finish specified as carefully as the glass. Marine-grade anodising meeting ISO 9227 salt-spray testing requirements is the finish to ask for, because salt air attacks both the coating and the hardware over time, and the glazing pockets should use neutral-cure silicone sealant, which resists salt exposure longer than standard sealants. Corrosion-resistant finishes are not optional near the coast; they determine whether the door still closes properly after five years.

Wind load is the harder limit for a large panel. A wide glass door presents more area to the wind than a window of the same height, so a coastal or high-wind site with a tight permitted deflection band demands more reinforcement and heavier hardware than a sheltered residential installation. The anti-lift design of the sliding lock, which prevents a panel being removed from the outside, is also a security rather than a weather feature, and it is worth pointing out to buyers in markets where that risk is real.

Comparing Thermal Break Aluminum Sliding Doors to Other Door Systems

Performance Analysis Against Non Thermal Break and Folding Doors

Against a non thermal break slider, the difference is the barrier itself: the polyamide strip reduces heat transfer by up to 40 percent compared with a standard aluminium profile, which is the difference between a door that can be specified into a heated or air-conditioned space and one that cannot. The non-thermal-break version costs less and remains a reasonable choice for a sheltered opening where the space on either side is unconditioned, but it is not a substitute where the energy target is real.

Against a folding system, the comparison is about joints rather than material. A folding door opens the whole elevation but adds a hinge line between every pair of panels, and every joint is a potential leak path, whereas a sliding door keeps its panels in a single plane with far fewer joints engaged at once. That is why sliding is usually the more airtight answer for a climate-controlled space, while folding wins where the requirement is maximum clear opening rather than minimum air leakage.

Glazing Options and Energy Performance

The system accepts glass from 5 mm to 28 mm in tempered, laminated or double-glazed form, and the specification you quote drives the final number. With 6 mm + 9A + 6 mm double glazing, soundproofing reaches STC ratings of 30 to 35 dB, and the thermal break cavity itself contributes to acoustic dampening, which is why urban residential projects benefit from reduced street noise penetration as well as from the insulation.

Where noise is the dominant issue, asymmetric double glazing such as 6 mm + 12A + 8 mm outperforms a symmetric unit, because the two panes of different thickness control different frequency bands and avoid the coincidence dip that lets a specific frequency through. Where security or impact resistance is the driver, laminated glass is the answer instead, and it also adds UV protection. Larger panels need thicker glass or a laminated build for structural reasons, not just for performance.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification and Compliance Standards

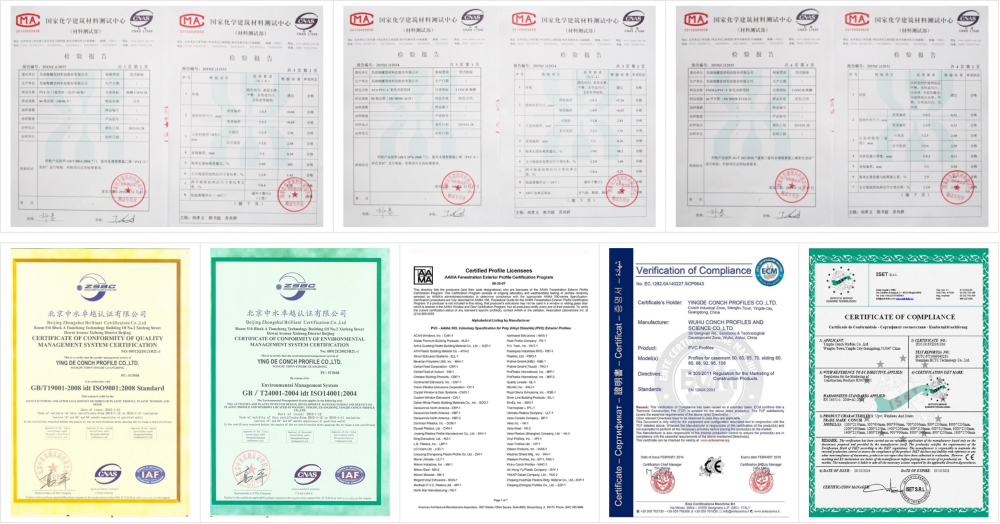

Certification paperwork is what allows you to defend a specification to a client. ISO quality management certification shows production is controlled, CE marking demonstrates conformity with European requirements, and AAMA standards define performance criteria for air infiltration, water penetration and structural loading in North American projects. For a thermal break system the claim that matters most is the whole-assembly U-value from an accredited laboratory, and the air permeability classification. EN 14351-1 is the product standard for the finished door, EN 14024 covers the mechanical performance of metal profiles with a thermal barrier, while EN 12207 and EN 12210 give the air permeability and wind load classifications a specifier will ask you to quote. Corrosion resistance claims should be backed by salt-spray testing to ISO 9227.

Customization Capabilities and Order Flexibility

Standard sizes rarely fit every opening, and doorway dimensions vary more than window dimensions because they are set by circulation requirements rather than a repeating module. Profile depth adjusts from 85 mm to 120 mm based on glass weight and span, panels can be sized up to a maximum width of 3000 mm, and colour options cover standard RAL powder coating or custom matching, with anodised finishes offering a metallic aesthetic and higher scratch resistance. With OEM and ODM support, the practical question for a buyer is how far the factory will go on drawings and performance targets, because that decides whether a large custom opening is a routine job or a negotiation.

Logistics and Installation Support

Track alignment remains the single most important installation detail on a sliding door, and it is not a factory defect if it is wrong on site. A large panel needs a level track and correct packing under the threshold so the rollers carry the load evenly; a door that drags at one end after a year usually traces back to that step rather than to the hardware. Suppliers who provide installation guidance and system optimisation recommendations shorten installer training and reduce the field errors that turn into warranty claims.

The other procurement lever is hardware life. Heavy-duty tandem rollers are rated for a hardware lifespan of 10 to 15 years, and the annual inspection and lubrication routine is what gets you there. Confirm the spare parts availability for rollers and locking gear before you commit, because how quickly a fault gets resolved depends on parts availability, which is why a supplier carrying full spare parts inventory is worth more than a slightly lower unit price.

Maintenance and Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

A thermal break sliding door needs very little attention, but the little it needs is climate specific. In dusty or coastal locations, wash the frames every three months with a mild detergent solution and rinse, using pH-neutral products safe for both the coating and the glazing, and clean the track at the same time because debris in the rail is what wears the rollers. Once a year, inspect and lubricate the roller assemblies, the locking points and the track, and check the brush strips and gaskets for loss of compression before air leakage shows up on an energy bill.

Early Warning Signs and Component Replacement

Hardware lifespan on this system is rated at 10 to 15 years, so rollers and locking gear are the components to watch after the first several years of service. A panel that has become hard to move, a lock that needs extra force, or a visible drop at the leading edge all point to roller or track wear rather than to the frame, and dealing with it early prevents both a security weakness and premature replacement of the whole sash.

Fogging between the panes means the desiccant is saturated or the edge seal has failed, allowing moisture into the cavity, and the sealed unit has to be replaced rather than repaired. Surface chalking or colour loss indicates the coating is degrading and should be assessed before the aluminium beneath is exposed. On a coastal installation, white corrosion products around fasteners or in the drainage slots are the earliest sign that the finish is losing the fight against salt, and the response is cleaning plus a protective treatment rather than waiting for the hardware to seize.

Performance Enhancement Options

Because the frame is already engineered for thermal performance, the upgrades worth offering improve sealing or glazing rather than the barrier. Adding the EPDM gasket upgrade on an exposed elevation improves water resistance without changing the frame, replacing a worn gasket set recovers airtightness on an otherwise sound door, and upgrading to a higher-performance glazed unit is possible on many systems without changing the profiles. All three extend service life at a fraction of replacement cost.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Choosing the right Thermal Break Aluminum Sliding Doors comes down to balancing climate, market expectation and cost. A polyamide barrier in the 85 to 120 mm profile, a double-glazed unit with a warm-edge spacer and a well-executed multi-point seal deliver a U-value in the 1.8 to 2.2 W/m²K range while keeping the opening wide enough for the patio or storefront the customer actually has. What separates a dependable supplier from a commodity vendor is verifiable certification, real customisation capability, and logistics support. Buyers who check those three things, and who keep their supplier technical documentation on file, give their installers a better chance of delivering the performance the data sheet promises.

FAQ

Q1: How much does the thermal break reduce heat transfer?

A: The polyamide strip blocks the thermal bridge between the interior and exterior aluminium, reducing heat transfer by up to 40 percent compared with a standard aluminium profile. Because the interior frame surface stays closer to ambient temperature, condensation also becomes negligible even in high humidity, and the load on heating and cooling systems is reduced.

Q2: What U-value can the door achieve?

A: With double glazing, the assembly reaches a U-value of 1.8 to 2.2 W/m²K, and the exact figure depends on profile depth, the width of the polyamide barrier, the glass specification and the spacer type. Always ask for the whole-assembly U-value rather than the frame value alone, and for the test report behind it.

Q3: What are the maximum panel sizes and glass thicknesses?

A: The system accepts glass from 5 mm to 28 mm in tempered, laminated or double-glazed form, and maximum panel widths reach 3000 mm depending on glass specification and hardware configuration. Profile depth adjusts from 85 mm to 120 mm to suit glass weight and span, so a wide opening can be engineered rather than compromised.

Q4: What are typical lead times and minimum order quantities?

A: With component stock on hand and integrated supply chain management, standard delivery is usually 25 to 30 days from order confirmation. Initial orders of 10 to 20 units are accepted so that a new market can be tested without committing to a full container.

Partner with Haolv Building Materials for Thermal Break Aluminum Sliding Doors

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable thermal break aluminum sliding door supplier. Our ISO, CE and AAMA certified factory in Hunan Province works with CONCH to keep raw material quality consistent, and our 25 to 30 day delivery schedule is supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team supports your installers with track setting guidance, installation video tools and system optimisation recommendations, while the adjustable 85 to 120 mm profile depth and glazing from 5 mm to 28 mm cover a wide range of climates and panel sizes. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.
