How to measure for aluminum flush window replacement

The key to replacing aluminum flush windows successfully is accurate measuring. To make sure a perfect fit, you need to measure for these high-performance window systems taking into account the current frame opening, structural flaws, and thermal expansion gaps. Aluminum flush windows have a clean, level sash that goes perfectly with the outer frame. This means that there are no protruding edges, and the windows look modern, making them perfect for business buildings, home renovations, and heritage retrofits. When you measure things correctly, you waste less material, avoid expensive rework, and speed up project timelines. All of these things have a direct effect on your bottom line and your clients' satisfaction.

Understanding Aluminum Flush Windows and Replacement Needs

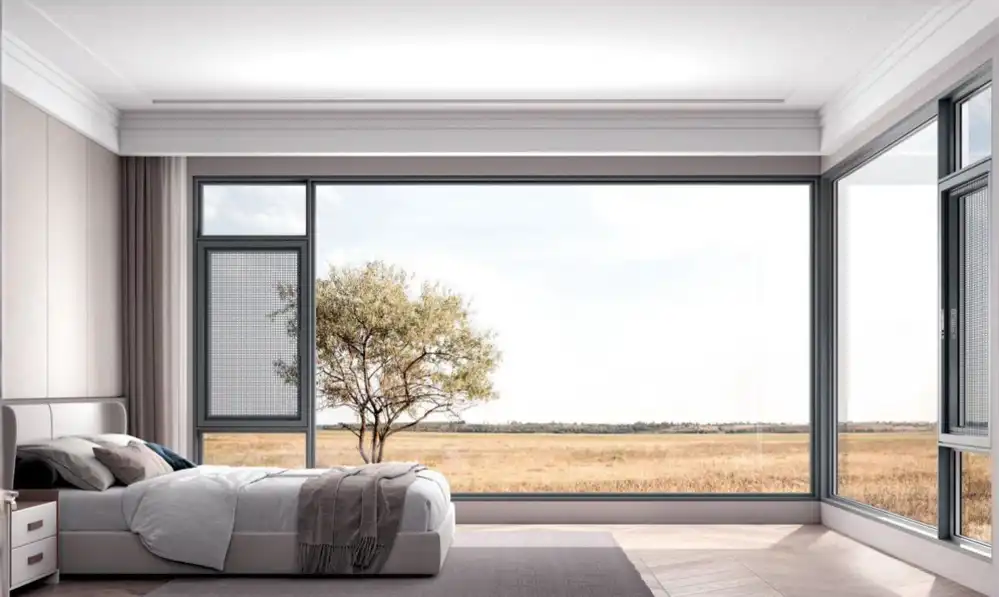

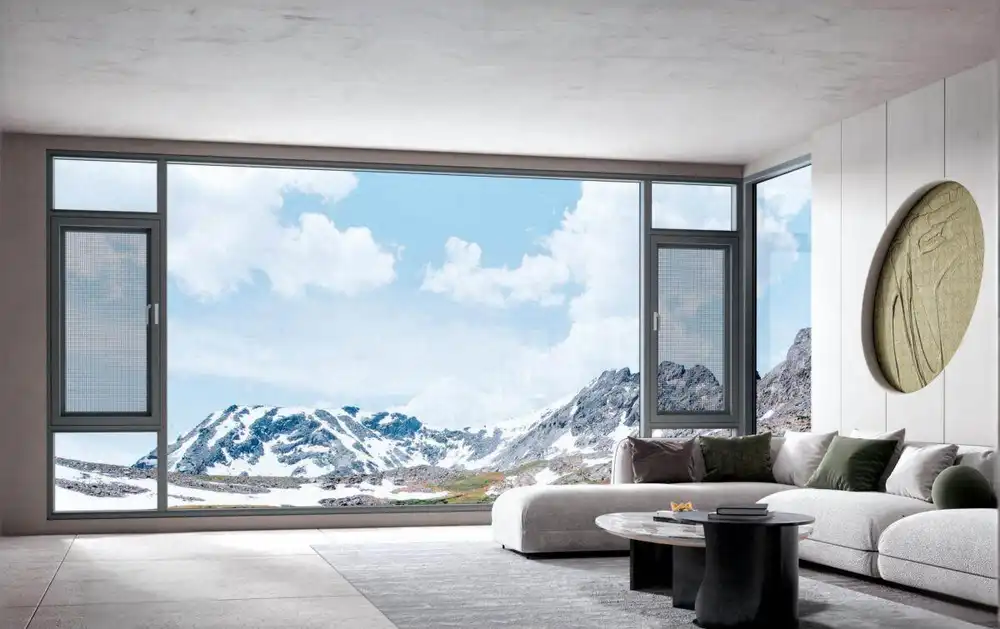

Aluminum flush windows have a flat outer shape, which means that when the window is closed, the sash sits flush with the frame. This style makes the wall line continuous, which makes them very popular for modern building projects and historic areas that want to copy the look of traditional steel or wood buildings. In business projects, these windows are used to make big building envelopes look the same. This is especially important in high-end apartment complexes and coastal structures that are exposed to a lot of weather.

Accurate measurements must be made. Even a small mistake of 5mm can make weatherproofing less effective, letting air and water in and lowering the building's heat performance. Mismeasurements can slow down installation plans, raise labor costs, and make it harder to work with suppliers on projects that involve multi-story buildings or large orders. In addition to being accurate in terms of size, measurements must also be in line with US building codes, such as the NFRC energy efficiency standards and the AAMA structural performance criteria, to make sure that the rules are followed and that the asset retains its value over time.

Why Flush Design Demands Precision

When compared to stepped casement profiles, flush windows don't allow for much error. To keep the signature seamless look, the sash has to fit perfectly inside the frame. Any change to the flush plane can stop it from closing properly, which can affect the multi-point locking devices and the compression of the EPDM seal. The 6063-T5 aluminum alloy frame, which is usually between 1.4mm and 2.0mm thick, relies on even load distribution, which can only be done by measuring openings correctly and leaving enough space for fitting.

Material Considerations and Structural Load

When planning replacements, you should check how much weight the existing walls can hold. Even though aluminum windows are lighter than wood ones, they need to be securely anchored to keep them from blowing away, especially in coastal areas. For double-glazed designs with tempered glass that is 5+12A+5mm thick, the frame sizes need to be able to fit the glass thickness, thermal break assemblies (which are usually PA66 polyamide strips), and sealant layers without affecting the flush look.

Step-by-Step Process to Measure Aluminum Flush Windows for Replacement

Get the right measuring tools ready before you start: a spirit level, a corner square, a high-precision digital laser measure (which is accurate to ±1mm), and a standard steel tape measure for backup. When working on high places, safety rules are very important. Make sure you use the right fall protection and scaffolding, especially for commercial projects with multiple floors.

To account for differences in older buildings, the measuring process involves taking readings in three important dimensions at different locations. First, measure the rough opening width, which is the distance between the supports of the structure. Read the beginning from the top, the middle, and the bottom. Write down the smallest measurement. This way, the new window will fit even if the hole is a little tapered. Aluminum flush windows require the same careful approach, so measure along the left, center, and right sides from the sill to the head jamb to get the height again.

Measuring Frame Depth and Reveal

The window system series (60, 70, or 80 series) and thermal break positioning are affected by frame depth, which is the distance from the outside face to the inside wall surface. Make sure the tape measure or depth gauge stays straight on the wall as you extend it into the hole. The reveal, or the part of the frame that can be seen from the inside, affects the trim and finishing touches. To find the reveal, measure from the inside wall to the inside edge of the window.

Accounting for Installation Tolerances

Professional installers need about 10 to 15mm of space around the window frame's edges to allow for installation shims, expanding foam insulation, and thermal movement. Aluminum expands and contracts a lot in places where the temperature changes a lot. If there isn't enough space between the pieces, the frame could warp or the seal could fail. When talking to wholesalers, give them the rough opening measurements instead of the finished window size you want. This way, the maker can make the necessary deductions based on how their system is installed.

Documentation and Digital Communication

Take pictures of the current window from different angles, making sure to show any structural problems like cracked sills or lintels. Add these pictures to a sketch with all the measurements and orientations (inward or outward casement) shown. Digital tools, like CAD overlays or mobile apps made just for fenestration projects, make it easier to communicate clearly with manufacturers and lower the chance of misunderstanding. This is especially helpful when working with international suppliers across time zones.

Common Challenges in Measuring Aluminum Flush Windows and How to Avoid Them

Frames that are bent or broken cause big mistakes in measurements. Over time, holes can become misshapen due to water getting in, the structure settling, or bad installs in the past. Check the frame visually for bending or twisting, and use a straightedge to find any variations. If the differences are bigger than 5mm, you might need to fix them by shimming or strengthening the frame before you can order new units.

A common mistake made by procurement teams that aren't very experienced is to measure the existing window frame instead of the structural opening. For aluminum flush windows systems, you need to know the brick-to-brick or stud-to-stud distance because the new frame needs to attach directly to the building. Orders that are too small or too big will be sent if these reference points are not distinguished.

Differentiation from Other Window Types

When measuring, slide or tilt-and-turn windows are measured in a different way than flush methods. Track gaps are important for sliding units, while exact alignment of the sash and frame lines is needed for flush casements. If you want to replace non-flush windows with flush ones, you might need to change the opening or use adaptor frames to get the look you want without having to do a lot of masonry work.

Environmental and Insulation Layers

External insulation systems or rainscreen cladding are often used in modern building, which changes the actual wall thickness. Not just the structural wall, but also the depth from the final finish on the outside to the plasterboard on the inside. When you state the frame depth, keep in mind that the insulation layers will shrink during installation. When making changes to historic buildings, you should talk to the preservation authorities because adding insulation could change the frame profiles and installation methods that are allowed.

Comparing Aluminum Flush Windows Replacement Measurements with Other Window Types

Aluminum flush windows systems have thinner sightlines than uPVC systems because the material is stronger, which lets more glass fit into the same frame size. When switching from uPVC to aluminum, you may get an extra 10 to 15mm of glazing on each side, which lets more natural light in. But aluminum frames need thermal breaks to match the insulation performance of multi-chambered uPVC profiles. Make sure your measures take into account thermal break levels, which are usually between 24 and 34mm for high-performance systems.

Even though timber flush windows look the same, they need to be measured in different ways because of how the material behaves. Because wood expands when it gets wet, installation gaps need to be bigger. Because aluminum is dimensionally stable, it can be made with smaller gaps, which cuts down on drafts and makes buildings more energy efficient. When replacing wood with aluminum, existing openings may only need minor changes. However, make sure that the lintels and sills can handle the extra weight.

Single vs. Double Glazing Adjustments

Frames don't need to be as deep for single-glazed windows, which are becoming less common in the U.S. market. The overall thickness goes up by about 22mm with double glazing (5+12A+5mm), and it goes up even more with laminated or triple-glazed options. Make sure that your depth measurements allow for the chosen glass specification as well as the edge clearances needed for applying sealant and for heat to move. Low-E coatings and argon fills don't change the size of the material, but they do change the thermal estimates, which should be used to plan the insulating layer around the frame.

Energy Efficiency and Thermal Performance

Accurate measurements have a direct effect on U-values and how well energy is used. When measurements are off, gaps or compression of thermal breaks can happen. This weakens the insulation, letting more heat escape and possibly breaking building codes. When installed correctly, flush windows with PA66 thermal breaks and EPDM gaskets can achieve U-values as low as 1.1 W/m²K. This meets or exceeds NFRC standards and lowers business renters' long-term HVAC costs, which is a strong selling point when negotiating the purchase of goods.

Disclaimer: The exact performance factors rely on the quality of the installation and the results of official product tests. Always ask providers for test data from a third party to make sure they are meeting project requirements and local standards.

Best Practices for Procurement and Collaboration with Aluminum Flush Window Suppliers

Standardized measurement data makes buying things and making things easier. Give the suppliers a detailed schedule that shows the width, height, depth, and orientation of each opening, as well as any special needs, like acoustic glazing or better security hardware. Digital formats, like Excel spreadsheets or XML files that can be used with manufacturing ERP systems, cut down on mistakes made when entering data by hand and speed up the order processing process.

Specifications for custom work must be clear. Choose the colors of the powder coating (RAL codes), the finish of the anodizing, the brand of hardware (aluminum or stainless steel handles), and the screen you want. In your purchase orders, mention AAMA, NFRC, or local certifications for projects that need to follow certain rules. When there is clear paperwork, there is less need for back-and-forth clarifications. This cuts lead times from the usual 25–30 days to as little as three weeks for established supply agreements.

Optimizing Lead Times and Cost Efficiency

When you order in bulk for projects that need more than one unit, you can get discounts and priority production slots. Talk to your suppliers about knock-down (KD) shipping choices. Sending aluminum flush windows in unassembled parts cuts freight volume by up to 30%, which greatly lowers the cost of sending goods overseas. Local companies can help with on-site or regional production, which keeps quality high while lowering costs. During the procurement phase, ask for technical parameter sheets, installation videos, and assembly manuals to give your installation teams the information they need to do a perfect job.

Leveraging Supplier Expertise

Manufacturers with 18 years or more of experience in the field offer measurement consultation services. Share pictures of the site and rough measurements so that an expert can look them over. Many sellers find problems, like lintels that don't fit together or drainage holes that aren't big enough, before orders are finalized. This way of working together cuts down on redoing work and builds long-lasting relationships, which is especially helpful for developers and contractors who are in charge of projects that come up again and again.

Keep the lines of communication open about project deadlines. Suppliers with good inventory management can handle pressing orders, but it's best to give them advance notice so they can plan their schedules well. Talk to the supplier about payment terms that work with project milestones. This will help your cash flow and make sure the supplier will meet delivery dates.

Conclusion

Accurate measurements for replacing aluminum flush windows keep project budgets safe, make sure regulations are followed, and give modern building the level of aesthetic precision it needs. Procurement managers, engineers, and contractors can avoid costly mistakes and stick to installation schedules by learning about the specific needs of flush sash systems, such as structural tolerances and thermal break accommodations.

Window replacement can be turned from a possible risk into a competitive advantage by using digital documents, following set measurement methods, and working closely with reputable providers. Precision measurement pays off in the form of less waste, faster installations, and better building performance that makes both clients and residents happy.

FAQ

When should you hire a professional to measure for window replacement?

For large commercial projects, buildings with multiple floors, or heritage retrofits where structural complexity raises risk, hire professional surveyors or certified installers. Professionals make sure that measures meet engineering standards by using calibrated tools and knowing how to do load-bearing tests. For simple residential replacements, procurement staff with enough experience and the right tools can get the job done accurately enough, but if there is any doubt, they should talk to an expert to avoid making mistakes that cost a lot of money.

What clearance allowance is recommended around aluminum flush window frames?

Usually, there should be 10 to 15mm of space on all sides of the frame's edge. This gap is big enough to fit installation shims, polyurethane expanding foam for insulation, and cycles of temperature expansion. In places where temperatures change a lot, like northern states that get -20°C in the winter and 35°C in the summer, you might want to use 15mm clearances to keep the aluminum flush windows frames from binding. For system-specific advice, look at the startup book that came with your system.

How do cold climates affect measurement and window performance?

In cold places, you need to pay attention to thermal bridging and controlling condensation. Make sure the measurements allow for thicker thermal breaks, and if energy codes say it's necessary, think about triple glazing. The insulation layers around the frame need to be continuous. Check the full depth of the wall assembly, including the vapor barriers inside. When EPDM seals and multi-point locking systems are properly sealed, they keep air out and stop drafts that are bad for comfort and energy economy.

Partner with Haolv Building Materials for Precision-Engineered Aluminum Flush Window Solutions

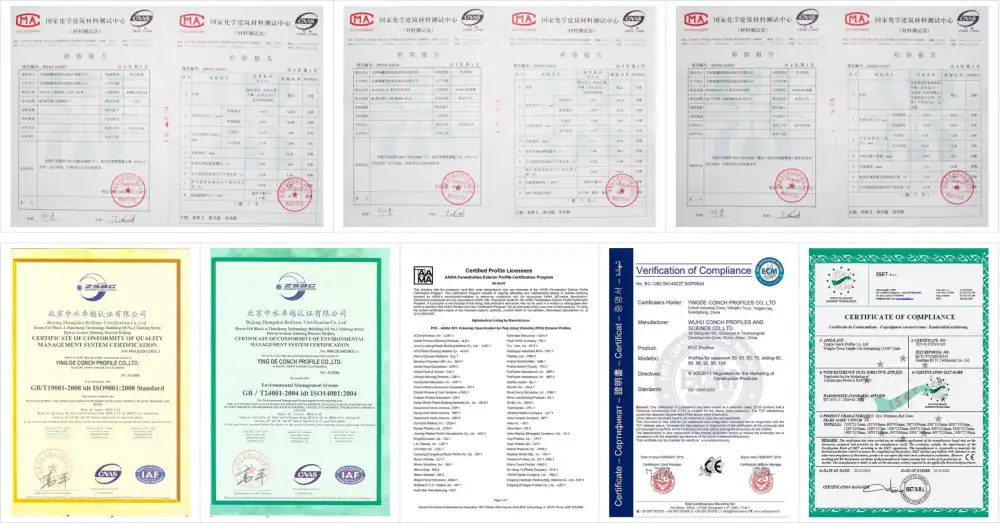

As a reputable maker of aluminum flush windows with more than 18 years of experience, Haolv Building Materials works with builders, developers, and wholesalers all over North America. Our ISO-certified factory uses precise CNC cutting, automated assembly lines, and strict quality testing to make sure that the windows we sell always meet AAMA and NFRC standards. We make 60, 70, and 80 series systems out of 6063-T5 aluminum alloy. Profile thicknesses range from 1.4mm to 2.0mm, and we can powder coat, anodize, wood grain, or PVDF finish them in any color you want to match the look of your project.

We don't just make products; we also offer full technical support, such as free measurement consultations, detailed parameter sheets, installation videos, and assembly manuals that are made just for you. You can customize the type of glass (tempered, double-glazed 5+12A+5, laminated), hardware, thermal break configurations, and EPDM sealing systems on each unit to make sure it fits your project needs perfectly. We offer knock-down shipping options that cut down on logistics costs by up to 30%. This lets you place bulk orders that are both cost-effective and quick, with delivery times of 25 to 30 days and enough stock for last-minute needs.

To talk about your next job, email kristin@haolvwindows.com or go to haolvbuilding.com. We offer custom solutions, low prices, and trustworthy relationships that will help you succeed in the business and domestic window replacement markets.

References

1. American Architectural Manufacturers Association (AAMA). Performance Standards for Aluminum Windows and Doors. AAMA 101/I.S.2, 2020 Edition.

2. National Fenestration Rating Council (NFRC). Certified Products Directory: Thermal Performance Ratings for Windows and Doors. NFRC Technical Bulletin, 2023.

3. Hutchins, Mark and Thompson, Laura. Precision Measurement Techniques in Commercial Glazing Projects. Journal of Building Envelope Design, Vol. 12, No. 3, 2022, pp. 45-62.

4. British Standards Institution. Windows and Doors: Weather Tightness Testing and Classification. BS 6375-1:2015, Parts 1-3.

5. Chen, Robert Y. Thermal Break Technology in Modern Aluminum Window Systems: Performance and Specification Guidelines. Construction Materials Quarterly, Spring 2023, pp. 78-91.

6. Daniels, Patricia and Kumar, Anil. Flush Casement Systems: Design, Measurement, and Installation Best Practices for Heritage and Contemporary Buildings. International Journal of Architectural Technology and Sustainability, Vol. 8, Issue 2, 2021, pp. 112-134.
