How to Select Windows for Energy Efficient Building Projects?

When choosing windows for an energy-efficient building, you need to think carefully about how well they keep heat in, how well they hold up, and how much they will cost in the long run. Thermal Break Casement Window systems have become a popular choice for commercial and residential projects that need to be more durable and insulate better. The aluminum shapes on the inside and outside of these windows are separated by a polyamide thermal barrier. This stops heat from moving and keeps the windows' slim sightlines and structural strength.

This method solves the main problem of metal conductivity, achieving U-values as low as 1.0 W/m²K and lowering the cost of heating and cooling in a wide range of climates. When buying teams know how thermal break technology works along with glazing options, closing systems, and the quality of the hardware, they can make decisions that are in line with the project's energy goals and budget.

​

Understanding Thermal Break Casement Windows and Their Role in Energy Efficiency

What Makes Thermal Break Technology Essential

Thermal break technology changes the way aluminum windows work in places that need to save energy in a big way. Traditional aluminum frames quickly transfer heat, making thermal bridges that weaken insulation and cause condensation to form inside. Place a low-conductivity polyamide strip (usually PA66GF25 with 25% glass fiber support) between the inside and outside aluminum parts. This makes a barrier that stops the flow of heat. As a result, the frame's inside stays close to room temperature. This keeps moisture from hitting its dew point and gets rid of humidity problems that were common in older aluminum systems.

The tech behind this answer includes carefully choosing which materials to use and putting them together. The nylon strip needs to be strong enough to stand up to wind loads and structural stress while also letting very little heat pass through it. As required by testing standards, these strips must be able to withstand tension forces that are higher than what is normally needed for normal operation. This makes sure that the window stays structurally sound throughout its lifetime. Because they are good at both keeping heat in and moving things around, thermal break systems can be used in high-rise buildings, along the coast, and in places where temperatures change a lot.

Core Components That Define Performance

Knowing what the materials are made of helps procurement workers judge the quality and usefulness of a product. Profiles in high-performance systems are made of 6063-T5 architectural grade aluminum alloy, which was chosen because it has the best balance of strength, workability, and resistance to corrosion. The thermal break strip is usually between 14 and 34 mm wide, but this depends on the series and the U-value that is being sought. In general, wider thermal breaks insulate better, but they may make the material more expensive and the profile bigger.

The way the glass is arranged is also very important for how well it keeps heat in. U-values of 1.6 to 1.8 W/m²K can be reached with double glazing that has low-emissivity coatings and argon gas fill, and 0.8 to 1.2 W/m²K can be reached with triple glazing. The best choice between these options relies on the temperature zone, the energy code, and the project's budget. Laminated glass options add soundproofing and better safety features, which are especially useful in commercial developments or public buildings in cities.

The third part of temperature efficiency is sealing systems. Multi-layer EPDM (ethylene propylene diene monomer) gaskets make compression seals at many contact points, which stops water and air from getting in when the pressure is on. Quality systems get air permeability ratings of Class 4 and water tightness ratings of up to E1050, which means they meet strict performance standards for places that are open to the elements and bad weather.

Measured Impact on Building Energy Consumption

When properly chosen and fixed, Thermal Break Casement Windows can save you a lot of energy. Studies in different climate zones show that thermal breaks in aluminum windows can cut heating and cooling costs by 15 to 35 percent compared to normal aluminum windows that don't have thermal breaks. Over the life of the building, these savings add up to a lot, and the higher initial cost is usually covered by lower utility costs within 5 to 8 years.

In addition to saving energy directly, better thermal performance makes people more comfortable by getting rid of cold surfaces around windows. This cuts down on comments about drafts and uneven temperature distribution, which happen a lot in buildings with windows that don't keep heat in. Sound reduction of up to 45dB is possible with multi-chamber profiles and quality glazing, which makes occupants even happier. This is especially helpful in residential developments and hospitality projects.

Note: You should check specific performance numbers with product testing reports and third-party certifications that are important to your project.

Key Criteria to Consider When Selecting Windows for Energy-Efficient Projects

Evaluating Thermal Performance Metrics

The U-value, which stands for "thermal transmittance," tells you how well a window stops heat from moving through it. Lower U-values mean better insulation. The U-values for Thermal Break Casement Windows usually range from 1.0 to 1.8 W/m²K, based on the profile depth, glazing standard, and thermal break width. When setting U-value goals, procurement teams should make sure they are in line with local energy codes and project sustainability goals. They should also keep in mind that small improvements in this metric directly lead to operational energy savings.

The Solar Heat Gain Coefficient (SHGC) tells you how much heat the sun's rays pass through a window. Lower SHGC values lower the need for air conditioning in climates that tend to cool down, while higher coefficients that capture passive solar gains may be better in climates that tend to heat up. To get the best year-round energy performance, you need to look at the building's orientation, shading, and interior heat loads when choosing the right SHGC numbers.

When there is a difference in pressure, air loss rates measure how much air moves through a closed window, and this performance is directly influenced by the window's design, such as that of a Thermal Break Casement Window. Ratings are based on standard testing procedures, with Class 4 meaning very little leakage that is fine for most business uses. Graduated rating systems are also used for water tightness and wind load resistance. This lets design teams match window performance to exposure conditions and building height.

Comparing Window Types and Operating Mechanisms

When it comes to closing, casement windows that swing outward are better than sliding or double-hung windows. The compression seal that forms when the sash closes against the frame keeps out air and water better. Tilt-and-turn models give you more options; they let you tilt the top hinged door for safe ventilation and open the whole side hinged door for cleaning and getting out.

Profile depth has a big effect on both heat efficiency and structural strength. For low-rise residential construction, Series 70 systems offer basic performance. Series 80–100 profiles, on the other hand, can handle higher glazing requirements and lower U-values. Series 120 and up meet the needs of high-rise buildings and provide the best insulation through longer thermal break cavities.

When the aluminum structure is made from strengthened 6063-T5 metal and the profile thickness is between 1.4 and 2.0 mm, it is stable over time and doesn't warp, twist, or bend when temperature changes and mechanical stress is applied. This stability in dimensions makes sure that the seal always compresses the same amount and stops operational problems that hurt energy efficiency over time.

Customization Options That Address Project Requirements

The choice of surface treatment affects both how it looks and how much care it needs. Powder coating comes in a wide range of colors and is usually between 60 and 80 microns thick, which meets the standards for durability and weather protection set by Qualicoat approval. PVDF (polyvinylidene fluoride) finishes are great for exteriors that get a lot of sun because they are resistant to UV rays and keep their color better. Anodized finishes give things a unique metallic look and make them more resistant to corrosion in coastal areas.

Quality thermal break systems have a slim profile design that makes the most of the glass area compared to the width of the frame. This makes the inside of the building brighter while keeping the structure strong. This architectural benefit supports daylighting strategies that lower the energy use of artificial lighting and help achieve wellness goals for building occupants, which is becoming more and more important in commercial developments.

When specifying hardware systems, they need to be given a lot of thought. High-quality multi-point closing devices make the frame safer by spreading the force of the wind around its edges. Lockable handles with limited opening positions are good for keeping kids safe in home settings. Friction stays and hinges should be tested for longevity over 50,000 to 100,000 operations, which will make sure they work reliably for a long time.

In addition to basic double or triple windows, you can choose low-iron glass for maximum light transfer, tinted or reflective coatings for sun control, and acoustic laminated designs to reduce noise. Custom shapes and sizes make it possible to integrate curtain wall systems with a wide range of architectural styles, from traditional home openings to floor-to-ceiling commercial systems.

Cost and Procurement Considerations for Thermal Break Casement Windows

Understanding Total Cost of Ownership

The high cost of materials and tech that go into making high-performance devices is reflected in the initial prices for Thermal Break Casement Windows. Depending on the profile series, glass standard, hardware quality, and surface finish choice, unit costs are usually in the modest to high range. Procurement pros should compare these prices to things like expected service life, energy savings, and the amount of upkeep that needs to be done.

Customization costs more, but it gives you specs that are exactly what you need for your job. Sizes that aren't standard, finishes that come in two colors, custom glazing arrangements, and better hardware should all be priced in during the specification phase. When you buy more than 500 to 1000 square meters, the pricing often becomes more favorable, and volume discounts become very important for big jobs.

Installing a window depends on its size, the height of the building, and the conditions of the spot. Installing something professionally by trained experts makes sure that it is properly anchored, weatherproofed, and operationally adjusted, all of which are important for getting the desired heat performance. Some manufacturers offer technical support, which can include on-site training and supervision of installation. This is helpful for contractors who don't know much about how the system works.

Sourcing Strategies and Supplier Evaluation

To find reliable suppliers, you need to look at their manufacturing skills, quality control systems, and experience with exporting. Most well-known makers have production sites that are ISO-certified and have integrated processes for extrusion, cutting, welding, and assembly. Precision CNC machines and automated equipment make sure that the tolerances are always the same, which is important for proper seal tightness and smooth operation.

Protocols for quality control should include checking the raw materials, inspecting the work as it's being done, and testing the finished product. Some important checks are testing the tensile strength of polyamide strips, checking the integrity of corner joints using hydraulic crimping and two-component adhesives, measuring the thickness of the coatings against international standards and checking the quality of the insulated glass unit seals to stop gas leakage and internal fogging.

Delivery times are an important thing to think about when buying something, especially for building plans that are broken up into stages. Most reputable providers say it will take 25 to 30 days to make something from the time the order is confirmed until it is shipped, assuming standard specs and a modest number of orders. Longer lead times may be needed for custom configurations or large-scale projects, which should be taken into account when planning the order of construction.

Some manufacturers offer knock-down shipping, in which window parts are sent to customers without being put together. This cuts freight numbers by about 30% and handling costs by a large amount. This method needs to be put together on-site, but it saves a lot of money for projects that have trouble moving containers or are on a tight budget.

For a Thermal Break Casement Window, this shipping approach is especially advantageous because its extruded profiles and insulated frames are bulky yet lightweight, making partial assembly prior to shipment impractical; however, on-site assembly remains straightforward. Expert providers offer assembly directions, technical parameter tables, and installation videos to make the process easier and make sure the job is done right in the field.

After-Sales Support and Warranty Considerations

Full insurance coverage shows that the maker trusts the product to last and work well. Most standard guarantees cover hardware function for 5 to 10 years and profile integrity and finish durability for 10 to 20 years. Because they know this is an important long-term performance factor, some suppliers offer special warranties for insulated glass unit seal failure.

Throughout the lifecycle of a project, technical help services are worth having. When suppliers offer free consultation during the specification phase, it helps buyers choose the best product for their needs and the weather. Drawing coordination services make sure that the details of the windows and doors fit in well with the building and structural plans. This cuts down on problems and changes that need to be made in the field.

When suppliers or area distributors keep enough inventory on hand, they can quickly fill extra orders or repair parts that are lost during building. This level of supply chain depth is especially helpful for big projects with multiple stages or that need ongoing maintenance after the first tenants move in.

​

Evaluating Thermal Break Casement Windows Against Alternative Solutions

Performance Comparison with Other Window Systems

Thermal Break Aluminum Casement Windows have their own place in the window and door market because they balance performance factors in a way that other options don't. Aluminum thermal break systems are stronger than uPVC (unplasticized polyvinyl chloride) windows, which means they can hold bigger glass panels and have thinner sightlines. This strength advantage is very important in business settings and modern home designs that feature lots of large windows. Good uPVC windows keep heat in very well, but they don't keep their shape as well as aluminum does when temperatures change, and they can discolor or break after being exposed to UV light for a long time.

Even though wood windows look nice and naturally insulate, they need to be painted or stained on a regular basis to keep them from rotting from water damage. The cost of upkeep and replacement parts over time is usually higher than for aluminum systems with long-lasting finishes applied at the plant. Thermal Break Aluminum Casement Windows don't need to be maintained like wood does, but they have the same or better thermal performance thanks to designed thermal barriers and advanced glazing specs.

As an alternative, fiberglass frames are available. They don't conduct heat well and keep their shape. Prices for these systems are usually higher, about the same as for high-end thermal break aluminum, and you can't change the color or finish as much. The people in charge of buying things should compare these trade-offs to the project's specific goals when it comes to looks, performance, and price.

When Thermal Break Casement Windows Excel

Thermal Break Casement Window solutions are especially useful in a number of situations. Aluminum's strength-to-weight ratio and resistance to wind load deflection make it a good choice for high-rise buildings. The material stays the same size across a wide range of temperatures, which keeps operating problems that hurt seals and energy efficiency in open areas at bay.

Materials that don't rust and can handle salt spray and humidity without breaking down are needed near the coast. Anodized or PVDF-finished aluminum shapes with stainless steel hardware offer a level of resilience that can't be matched by materials that are easily damaged by water. When the weather gets bad, multi-layer EPDM sealing systems keep out water, keeping the inside of buildings dry.

Projects that want to get sustainability certifications like how easy it is to recycle aluminum and how thermal break technology saves energy. The mix helps earn LEED credits for things like using recycled materials, lowering operational energy use, and making the best use of daylight. A service life of more than 30 years reduces the number of replacements needed and the energy used to make them over the building's lifetime.

Understanding Limitations and Installation Requirements

Thermal Break Casement Windows are more expensive than basic aluminum or uPVC windows. This price difference shows how advanced the engineering, high-quality materials, and precise production must be to get better results. Long-term energy savings, less upkeep, and longer service life should be weighed against these costs by procurement choices to find the true value.

Because of how complicated the installation is, it needs to be done by trained professionals who know the right way to fix, waterproof, and make operating adjustments. No matter how good the product is, if it's not installed correctly, it will not work as well thermally. This is why professional installation or thorough training is necessary. Some types of projects may have trouble finding workers, which could lead to easier systems that don't need as many specialized skills.

When retrofitting older buildings, where structural capacity may limit the types of windows that can be used, weight becomes an important factor. Even though aluminum thermal break systems are lighter than equivalent steel frames, they are heavier than uPVC windows, which means that in some retrofit situations, the structure may need to be strengthened.

Conclusion

When choosing windows for energy-efficient building projects, it's important to look at thermal performance data, structural needs, and lifetime costs in a planned way. Built-in thermal barriers, a variety of advanced glazing choices, and long-lasting construction make Thermal Break Casement Window systems work well in both business and domestic settings. A good procurement process weighs the initial cost against the amount of money saved on energy, the amount of maintenance needed, and the length of time the system will work.

Knowing the criteria for specifications, such as U-values, air leakage rates, profile series, and hardware quality, helps you make choices that are in line with project goals. Buying from companies that have quality control, enough production capacity, and full technical help lowers the chance of buying something and makes sure it works the way it's supposed to. The value of the original investment in windows is protected by regular upkeep and planned upgrades that keep the building's thermal efficiency over its entire life.

FAQ

What is the typical lifespan of thermal break casement windows in commercial applications?

When properly kept, high-quality Thermal Break Casement Window systems last longer than 30 years. The aluminum profiles don't rust and keep their shape even when the temperature changes. The powder coating or PVDF finishes that are sprayed at the plant protect them from UV damage and weathering. Hardware parts that can handle 50,000 to 100,000 cycles of operation ensure reliable long-term function.

Can thermal break casement windows work with smart energy control and building automation systems?

These days, Thermal Break Casement Window systems are easy to upgrade to include motorized operators and sensors that work with building management systems. Automated control lets you set times for ventilation, respond to sensors that measure the quality of the air inside, and work with HVAC systems to get the best energy use. For security and HVAC interlocks, contact sensors check the status of each window, and built-in shading devices adjust to the sun's position.

How long does it usually take to get a custom thermal break casement window?

Standard setups usually ship 25 to 30 days after the order is confirmed, as long as the number is modest and the materials are easy to get. Depending on how much customization is needed, custom specifications like non-standard sizes, colors, glazing configurations, or hardware choices may add one to two weeks to the production time. Large projects with more than 2,000 square meters of windows often benefit from shipping plans that are broken up into stages that match the order of building.

Partner with Haolv Building Materials for Your Next Energy-Efficient Window Project

Haolv Building Materials has been making specialized building products for 18 years and can meet your needs for Thermal Break Casement Windows. Our production facility is state-of-the-art and includes automated assembly systems, precision CNC cutting, and aluminum extrusion. This makes sure that the quality of both standard and custom orders is always the same. We make window systems with reinforced 6063-T5 aluminum profiles, polyamide thermal breaks, multi-layer EPDM sealing, and glass configurations ranging from double to triple glazing. These features have been shown to meet strict energy code requirements in a variety of climate zones.

Because we know that logistics can be hard for business-to-business clients, we offer knock-down component shipping, which cuts the amount of freight by about 30% and significantly lowers your transportation costs. Our technical team offers full support, including free advice during the specification process, coordination of custom drawings, and thorough assembly instructions with installation films.

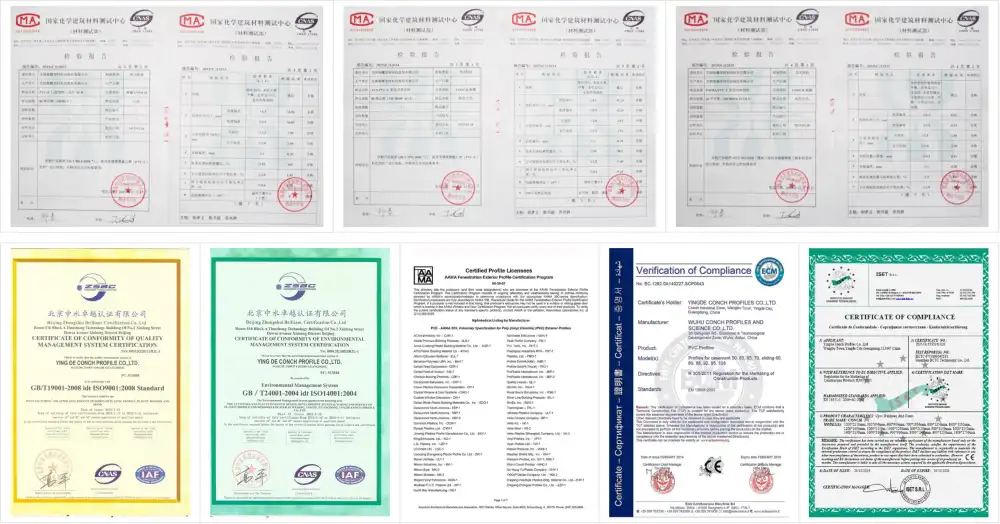

Our quality systems are backed by ISO and CE certifications, and we can deliver your order within 25 to 30 days. This makes us a trusted Thermal Break Casement Window provider for projects that need to meet both performance and schedule requirements. You can email kristin@haolvwindows.com or go to haolvbuilding.com to get detailed data tables, product samples, or quotes that are tailored to your project's needs.

​

References

1. American Architectural Manufacturers Association. Thermal Performance of Fenestration Systems: Testing and Rating Standards. AAMA Technical Publication Series, 2022.

2. National Fenestration Rating Council. Certified Products Directory: Energy Performance Ratings for Windows, Doors, and Skylights. NFRC Annual Publication, 2023.

3. U.S. Department of Energy. Energy-Efficient Window Specifications for Commercial Buildings: A Procurement Guide. Office of Energy Efficiency and Renewable Energy, 2021.

4. International Aluminum Institute. Sustainability of Aluminum Building Products: Lifecycle Assessment and Recycling Benefits. Industry Research Report, 2023.

5. Building Science Corporation. Thermal Bridging in Commercial Building Envelopes: Identification and Mitigation Strategies. Technical Building Bulletin, 2022.

6. Whole Building Design Guide. Fenestration Systems for High-Performance Buildings: Selection Criteria and Best Practices. National Institute of Building Sciences, 2023.
