How to Specify Aluminum Tilt Turn Windows for High Rise Ventilation Projects

Specifying Aluminum Tilt Turn Windows for a high rise project comes down to ventilation strategy and safe operation, not to how the elevation photographs. A tilt turn sash does two jobs with one handle: the tilt position opens the top of the sash inward by 10 to 15 degrees for draught free background ventilation, while the turn position swings the whole sash inward like a door for purge ventilation and for cleaning both glass faces from inside the room. Four variables decide whether the window actually performs on a tall building: profile wall thickness, glazing configuration, locking and restrictor hardware, and the sealing system. For trade buyers and procurement teams supplying high rise residential, hotel and institutional projects, those four are also what decide whether the order ships without site rework.

Understanding Aluminum Tilt Turn Windows: Key Features and Benefits

What Makes a Tilt Turn Window Different From a Casement?

A casement window has one opening mode. A tilt turn window has two, and it changes which rooms can be ventilated and when. In tilt mode the sash rotates on bottom hinges so only the top edge opens inward, roughly 10 to 15 degrees. The opening is small enough that rain is deflected and a person cannot pass through, so a room can be aired while the building is occupied and while the weather is poor. In turn mode the sash rotates on side hinges through 90 to 180 degrees, giving full airflow and full access to the glass.

The practical consequence for a specifier is hardware rather than frame. A single handle drives a multi point locking rail that has to switch between tilt, turn and locked states, and that gear is where quality shows. The product page for these units states a multi point European locking system, triple EPDM gaskets, an optional integrated mosquito screen and an optional child safety lock. The frame itself is 6063 T5 aluminium alloy with a profile thickness of 1.4 to 2.0 mm, and the thermal break is listed as optional, which is the single most important decision you will make on a cold climate project.

Why High Rise Projects Specify Inward Opening Sashes

Above roughly the fourth floor, exterior access for cleaning stops being routine and starts being a safety procedure. An inward opening turn sash removes the problem: both glass surfaces are reachable from inside the room, so no scaffolding, rope access or window cleaning cradle is needed on the resident side. On a tower with hundreds of units, that is a recurring operating cost avoided rather than a one off saving, and it is the argument that usually closes the specification discussion with a facilities manager.

Safety hardware follows the same logic. A restrictor stay limits how far a sash opens, and a child safety lock holds the limit until an adult releases it, which matters in schools, hospitals and residential towers with young families. Because these two items are options rather than standard, they have to be written into the enquiry line by line. If they are not on the purchase order, they will not be on the window.

Bulk Procurement Considerations for Trade Buyers

Quantity planning starts with the minimum order. A supplier who accepts a starter order of 10 to 20 units lets a distributor test specification, installation practice and market response without locking working capital into a full container of one configuration. From there, capacity and lead time set how fast you can scale: with component stock on hand and an integrated supply chain, standard delivery sits in the 25 to 30 day range from order confirmation.

Packing drives landed cost as much as unit price. Knock down configurations, where frame sections, sash assemblies, glass and hardware ship as separate modules, use substantially less container volume than fully assembled units, at the cost of on site assembly. That trade off makes the supplier documentation part of what you are selling, so ask for assembly instructions and technical parameter sheets before you confirm, not after the first container lands.

Climate Considerations: How Weather Conditions Affect Aluminum Tilt Turn Window Performance

Cold Climate Requirements and Thermal Engineering

Aluminium conducts heat at roughly 160 to 200 W/(m·K), so a plain aluminium frame behaves as a thermal bridge between the two faces of a wall. A thermal break interrupts that path with a glass fibre reinforced polyamide strip, usually PA66 GF25, conducting at about 0.3 W/(m·K). The gap in performance is large: a non thermal break aluminium frame sits in the region of 5.5 to 7.0 W/m²K, while a thermal break aluminium window with double glazing reaches roughly 2.0 to 2.7 W/m²K for the whole window.

Because the product page lists the thermal break as optional, the climate decides it. In a heating dominated market the thermal break is not a feature to trade away for price, because the frame surface stays cold, and a cold frame surface condenses whenever indoor humidity is normal for a heated home. Where the specification goes further, moving to triple glazing with argon and a warm edge spacer pushes the unit further, but the frame remains the ceiling on how well the assembly can perform.

Hot and Humid Climate Adaptations

In hot and humid markets the priority shifts from insulation to solar control, water management and durability. Low E coated glass limits the solar heat that enters, which reduces cooling load more effectively than adding insulation to a frame does. Drainage and the sealing system then handle the driven rain: triple EPDM gaskets around the whole perimeter, with drainage paths that let water leave the frame instead of standing in it.

Hardware also changes with the climate. High humidity and salt air punish cheap fittings long before they punish the aluminium, so stainless steel hinges and locking components are worth specifying up front. Powder coating, anodising and wood grain finishes all resist chalking under sustained UV, and the integrated mosquito screen option becomes a genuine selling point in markets where insect protection is treated as a household basic rather than an upgrade.

Coastal and High Wind Zone Specifications

Wind load is the harder limit on tall buildings, because pressure rises with height and with exposure. The listed 1.4 to 2.0 mm profile thickness is what carries that load, together with a multi point locking system that engages the sash around the perimeter instead of at one point. Where the permitted deflection band is tight, the frame, gasket, restrictor and drainage detail have to be engineered as one system rather than assembled from catalogue parts.

Coastal exposure is mainly a hardware and finish question, since aluminium is inherently corrosion resistant. Marine grade stainless steel hardware, neutral cure silicone in the glazing pockets and a coating system rated for salt spray all extend service life, and the anodised or PVDF finishes hold colour longer than standard powder coating under combined UV and salt load. Specify those three items explicitly and a coastal enquiry stops being a warranty risk.

Comparing Aluminum Tilt Turn Windows to Other Materials

Performance Analysis Against Traditional Frame Materials

Against PVC U, aluminium buys strength and dimensional stability, which is why it holds larger sash sizes and slimmer sightlines on tall elevations. PVC U expands and contracts more with temperature, so long sashes need internal steel or aluminium reinforcement to stay straight, and the profile is deeper for the same structural duty. Against timber, aluminium removes the repainting cycle and the rot problem entirely, which matters on a building where access to the facade is expensive.

Against steel the trade off is different again: steel is stronger and cheaper per kilogram, but it is heavier, it corrodes unless coated, and it is a poorer thermal performer without an internal break. For window duty in residential and institutional buildings the aluminium answer is usually the one that satisfies structural, thermal and maintenance requirements at the same time, which is why tilt turn systems are specified in aluminium far more often than in any other frame material.

Glazing Options and Energy Performance

The product page sets out four glazing routes. Double glazing at 18 to 24 mm is the standard insulation option, triple glazing at 32 to 40 mm is the maximum thermal efficiency route, laminated glass at 6.38 to 12.76 mm adds impact resistance and safety, and Low E coated glass handles solar heat control. Those are not alternatives to the frame decision; they multiply it, because a high performance glass unit behind a frame with no thermal break still leaks heat through the frame.

Where noise matters, laminated glass is usually the deciding factor rather than extra cavity width, because the interlayer damps the glass panes and shifts the resonant frequency of the unit. Where the client is chasing an energy target, triple glazing with an argon fill and a warm edge spacer is the route, and the warm edge spacer matters because the edge of a sealed unit is otherwise its coldest line and the first place condensation appears.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification and Compliance Standards

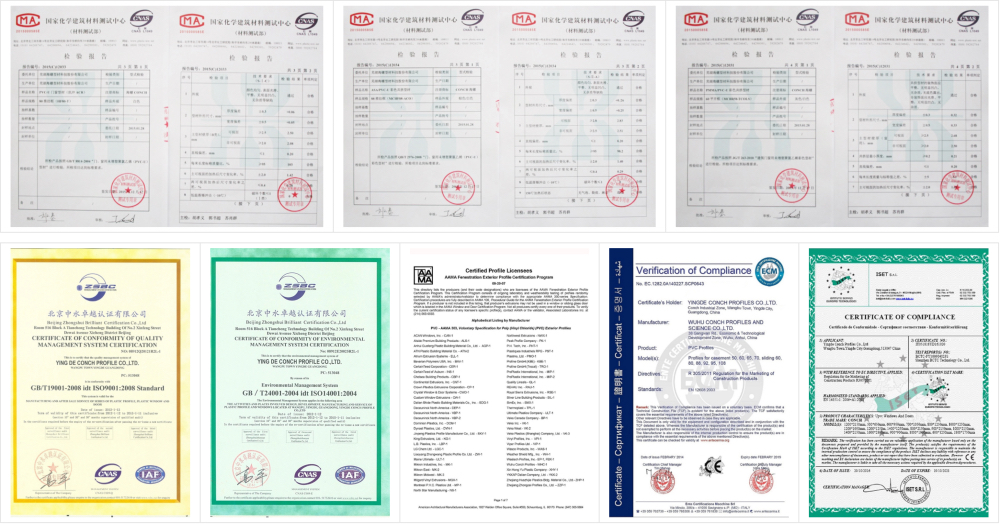

Certification paperwork is what lets you defend a specification to a client. The product page lists ISO, CE and AAMA certification, which covers quality management, European market conformity and the North American performance criteria for air infiltration, water penetration and structural loading. For the numbers a specifier will actually ask you to quote, request the whole window U value rather than the frame value alone, plus the air permeability, watertightness and wind load classifications. EN 14351-1 is the product standard that ties those together, while EN 12207, EN 12208 and EN 12210 define the three classifications.

Customization Capabilities and Order Flexibility

Standard sizes rarely fit every opening, and on refurbishment work the reveals can vary from floor to floor. Suppliers who can adjust width and height within normal production tolerances reduce on site modification, and hardware finishes, glass specification and thermal performance can all be tailored to the project. With full OEM and ODM support the practical question for a buyer is how far the factory will go on drawings, because that decides whether a non standard order is a routine job or a negotiation.

Logistics and Installation Support

Container planning changes cost per unit more than most buyers expect. Knock down packing, where frames, sashes, glass and hardware ship in separate modules, cuts the volume required and lowers freight per unit, and it requires assembly documentation good enough for another crew to follow. Technical parameter sheets, assembly instructions and installation video material shorten installer training and reduce the field errors that turn into warranty claims.

On the customs side, an experienced exporter provides commercial invoices, packing lists and certificates of origin formatted for the destination country, together with correct Harmonised System code classification so the shipment is not penalised for misclassification. It is also worth confirming how the load will be braced for the container type you are booking, because mixed loads of frame sections and separate glass packs need a packing plan that protects both.

Maintenance and Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

Maintenance on a tilt turn window is limited to the moving parts, but it is not optional, because the whole point of the product is the hardware. Lubricate hinges and the locking gear annually, inspect gaskets occasionally, and wash the frames periodically with a mild pH neutral detergent. The aluminium frame needs no painting or refinishing. In coastal or high dust environments, increase the gasket inspection frequency, because salt and grit accelerate the wear that lets air and water past the seal.

Early Warning Signs and Component Replacement

The first symptom is usually operational rather than visible: a sash that needs more force to reach the tilt position, or a handle that no longer clicks cleanly into all three states. That points at the locking gear or the hinge, and dealing with it early prevents the sash from dropping out of alignment, which is a much larger repair. Gaskets are the second consumable, and a compressed or hardened gasket is the reason a window that used to be airtight starts whistling.

On the glass side, fogging between the panes means the desiccant is saturated or the edge seal has failed and moisture has entered the cavity, and the sealed unit has to be replaced rather than repaired. Chalking or colour loss on the finish indicates the coating is degrading and should be assessed before the aluminium beneath is exposed. Water staining around the reveal during driving rain usually means the drainage path is blocked rather than that the window has failed.

Performance Enhancement Options

Because the hardware and the glazing set the ceiling, the upgrades worth offering to an existing customer are the ones that restore or raise those two, not the ones that decorate. Replacing hardened gaskets and servicing the locking gear returns the window to its rated airtightness at a fraction of replacement cost, and reglazing with a Low E or laminated unit raises thermal or acoustic performance without touching the frame. Both are easy retrofit conversations, and both protect the value of an installation that is already in place.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Specifying Aluminum Tilt Turn Windows for high rise work comes down to matching ventilation strategy, safety hardware and thermal performance to the climate and the building height. The dual tilt and turn action solves two problems that matter most above ground level, background ventilation without a draught and safe cleaning from inside, and the 1.4 to 2.0 mm profile together with a multi point locking system carries the wind load that height brings. Buying from a supplier with verifiable certification, real customisation capability and logistics support is what turns those specifications into a window that performs where it is installed.

FAQ

Q1: Why are tilt turn windows preferred for high rise buildings?

A: Because both opening modes face inward. Tilt mode gives controlled background ventilation with no draught and no path for rain, while turn mode gives full airflow and lets residents clean both glass surfaces from inside, removing the fall risk and the cost of external access equipment. A restrictor stay and child safety lock add a further limit on opening width.

Q2: Do these windows need a thermal break?

A: It depends on the climate. The thermal break is listed as an optional item on this product, which suits mild and hot climates where insulation is not the priority. In a heating dominated climate the break should not be traded away for price, because without it the frame stays a thermal bridge and condenses when indoor humidity is normal for a heated home.

Q3: What glazing configurations are available?

A: Four routes are listed: double glazing at 18 to 24 mm for standard insulation, triple glazing at 32 to 40 mm for maximum thermal efficiency, laminated glass at 6.38 to 12.76 mm for impact resistance and safety, and Low E coated glass for solar heat control. The frame sets the ceiling on the assembly, so glass and frame decisions have to be made together.

Q4: What are typical lead times and minimum order quantities?

A: With component stock on hand and integrated supply chain management, standard delivery is usually 25 to 30 days from order confirmation. Initial orders of 10 to 20 units are accepted, and both neutral packaging and OEM branding are available so a new market can be tested without committing to a full container.

Partner with Haolv Building Materials for Aluminum Tilt Turn Windows

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable aluminum tilt turn window supplier. Our ISO, CE and AAMA certified factory in Hunan Province works with CONCH to keep raw material quality consistent, and our 25 to 30 day delivery schedule is supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team configures profile thickness, glazing specification, hardware finishes and safety options to match your project requirements, and supports your installers with technical parameter sheets. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.

1. European Committee for Standardization. (2016). EN 14351-1: Windows and doors — Product standard, performance characteristics.
2. European Committee for Standardization. (2000). EN 12207: Windows and doors — Air permeability — Classification.
3. European Committee for Standardization. (2003). EN 12208: Windows and doors — Watertightness — Classification.
4. European Committee for Standardization. (2003). EN 12210: Windows and doors — Resistance to wind load — Classification.
5. American Architectural Manufacturers Association. (2022). AAMA 101: Voluntary Standard for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors.
6. International Organization for Standardization. (2015). ISO 9001: Quality management systems — Requirements.
