Top Thermal Break Aluminum Bifold Door Configurations for Wide Exterior Openings

Choosing the right Thermal Break Aluminum Bifold Door comes down to matching the panel configuration to the width of the opening, the weight of each panel to the track, and the sealing to the climate the door has to face. A bifold door folds its panels to one side rather than sliding them past each other, so it clears the whole opening instead of half of it, which is why it suits wide patios and garden elevations. Four variables decide whether the order performs as specified: the panel count and stacking direction, the track and hinge hardware, the glazing and sealing specification, and the threshold detail. For trade buyers and procurement teams supplying villa and hospitality projects, those four decide whether the first installation runs without a service call.

Understanding Thermal Break Aluminum Bifold Doors: Key Features and Benefits

What Defines A Thermal Break Bifold Door?

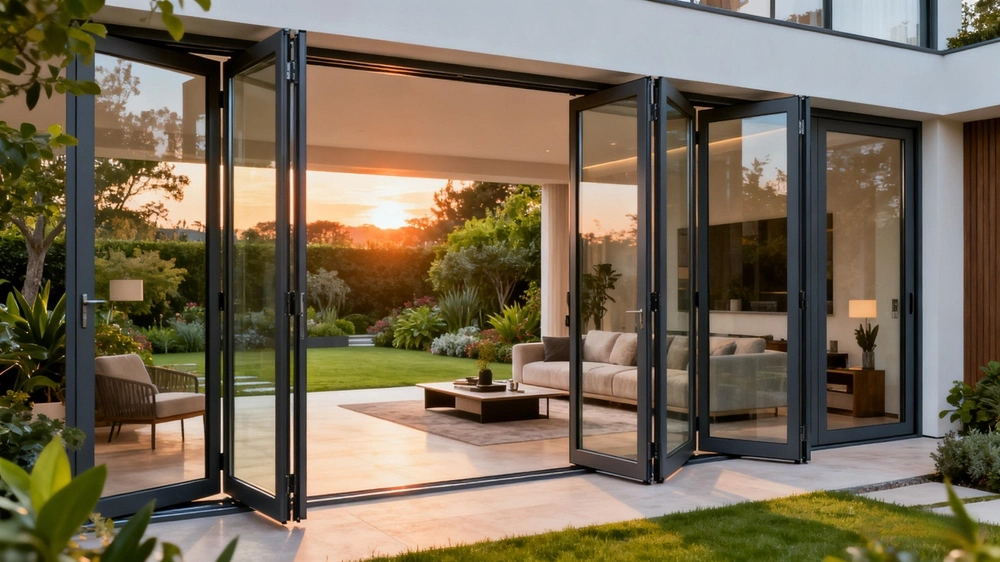

A bifold door is a set of narrow panels joined by hinges that fold back against one another as the door opens, running along a track at the head. Because the panels fold rather than swing, the door needs no clearance arc inside or outside, and because the whole set gathers to one side, the clear opening is close to the full structural width of the frame.

The product page for these doors states a reinforced thermal break aluminium profile, a panel configuration of 2 to 8 panels, a load capacity of 100 to 120 kg per panel, a top hung heavy duty track system, premium stainless steel hinges and rollers, multi-layer EPDM sealing, and double, triple or laminated glazing in 20 to 32 mm insulated units. The page also quotes 35 to 45 dB sound insulation. Those figures are what a structural opening has to be designed around, because panel weight sets the hardware and the header load.

How Panel Configuration Reshapes The Opening

Panel count is the first decision, and it follows from the opening width. A two panel set suits a narrow garden door, while a four, six or eight panel set is used as the opening widens, with the page noting that the system supports openings up to 55 feet in length. Panels can stack inward or outward, which decides where the folded set sits once the door is open.

A traffic door is the detail that separates a well planned configuration from a compromise. Where one panel operates as a normal door, the household can use the opening all day without folding the whole set back, which matters on a patio door that is in constant use and is the difference between a door that works daily and one that is only opened for parties.

Bulk Procurement Considerations for Trade Buyers

For a bifold door the specification that matters most is the hardware, because that is what fails first. Confirm the panel count, the stacking direction, the track system, the hinge and roller grade, the locking points and the glazing thickness in writing before the order is released, and confirm the opening width and height from the drawing rather than from a site measurement taken in a hurry.

Launch volumes can stay small. Initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding, and sample support is available so the hardware can be inspected before a full order is committed. For a distributor entering a villa market, a first order that mixes panel counts and finishes tests demand without the risk of one configuration going unsold.

Climate Considerations: How Weather Conditions Affect Thermal Break Aluminum Bifold Door Performance

Cold Climate Requirements and Thermal Engineering

In a cold climate the thermal break and the sealing system carry the performance. The polyamide strip separates the inner and outer aluminium, so heat is not conducted straight through the frame, and the multi-layer EPDM sealing closes the gaps at the panel joints and the perimeter, which is where a folding door leaks if the sealing is thin.

Glazing then sets the ceiling. The page lists double or triple glazing in 20 to 32 mm units, and a triple glazed unit with a low emissive coating is what a cold climate specification is normally built around. The threshold is the other cold climate detail, because a low threshold that does not seal becomes a cold bridge across the whole opening.

Hot And Humid Climate Adaptations

In a hot and humid climate the priority shifts to water and corrosion. The page describes powder coated, fluorocarbon and anodized finishes, and aluminium does not rust or absorb moisture, so the frame is not the weak point. What matters is the drainage in the track and the weather resistant threshold, which is the option that stops water being driven under the panels during a storm.

Solar gain is the other half. A low emissive coating on the glass reduces the heat that reaches the room, and the folding configuration itself helps, because a fully opened bifold door removes almost the entire wall between inside and outside and lets the space ventilate naturally instead of relying on air conditioning.

Coastal And High Wind Zone Specifications

A wide folding door is a large sail, so wind pressure on the panels and on the track is the governing load. The page states that the system is engineered for exterior exposure and high wind resistance, and the fixing of the track into the header has to be sized for that load rather than for the weight of the panels alone.

Salt air attacks hardware first, so the stainless steel hinges and rollers listed on the page are the components that decide whether the door still folds smoothly after years of coastal exposure. The finish should be specified as powder coated, fluorocarbon or anodized according to how severe the exposure is.

Comparing Thermal Break Aluminum Bifold Doors to Other Door Types

Performance Analysis Against Sliding And Hinged Doors

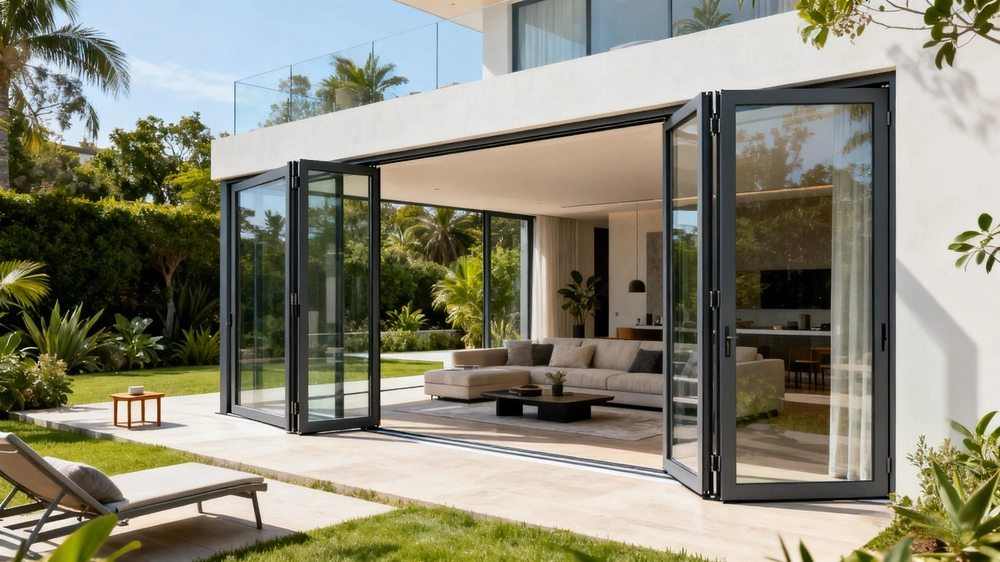

A sliding door moves panels past one another along a track, so only half the opening is ever clear and the moving panel must overlap a fixed one. A hinged door swings and needs clearance on one side. A bifold door folds to one side and leaves almost the whole opening clear, which is why it is chosen for wide external openings where the stacking position matters as much as the clear width.

Against a plain aluminium door, the thermal break version costs more because of the polyamide strip and the two part extrusion, and it avoids the condensation that forms on a cold single metal frame. Against timber, aluminium needs no repainting and does not swell at the threshold, which is the detail that fails first on an external timber door.

Glazing Options And Energy Performance

The page lists double, triple and laminated glazing in 20 to 32 mm insulated units. Double glazing balances thermal performance against panel weight, which matters on a folding door because every extra kilogram has to be carried by the track and the hinges. Triple glazing with a low emissive coating is the choice for extreme climates, and laminated glass adds security and ultraviolet protection.

On a folding door the glazing also affects operation. Heavier units need a stronger track and a higher capacity hinge set, and the page states that a top hung heavy duty system is used precisely so that large panels keep moving accurately. Glazing and hardware should therefore be specified together.

Procurement Factors: Making Informed Purchase Decisions

Technical Verification And Compliance Standards

External doors that cross a border are checked against published standards. EN 14351-1 is the European product standard for windows and doors, EN 12207 classifies air permeability, EN 12208 watertightness and EN 12210 resistance to wind load, AAMA 101 covers aluminium and vinyl products for North American projects, and ISO 9001 covers the manufacturing quality system. The product page states that these doors are ISO, CE and AAMA certified and ship with certification documentation, so ask for that paperwork with the quotation rather than after production has started.

Customization Capabilities And Order Flexibility

The page offers OEM and ODM capability with deep customisation from your drawings or specifications, including panel count, opening direction, finish, hardware and glass. For a distributor the practical limit is the header and the track, because the load of the whole set is carried at the head of the opening. Anything outside the standard range needs a drawing check before the order is confirmed, and that check is cheaper than a remake.

Logistics And Installation Support

A folding door ships as a set of panels plus a track and hardware kit, so the crate is long and relatively flat. In practice the panels are separated so the hinges cannot take load in transit, the track is packed so it cannot bend, and the hardware travels in its own pack so that rollers are not lost or damaged before installation.

Installation is where a folding door succeeds or fails. The track has to be level and straight, the header has to be able to carry the load, and the panels have to be adjusted so they hang square before the seals are set. The page states that the technical team provides installation guidance and project specific consultation, including detailed instructions, which keeps the fitting inside the installer scope rather than turning it into a redesign.

Maintenance And Longevity: Protecting Your Investment Value

Climate-Specific Maintenance Protocols

Maintenance on a folding door is mostly hardware maintenance. The track is brushed and the drainage slots cleared, the hinges and rollers are checked for smooth travel, and the seals are wiped with a mild pH neutral detergent rather than a solvent. In coastal or dusty environments the hardware is inspected more often, because salt and grit are what wear a roller and stain a track.

Early Warning Signs And Component Replacement

The first signs appear at the track and the hinges. A panel that drops or drags, a door that no longer folds back fully, or a hardware set that has started to squeal all point to adjustment or component replacement rather than to a new door.

Water staining on the internal floor after rain usually traces to the threshold seal or the drainage rather than to the panels, and the seals can be replaced without dismantling the set. Fogging inside a sealed unit means the edge seal has failed, so that unit is replaced rather than repaired.

Performance Enhancement Options

Because the frame, the hardware and the glass set the ceiling, the upgrades worth offering restore or raise those three. Adjusting and, where needed, replacing the roller set brings back smooth folding at low cost, renewing the EPDM seals restores the weather performance, and reglazing with a laminated or low emissive unit raises security or thermal performance without changing the frame.

Disclaimer: Actual performance depends on the test reports for each specific product and on the quality of installation. Results in different climates depend on correct specification and on following the manufacturer instructions.

Conclusion

Specifying a thermal break aluminum bifold door for a wide external opening comes down to four decisions: matching the panel count and stacking direction to the opening width, sizing the track and hinges to the weight of the panels, choosing glazing and sealing that meet the thermal, acoustic and weather target, and resolving the threshold and header detail before the order is released. A reinforced thermal break aluminium frame with 2 to 8 panels, a top hung heavy duty track rated for 100 to 120 kg per panel, multi-layer EPDM sealing and stainless steel hardware covers the majority of villa and hospitality openings, and the difference between a dependable supplier and a commodity vendor is verifiable certification, real customisation capability and logistics support.

FAQ

Q1: How many panels should I order for a given opening width?

A: Panel count follows the clear width and the weight per panel. A two panel set suits a narrow garden door, and four, six or eight panel sets are used as the opening widens, with the system supporting openings up to 55 feet. Since each panel carries 100 to 120 kg, the width should be divided into panels that stay within that load rather than into the fewest panels possible.

Q2: Should the panels stack inward or outward?

A: That depends on what happens on each side of the opening. Inward stacking keeps the facade clean and protects the folded set from weather, while outward stacking keeps the internal floor area clear. The choice also affects where the folded panels can be parked, so it should be decided on the plan rather than on site.

Q3: What glass specification balances weight and thermal performance?

A: Double glazing in a 20 to 32 mm insulated unit balances thermal performance against panel weight, which matters on a folding door because every kilogram is carried by the track. Triple glazing with a low emissive coating is the choice for extreme climates, and laminated glass adds security and ultraviolet protection where that is the priority.

Q4: What are typical lead times and minimum order quantities?

A: With sufficient inventory and established supply chains, delivery is usually 25 to 30 days from order confirmation. Initial orders of 10 to 20 units are accepted with neutral packaging or OEM branding, so a first order can be tested before the volume is increased.

Partner with Haolv Building Materials for Thermal Break Aluminum Bifold Doors

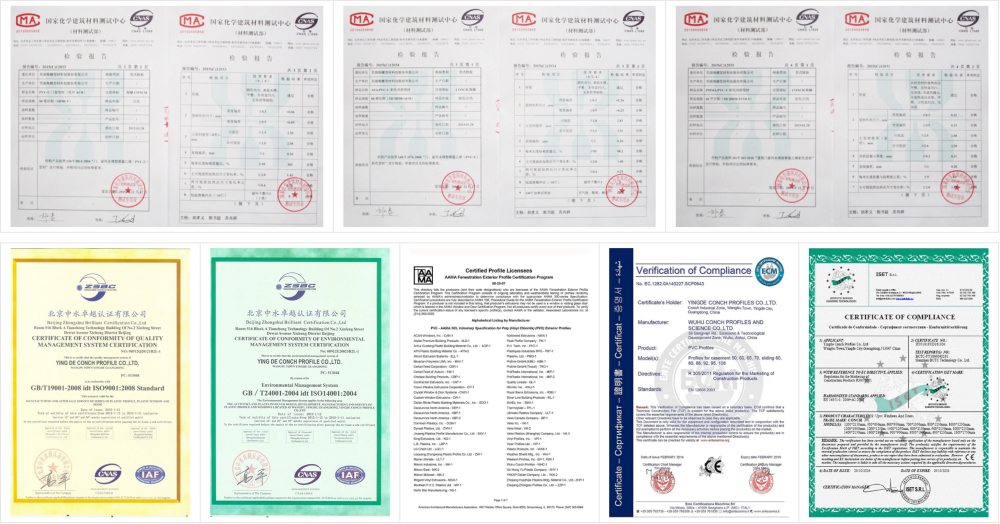

Haolv Building Materials Co., Ltd. has been manufacturing windows and doors for 19 years, and supplies procurement teams who need a dependable thermal break aluminum bifold door supplier. Our ISO, CE and AAMA certified factory in Hunan Province works with CONCH to keep raw material quality consistent, and our 25 to 30 day delivery schedule is supported by integrated supply chain management.

We accept initial orders of 10 to 20 units with neutral packaging or OEM branding, which makes it practical for building material sellers in Africa, South Asia and Eastern Europe to enter the market without committing to a full container. Our engineering team works from your drawings and specifications to configure the panel count, the stacking direction, the glazing, the finish and the hardware, and provides installation guidance and project based technical support. Email us at kristin@haolvwindows.com to discuss your market requirements and request quotes matched to your container plan.

References

1. European Committee for Standardization. (2016). EN 14351-1: Windows and doors — Product standard, performance characteristics.
2. European Committee for Standardization. (2000). EN 12207: Windows and doors — Air permeability — Classification.
3. European Committee for Standardization. (2003). EN 12208: Windows and doors — Watertightness — Classification.
4. European Committee for Standardization. (2003). EN 12210: Windows and doors — Resistance to wind load — Classification.
5. American Architectural Manufacturers Association. (2022). AAMA 101: Voluntary Standard for Aluminum, Vinyl (PVC) and Wood Windows and Glass Doors.
6. International Organization for Standardization. (2015). ISO 9001: Quality management systems — Requirements.
